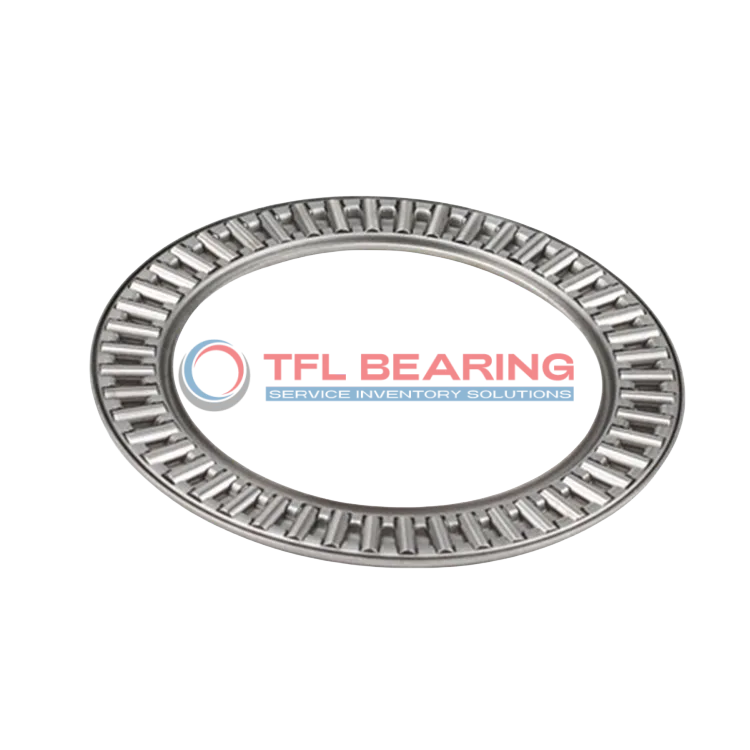

Needle Roller Thrust Bearings (Cages) AXW20

Needle Roller Thrust Bearings (Cages) AXW20

The AXW20 is a needle roller thrust bearing cage with a 20mm bore and 38mm outer diameter, crafted from sturdy steel. It supports thrust loads up to 2948 lbf and can handle speeds up to 10500 RPM, making it suitable for high-performance applications.
Its steel cage and needle rollers ensure durability, while the open design allows for easy lubrication. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.
This model is interchangeable with INA bearings, offering a reliable replacement option. It’s ideal for use in gearboxes, pumps, or other machinery where space is limited but high thrust loads are present.
Compliant with RoHS standards, it’s a safe and efficient choice for industrial use. The lightweight design (just 3.2mm wide) makes it easy to integrate into compact assemblies.
Regular lubrication is recommended to maintain optimal performance. Its ABEC-1 rating ensures decent precision for general industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number AXW20
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 20 mm
  • Outer Dia 38 mm
  • Width 3.2 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Type Cages
  • For Load Direction Thrust
  • Series AXW
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Thrust Load 2948 lbf
  • Static Thrust Load 10462 lbf
  • Max Speed 10500 rpm
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • Allocated Axial Bearing Washer AS2035
Needle Roller Thrust Bearings (Cages) AXW20 dimension drawing
Download DWG Download PDF

Features

Why Choose AXW20 Bearing for Precision Tasks?
AXW20 Bearing features a steel cage and needles, ensuring precise alignment under thrust loads.
Its dynamic thrust load capacity of 2948 lbf makes it suitable for high-performance applications.
The compact design, with a width of just 3.2 mm, allows for efficient use in tight spaces.
AXW20 Bearing operates smoothly at speeds up to 10,500 rpm, balancing speed and durability.
With a temperature range of -30° to 110 °C, it performs reliably in various environments.
Regular lubrication ensures long service life and consistent performance.

Application

Key Fields for AXW20 Bearing
AXW20 Bearing is commonly used in industrial gearboxes, where its compact design handles high thrust loads efficiently. The steel cage ensures durability in demanding conditions.
In automotive applications, AXW20 Bearing fits well in clutch assemblies and transmission systems. Its needle roller design provides smooth operation under heavy axial forces.
For automation equipment, AXW20 Bearing supports precise movements in robotic arms and linear guides. The ABEC-1 rating ensures reliable performance for moderate precision needs.
Medical devices like dental drills benefit from AXW20 Bearing’s high-speed capabilities. The steel construction offers longevity even with frequent sterilisation cycles.
Household appliances such as washing machines use AXW20 Bearing for its quiet operation. The metric sizing makes it easy to replace in European-made models.
