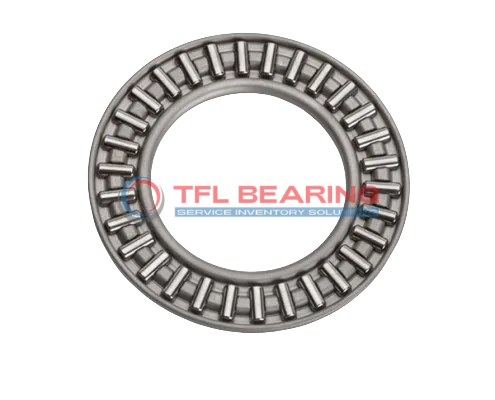

Needle Roller Thrust Bearings (Cages) AXK80105

Needle Roller Thrust Bearings (Cages) AXK80105

The AXK80105 is a needle roller thrust bearing with an 80mm bore and 105mm outer diameter, designed for heavy thrust loads. It handles dynamic loads up to 12600 lbf and static loads up to 63000 lbf, making it sturdy for demanding applications.

Its steel cage and needle rollers ensure durability, while the slim 4mm width saves space in compact designs. The bearing requires regular lubrication to maintain smooth operation at speeds up to 3100 RPM.

This model is interchangeable with INA bearings, offering flexibility for replacements. It performs well in temperatures from -30°C to 110°C, suitable for industrial machinery or automotive systems.

Compliant with RoHS standards, it’s a reliable choice for engineers and maintenance teams. The ABEC-1 rating ensures consistent performance for general-purpose use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number AXK80105
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 80 mm
  • Bore Dia Tolerance 0.06mm to 0.250mm
  • Outer Dia 105 mm
  • Outer Dia Tolerance -0.530mm to -0.180mm
  • Width 4 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Type Cages
  • For Load Direction Thrust
  • Series AXK&TC
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Thrust Load 12600 lbf
  • Static Thrust Load 63000 lbf
  • Max Speed 3100 rpm
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • Allocated Axial Bearing Washer AS80105
Needle Roller Thrust Bearings (Cages) AXK80105 dimension drawing
Download DWG Download PDF

Features

How Does AXK80105 Bearing Handle Heavy Thrust Loads?
AXK80105 Bearing features steel cages and needles, designed to withstand high thrust loads with a dynamic capacity of 12,600 lbf.
Its robust construction ensures reliable performance in demanding applications, even at speeds up to 3,100 rpm.
The precise tolerances of AXK80105 Bearing contribute to its smooth operation and extended service life.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.
AXK80105 Bearing requires lubrication, ensuring optimal performance and reduced wear over time.
Its compatibility with INA models makes it a versatile choice for different setups.

Application

Key Fields for AXK80105 Bearing
AXK80105 Bearing is commonly used in industrial gearboxes, where its high thrust load capacity handles heavy axial forces efficiently. The steel cage and needle rollers ensure durability in demanding conditions.
In automotive applications, AXK80105 Bearing fits well in clutch assemblies and transmission systems, providing reliable performance under constant thrust. Its metric sizing makes it a versatile choice for various vehicle designs.
For automation equipment, AXK80105 Bearing supports precise linear motion in robotic arms and conveyor systems. The required lubrication helps maintain smooth operation over long periods.
Medical devices like surgical tools benefit from AXK80105 Bearing’s consistent performance and steel construction. Its compact width allows for integration into space-sensitive designs.
In household appliances, AXK80105 Bearing can be found in washing machines and dishwashers, where it handles axial loads quietly. The ABEC-1 rating ensures adequate precision for everyday use.
