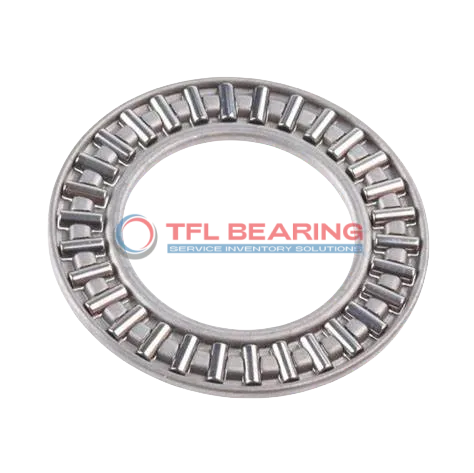

Needle Roller Thrust Bearings (Cages) AXK4565

Needle Roller Thrust Bearings (Cages) AXK4565

The AXK4565 is a needle roller thrust bearing cage with a 45mm bore and 65mm outer diameter, crafted from sturdy steel. It manages thrust loads up to 6750 lbf and operates smoothly at speeds up to 5100 RPM.
Its steel needle rollers and cage provide reliable performance, while the design requires regular lubrication for optimal use. The bearing works efficiently in temperatures ranging from -30°C to 110°C.
This model is interchangeable with INA bearings, offering a practical replacement option. Suitable for applications like transmissions or heavy machinery where high thrust loads are expected.
With a slim 3mm width, it fits into compact spaces without sacrificing strength. Compliant with RoHS standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number AXK4565
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 45 mm
  • Bore Dia Tolerance 0.05mm to 0.210mm
  • Outer Dia 65 mm
  • Outer Dia Tolerance -0.440mm to -0.140mm
  • Width 3 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Type Cages
  • For Load Direction Thrust
  • Series AXK&TC
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Thrust Load 6750 lbf
  • Static Thrust Load 28800 lbf
  • Max Speed 5100 rpm
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • Allocated Axial Bearing Washer AS4565
Needle Roller Thrust Bearings (Cages) AXK4565 dimension drawing
Download DWG Download PDF

Features

Performance Features of AXK4565 Bearing
AXK4565 Bearing is built with steel cages and needles, offering strong resistance to thrust loads.
Its dynamic thrust load capacity reaches 6750 lbf, making it suitable for high-demand applications.
The steel construction ensures durability, even under continuous heavy loads.
With a maximum speed of 5100 rpm, it maintains reliable performance in various conditions.
AXK4565 Bearing operates within a temperature range of -30° to 110°C, adapting to different environments.
Regular lubrication helps maintain smooth operation and extends its service life.

Application

Key Fields for AXK4565 Bearing
AXK4565 Bearing is commonly used in industrial gearboxes, where its compact design handles high thrust loads efficiently. The steel cage ensures durability in demanding environments like conveyor systems.
Where Is AXK4565 Bearing Used?
In automotive applications, AXK4565 Bearing fits well in clutch assemblies and transmission systems. Its metric sizing makes it versatile for various vehicle models.
Built for Heavy-Duty Use: AXK4565 Bearing
This bearing excels in construction equipment, supporting axial loads in machinery like hydraulic pumps. The steel needles provide reliable performance under stress.
Medical vs Industrial: Where AXK4565 Bearing Excels
While not typical for medical devices, AXK4565 Bearing shines in industrial settings like printing presses. Its high-speed capability suits precision machinery.
Perfect Fit for Automation: AXK4565 Bearing
In robotic arms, AXK4565 Bearing offers smooth movement for precise operations. The required lubrication ensures long-term performance in automated systems.
