Needle Roller Thrust Bearings (Cages) AXK2035

Needle Roller Thrust Bearings (Cages) AXK2035

The AXK2035 is a needle roller thrust bearing with a 20mm bore and 35mm outer diameter, designed for thrust loads. It handles dynamic loads up to 2948 lbf and spins smoothly at speeds up to 10500 RPM.
Made from sturdy steel, this cage-type bearing is durable and reliable. Its slim 2mm width makes it ideal for compact spaces where axial loads are present.
Regular lubrication is needed to maintain performance. Suitable for temperatures from -30°C to 110°C, it works well in various industrial settings.
Interchangeable with INA bearings, it’s a practical choice for replacements. Commonly used in gearboxes or machinery with high axial loads. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number AXK2035
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 20 mm
  • Bore Dia Tolerance 0.04mm to 0.170mm
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.370mm to -0.120mm
  • Width 2 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Type Cages
  • For Load Direction Thrust
  • Series AXK&TC
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Thrust Load 2948 lbf
  • Static Thrust Load 10462 lbf
  • Max Speed 10500 rpm
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • Allocated Axial Bearing Washer AS2035

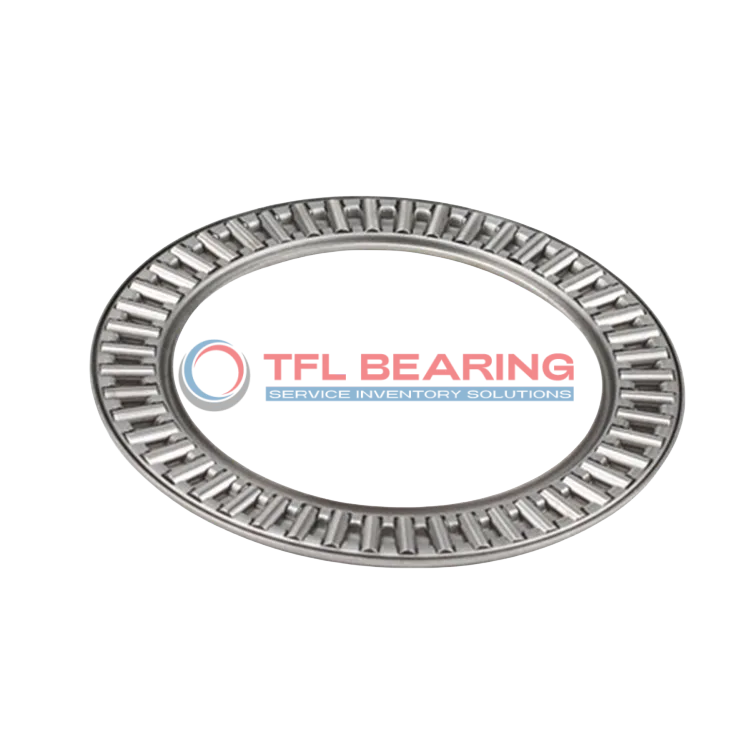

Needle Roller Thrust Bearings (Cages) AXK2035 dimension drawing
Download DWG Download PDF

Features

Why Choose AXK2035 Bearing for Precision Tasks?
AXK2035 Bearing features a steel cage and needle rollers, ensuring precise handling of thrust loads.
Its dynamic thrust load capacity of 2948 lbf makes it suitable for high-performance applications.
The compact 2 mm width allows for space-saving installations without compromising strength.
With a maximum speed of 10,500 rpm, it delivers reliable performance in demanding conditions.
AXK2035 Bearing operates efficiently within a temperature range of -30° to 110 °C.
Its steel construction provides durability, making it a practical choice for various industrial uses.

Application

Essential Roles of AXK2035 Bearing
AXK2035 Bearing is commonly used in industrial gearboxes, where its compact design handles high thrust loads efficiently. The steel cage ensures durability, making it suitable for continuous operation in demanding environments.
In automotive applications, AXK2035 Bearing fits well in clutch release mechanisms and transmission systems. Its high-speed capability and load capacity contribute to smoother gear shifts and longer component life.
For automation equipment, AXK2035 Bearing supports precise linear motion in robotic arms and assembly lines. The needle roller design reduces friction, enhancing performance in repetitive tasks.
Medical devices like dental drills benefit from AXK2035 Bearing’s reliability and low maintenance needs. Its steel construction meets hygiene standards while enduring frequent sterilisation cycles.
Household appliances such as washing machines use AXK2035 Bearing in their spin cycles. The bearing’s ability to handle axial loads ensures quiet and efficient operation over time.
