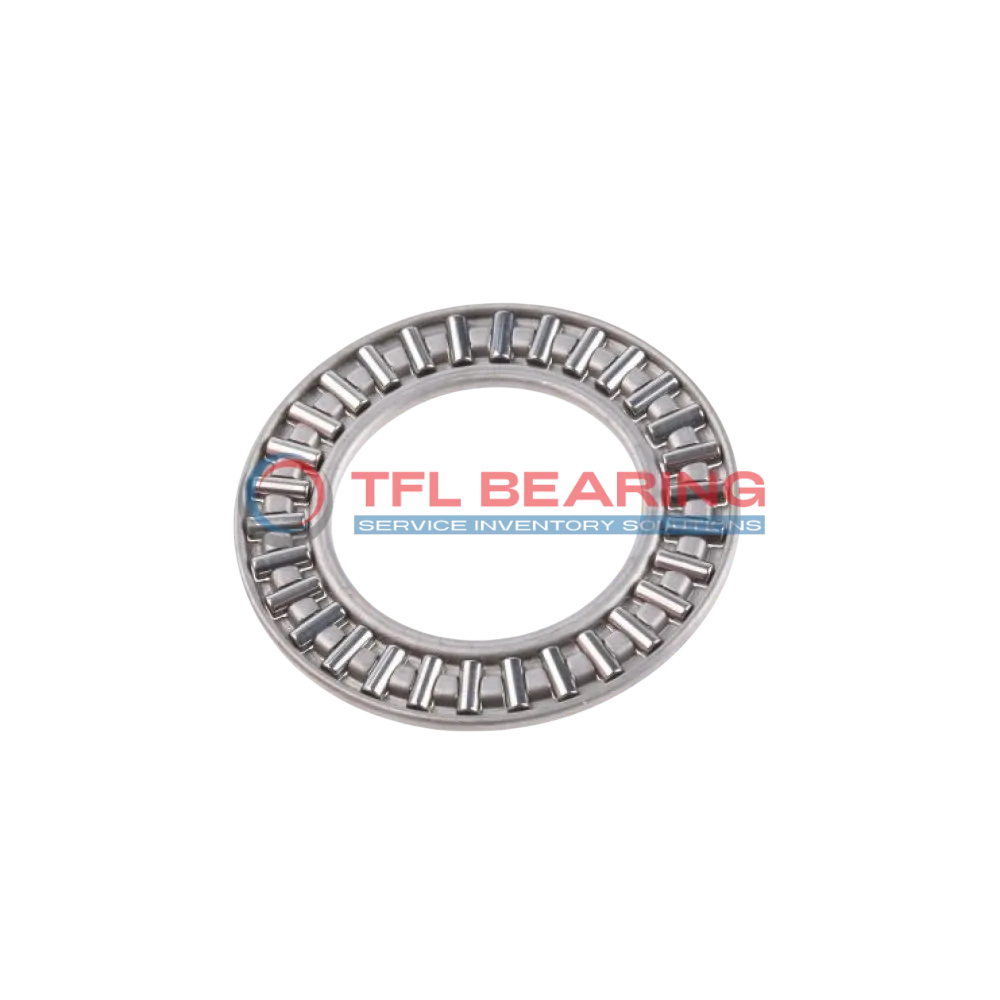

Needle Roller Thrust Bearings (Cages) AXK0619-TV

Needle Roller Thrust Bearings (Cages) AXK0619-TV

The AXK0619-TV is a needle roller thrust bearing with a 6mm bore and 19mm outer diameter, designed for axial loads. Its compact 2mm width makes it suitable for tight spaces, while handling thrust loads up to 1530 lbf.
The PA66 cage and steel needles ensure smooth operation at speeds up to 18,900 RPM. Regular lubrication is needed for optimal performance, especially in temperatures ranging from -30°C to 110°C.
This bearing is interchangeable with INA models, offering flexibility for replacements. It’s ideal for applications like small gearboxes or machinery where space is limited but high thrust capacity is required.
Compliant with RoHS standards, it’s a reliable choice for industrial use. The ABEC-1 rating ensures consistent performance for general applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number AXK0619-TV
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 6 mm
  • Bore Dia Tolerance 0.02mm to 0.095mm
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.320mm to -0.110mm
  • Width 2 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Type Cages
  • For Load Direction Thrust
  • Series AXK&TC
  • Cage Material PA66
  • Needle Material Steel
  • Dynamic Thrust Load 1530 lbf
  • Static Thrust Load 3488 lbf
  • Max Speed 18900 rpm
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • Allocated Axial Bearing Washer AS0619
Needle Roller Thrust Bearings (Cages) AXK0619-TV dimension drawing
Download DWG Download PDF

Features

How Does AXK0619-TV Bearing Handle High-Speed Applications?
AXK0619-TV Bearing features a PA66 cage and steel needles, designed for efficient thrust load handling.
Its dynamic thrust load capacity of 1530 lbf ensures steady performance in high-speed conditions.
The bearing operates smoothly at speeds up to 18,900 rpm, making it suitable for demanding applications.
With a temperature range of -30° to 110°C, AXK0619-TV Bearing adapts well to varying environments.
Its compact design, at just 2 mm width, allows for easy integration into tight spaces.
The ABEC-1 rating ensures reliable precision for general industrial use.

Application

Industrial Uses of AXK0619-TV Bearing
AXK0619-TV Bearing is commonly used in industrial gearboxes, where its compact design and high thrust load capacity make it ideal for tight spaces. The steel needles and PA66 cage ensure durability even in demanding conditions.
Where Is AXK0619-TV Bearing Used?
You’ll often find AXK0619-TV Bearing in automotive transmissions, where it handles axial loads smoothly. Its metric sizing and compatibility with INA bearings make it a versatile choice for various vehicle models.
Built for Heavy-Duty Use: AXK0619-TV Bearing
AXK0619-TV Bearing excels in conveyor systems, supporting heavy loads with minimal friction. The required lubrication helps maintain performance over long operational periods.
Automotive vs Aerospace: Applications of AXK0619-TV Bearing
In automotive applications, AXK0619-TV Bearing is perfect for clutch assemblies, while its precision suits aerospace actuators. The temperature range ensures reliability in diverse environments.
Perfect Fit for Automation: AXK0619-TV Bearing
AXK0619-TV Bearing works well in robotic arms, providing smooth movement under thrust loads. The ABEC-1 rating balances precision and cost for automated systems.
