Needle Roller Thrust Bearing Washers TWD613

Needle Roller Thrust Bearing Washers TWD613

The TWD613 needle roller thrust bearing washers are small yet sturdy, with a 0.375″ bore and 0.813″ outer diameter. Made from spring steel, they handle temperatures from -30°C to 110°C, making them versatile for various conditions.
These washers are designed to work with needle roller bearings, providing smooth operation under thrust loads. Their precise tolerances ensure a reliable fit, while the lightweight design (just 7g) makes them easy to handle.
Interchangeable with INA models, they offer a practical replacement option. Ideal for compact machinery or automotive applications where space and durability are key.
Compliant with RoHS standards, they are safe for use in environmentally sensitive settings. A simple, effective solution for thrust bearing assemblies.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number TWD613
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.375"
  • Bore Dia Tolerance 0.025mm to 0.175mm
  • Outer Dia 0.813"
  • Outer Dia Tolerance -0.370mm to -0.04mm
  • Width 0.126"
  • System of Measurement Inch
  • Roller Bearing Type Needle
  • Type Washers
  • Material Spring Steel
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Weight 7 g

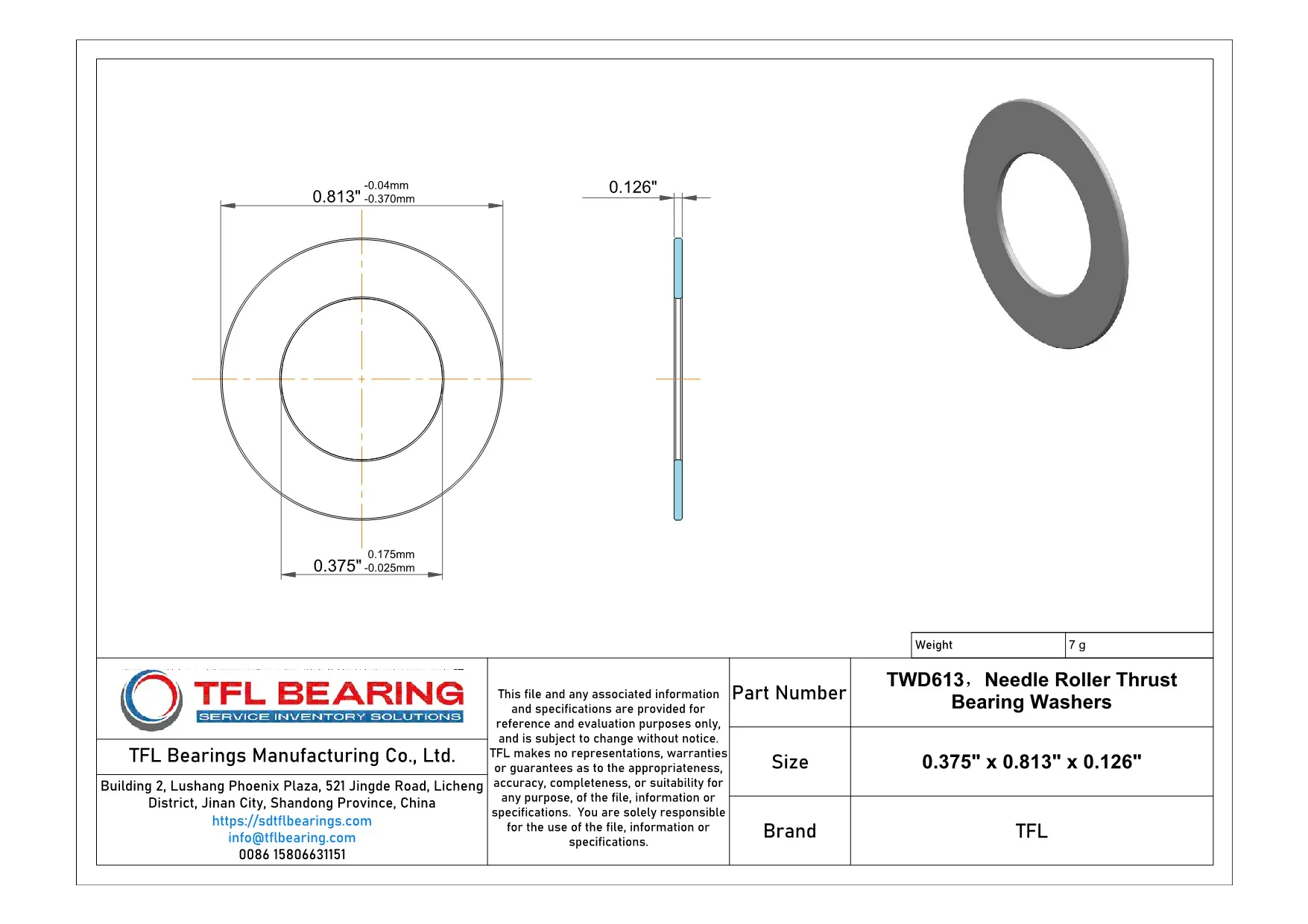

Needle Roller Thrust Bearing Washers TWD613 dimension drawing
Download DWG Download PDF

Features

Why Choose TWD613 Bearing for Precision Tasks?
TWD613 Bearing is crafted from spring steel, offering a balance of strength and flexibility for precise applications.
Its needle roller design ensures efficient load distribution, making it ideal for compact spaces.
The bearing operates smoothly within a temperature range of -30° to 110°C, suitable for various environments.
With a lightweight design at just 7 grams, it adds minimal weight while maintaining performance.
TWD613 Bearing’s tight tolerances ensure consistent operation, reducing the need for frequent adjustments.
Its compatibility with INA models makes it a versatile choice for replacements or upgrades.

Application

Industrial Uses of TWD613 Bearing
TWD613 Bearing is commonly used in industrial settings, especially in machinery that requires compact thrust solutions, like gearboxes and pumps. Its spring steel construction offers durability while maintaining a lightweight profile.
Where Is TWD613 Bearing Used?
You’ll often spot TWD613 Bearing in automotive applications, such as clutch assemblies and transmission systems. Its inch sizing makes it a handy fit for many North American and UK-made vehicles.
Built for Heavy-Duty Use: TWD613 Bearing
In automation equipment, TWD613 Bearing provides reliable support for linear motion systems and robotic arms. The needle roller design ensures smooth operation even under high axial loads.
Medical vs Industrial: Where TWD613 Bearing Excels
While TWD613 Bearing isn’t typically used in medical devices, it shines in industrial tools like compressors and small engines. Its precise tolerances make it ideal for applications demanding consistent performance.
Perfect Fit for Automation: TWD613 Bearing
For consumer electronics like printers or small appliances, TWD613 Bearing offers a compact solution for moving parts. Its lightweight design helps reduce overall device weight without sacrificing reliability.
