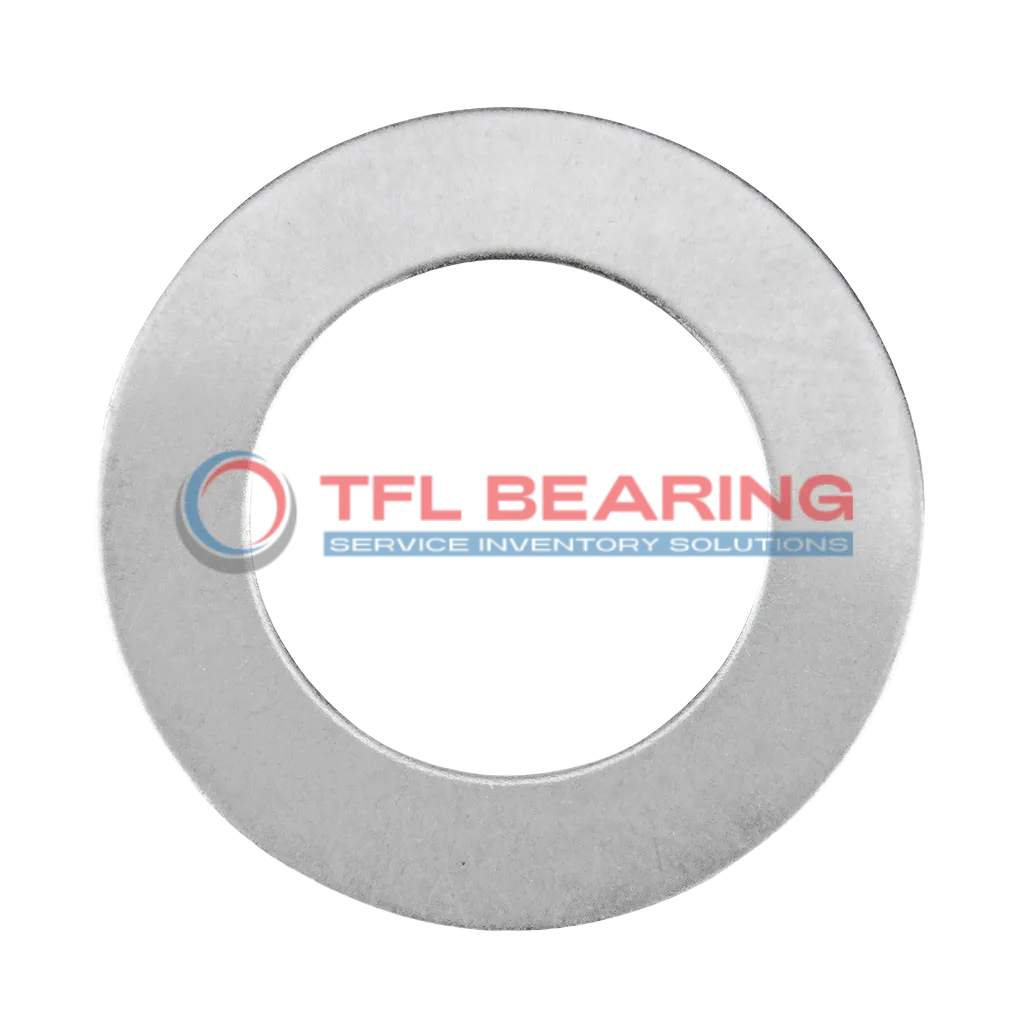

Needle Roller Thrust Bearing Washers TWD3244

Needle Roller Thrust Bearing Washers TWD3244

The TWD3244 needle roller thrust bearing washers are designed for a 2-inch bore and 2.75-inch outer diameter, crafted from resilient spring steel. They handle moderate loads and operate smoothly in temperatures ranging from -30°C to 110°C.
With a slim width of just 0.126 inches, these washers fit snugly in compact spaces. Their precise tolerances ensure reliable performance in demanding applications.
These washers are interchangeable with INA models, offering a cost-effective alternative. Ideal for use in gearboxes, transmissions, or other machinery where space is limited.
Weighing only 45 grams, they are lightweight yet durable. Compliant with RoHS standards for environmentally friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number TWD3244
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 2"
  • Bore Dia Tolerance 0.06mm to 0.360mm
  • Outer Dia 2.75"
  • Outer Dia Tolerance -0.520mm to -0.06mm
  • Width 0.126"
  • System of Measurement Inch
  • Roller Bearing Type Needle
  • Type Washers
  • Material Spring Steel
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Weight 45 g
Needle Roller Thrust Bearing Washers TWD3244 dimension drawing
Download DWG Download PDF

Features

How Is TWD3244 Bearing Engineered for Reliability?
TWD3244 Bearing washers are crafted from durable spring steel, ensuring resilience under high thrust loads.
The precise bore and outer diameter tolerances allow for a perfect fit in various applications.
With a temperature range of -30° to 110°C, TWD3244 Bearing performs reliably in diverse environments.
Its lightweight design at just 45 grams makes it easy to handle without compromising strength.
The needle roller design reduces friction, enhancing efficiency and longevity.
Compliant with RoHS standards, it meets stringent environmental and safety requirements.

Application

Where Is TWD3244 Bearing Used?
TWD3244 Bearing is commonly seen in industrial gearboxes, where its needle roller design efficiently handles high radial loads in compact spaces. The spring steel construction ensures durability even in demanding environments.
In automotive applications, TWD3244 Bearing works well in transmission systems, providing smooth operation under heavy loads. Its inch sizing makes it a convenient choice for American and British vehicle models.
For automation equipment, TWD3244 Bearing’s slim profile fits seamlessly into robotic arms and conveyor mechanisms. The precise tolerances help maintain accuracy in repetitive movements.
You’ll also find TWD3244 Bearing in printing machinery, where its reliability keeps production lines running smoothly. The lightweight design doesn’t compromise on strength, making it a versatile option.
