Needle Roller Thrust Bearing Washers TWC1427

The TWC1427 needle roller thrust bearing washers are small components with a 0.875″ bore and 1.688″ outer diameter, crafted from spring steel for durability. They fit snugly with a width of just 0.092″, making them ideal for compact spaces.
These washers handle moderate loads and work well in temperatures ranging from -30°C to 110°C. Their spring steel construction ensures resilience under pressure, while the precise tolerances guarantee a secure fit.
Designed for use with needle roller bearings, they are interchangeable with INA models for easy replacement. Perfect for applications like automotive transmissions or small machinery where space is limited.
Weighing only 19g, they are lightweight yet sturdy. Compliant with RoHS standards, they are safe for various industrial uses.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number TWC1427
Brand TFL
Interchangeable INA
Bore Dia 0.875"
Bore Dia Tolerance 0.04mm to 0.25mm
Outer Dia 1.688"
Outer Dia Tolerance -0.440mm to -0.05mm
Width 0.092"
System of Measurement Inch
Roller Bearing Type Needle
Type Washers
Material Spring Steel
Temperature Range -30° to 110 °C
RoHS Compliant
Weight 19 g

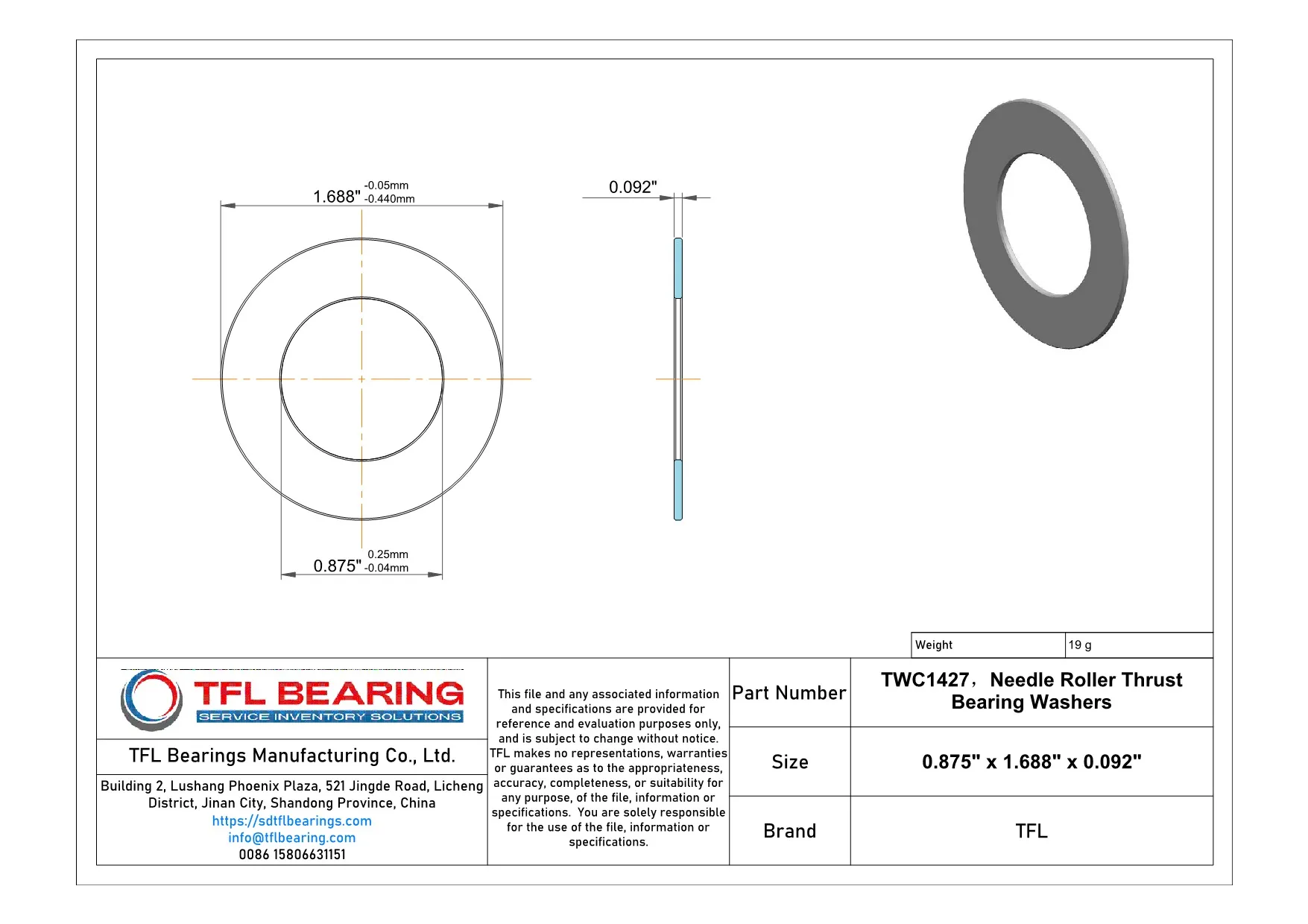

Needle Roller Thrust Bearing Washers TWC1427 dimension drawing

Download DWG Download PDF

Features

How Is TWC1427 Bearing Engineered for Reliability?
TWC1427 Bearing features spring steel construction, offering durability and resistance to wear in thrust applications.
Its precise dimensions ensure a snug fit, reducing misalignment risks during operation.
The needle roller design maximises load distribution, enhancing performance under pressure.
With a temperature range of -30° to 110°C, it remains reliable in varied working conditions.

Application

Common Applications of TWC1427 Bearing
TWC1427 Bearing is widely used in industrial settings, especially in machinery where space is limited but high load capacity is needed, such as compact gearboxes. Its spring steel construction ensures durability even in demanding conditions.
In automotive applications, TWC1427 Bearing fits well in transmission systems and clutch mechanisms, providing smooth operation under thrust loads. The inch sizing makes it compatible with many North American vehicle designs.
For automation equipment, TWC1427 Bearing’s needle roller design offers precise movement in robotic arms and assembly lines. Its lightweight nature helps reduce overall system weight without sacrificing performance.
Where Is TWC1427 Bearing Used?
You’ll often find TWC1427 Bearing in household appliances like washing machines, where it supports rotating parts quietly and efficiently. Its small profile makes it ideal for tight spaces.
In medical devices, TWC1427 Bearing’s reliable performance is key for equipment like dental drills, ensuring smooth operation during procedures. The spring steel material resists wear over time.
Built for Heavy-Duty Use: TWC1427 Bearing
TWC1427 Bearing handles heavy loads in construction equipment, such as compactors and excavators, without compromising performance. Its robust design suits harsh working environments.
The bearing’s tolerance range makes it a good fit for precision instruments, where consistent performance is essential. Its compatibility with INA models adds to its versatility.
Automotive vs Aerospace: Applications of TWC1427 Bearing
In automotive systems, TWC1427 Bearing is commonly used in steering columns, offering reliable support under frequent movement. Its inch measurements align with standard automotive parts.
For aerospace applications, TWC1427 Bearing’s lightweight design is beneficial in auxiliary systems, though its primary use remains ground-based machinery. The temperature range suits various operating conditions.
