Needle Roller Thrust Bearing Washers TWB2233

Needle Roller Thrust Bearing Washers TWB2233

The TWB2233 needle roller thrust bearing washers are small yet sturdy, with a 1.375″ bore and 2.063″ outer diameter, crafted from spring steel for resilience. They handle moderate loads and operate smoothly in temperatures from -30°C to 110°C.
Their thin 0.063″ width makes them ideal for tight spaces, while the precise tolerances ensure a reliable fit. The spring steel material offers good wear resistance over time.
These washers are interchangeable with INA models, simplifying replacements. Perfect for applications like automotive assemblies or small machinery where space is limited.
Weighing just 15g, they’re lightweight and easy to handle. Compliant with RoHS standards for safe use in various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number TWB2233
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 1.375"
  • Bore Dia Tolerance 0.05mm to 0.3mm
  • Outer Dia 2.063"
  • Outer Dia Tolerance -0.520mm to -0.06mm
  • Width 0.063"
  • System of Measurement Inch
  • Roller Bearing Type Needle
  • Type Washers
  • Material Spring Steel
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Weight 15 g

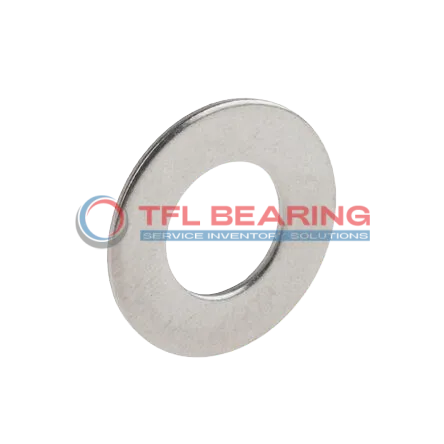

Needle Roller Thrust Bearing Washers TWB2233 dimension drawing
Download DWG Download PDF

Features

How Is TWB2233 Bearing Engineered for Reliability?
TWB2233 Bearing is crafted from high-quality spring steel, ensuring durability and resistance to wear.
Its precise dimensions, with a bore diameter of 1.375″ and outer diameter of 2.063″, provide a reliable fit for various applications.
The needle roller design enhances load distribution, improving performance under thrust loads.
With a temperature range of -30° to 110°C, it remains functional in diverse environmental conditions.
TWB2233 Bearing’s lightweight design at just 15 grams makes it easy to handle without compromising strength.
Its compatibility with INA bearings adds versatility, simplifying replacements and maintenance.

Application

Key Fields for TWB2233 Bearing
TWB2233 Bearing is commonly used in industrial gearboxes, where its needle roller design efficiently handles high radial loads in compact spaces. The spring steel construction ensures durability even in demanding environments.
In automotive applications, TWB2233 Bearing works well in transmission systems, providing smooth operation under heavy loads. Its inch sizing makes it a good fit for many American and British vehicle models.
For automation equipment, TWB2233 Bearing’s thin profile suits precision mechanisms like robotic arms. The material choice balances strength and flexibility for long service life.
Around the home, TWB2233 Bearing can be found in power tools where space-saving design matters. Its temperature tolerance allows reliable performance during extended use.
