Needle Roller Thrust Bearing Washers AS7095

Needle Roller Thrust Bearing Washers AS7095

The AS7095 needle roller thrust bearing washers are slim, just 1mm thick, with a 70mm bore and 95mm outer diameter. Made from spring steel, they offer reliable strength in compact spaces.
These washers handle high thrust loads efficiently, thanks to their needle roller design. They perform consistently in temperatures ranging from -30°C to 110°C.
Their precise tolerances ensure a snug fit, reducing wear over time. Interchangeable with INA models, they simplify replacements.
Ideal for tight spaces in gearboxes or automotive applications where durability matters. Lightweight at 25g, they meet RoHS standards for safety.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number AS7095
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 70 mm
  • Bore Dia Tolerance 0.06mm to 0.360mm
  • Outer Dia 95 mm
  • Outer Dia Tolerance -0.612mm to -0.072mm
  • Width 1 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Type Washers
  • Material Spring Steel
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Weight 25 g

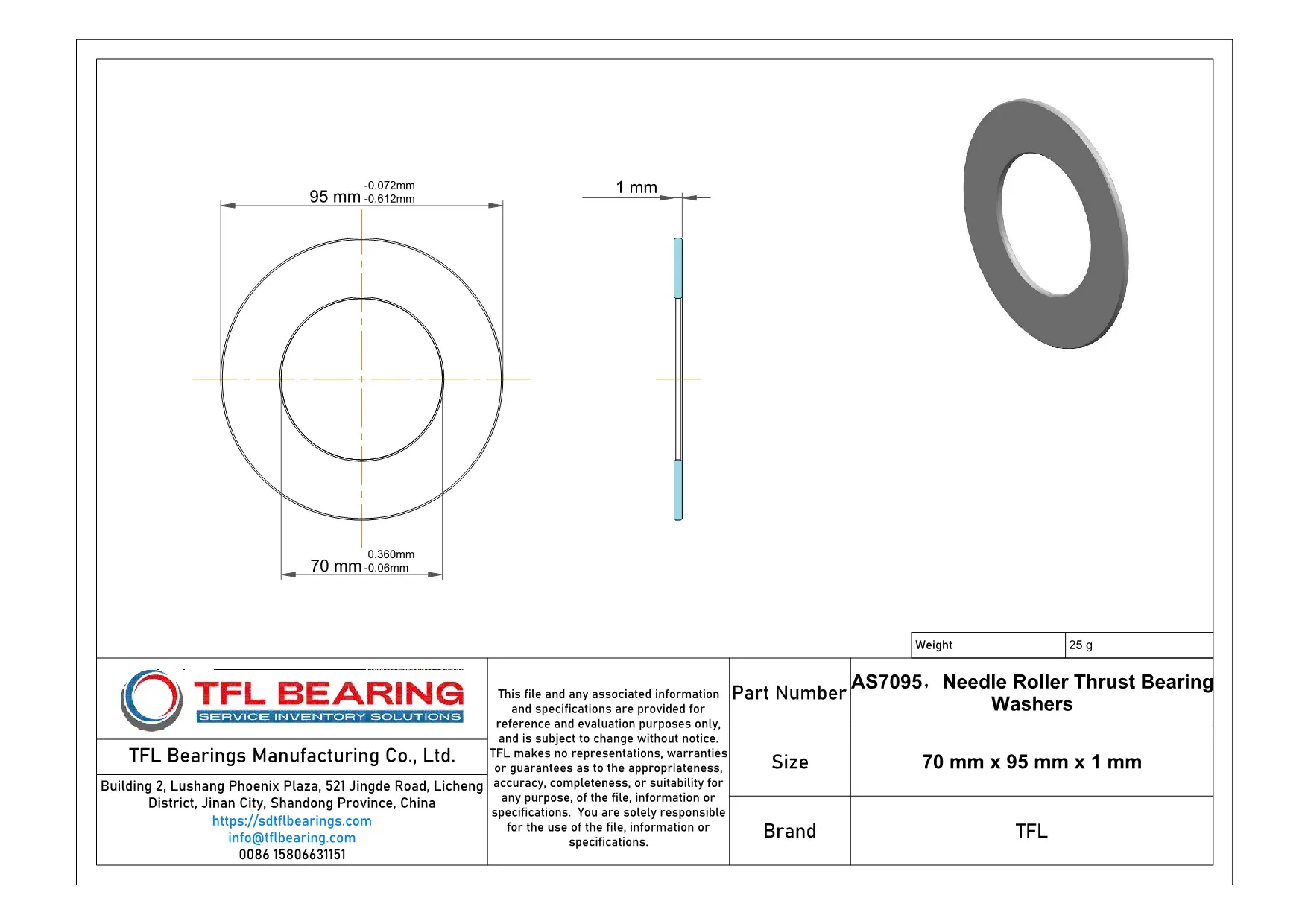

Needle Roller Thrust Bearing Washers AS7095 dimension drawing
Download DWG Download PDF

Features

Why Choose AS7095 Bearing for Precision Tasks?
AS7095 Bearing is crafted from spring steel, offering excellent durability and resistance to wear.
Its precise dimensions, with a bore diameter of 70 mm and outer diameter of 95 mm, ensure accurate fitment.
The needle roller design provides high load capacity in a compact space, ideal for precision applications.
With a temperature range of -30° to 110 °C, it performs reliably in varied conditions.
AS7095 Bearing’s lightweight design at just 25 g makes it suitable for applications where weight is a concern.
Its RoHS compliance ensures it meets environmental standards without compromising performance.

Application

Common Applications of AS7095 Bearing
AS7095 Bearing is widely used in industrial gearboxes, where its thin profile and high load capacity make it ideal for compact designs. The spring steel material ensures durability even in high-stress environments.
In automotive transmissions, AS7095 Bearing helps manage axial loads efficiently, contributing to smoother gear shifts. Its metric dimensions make it a versatile choice for various vehicle models.
For small machinery like printers, AS7095 Bearing’s lightweight design and precision fit enhance operational reliability. The needle roller construction provides excellent load distribution in tight spaces.
Medical devices such as lab equipment benefit from AS7095 Bearing’s consistent performance and corrosion resistance. Its compliance with RoHS standards ensures safety in sensitive applications.
