Needle Roller And Cage Assemblies K95X103X40-ZW

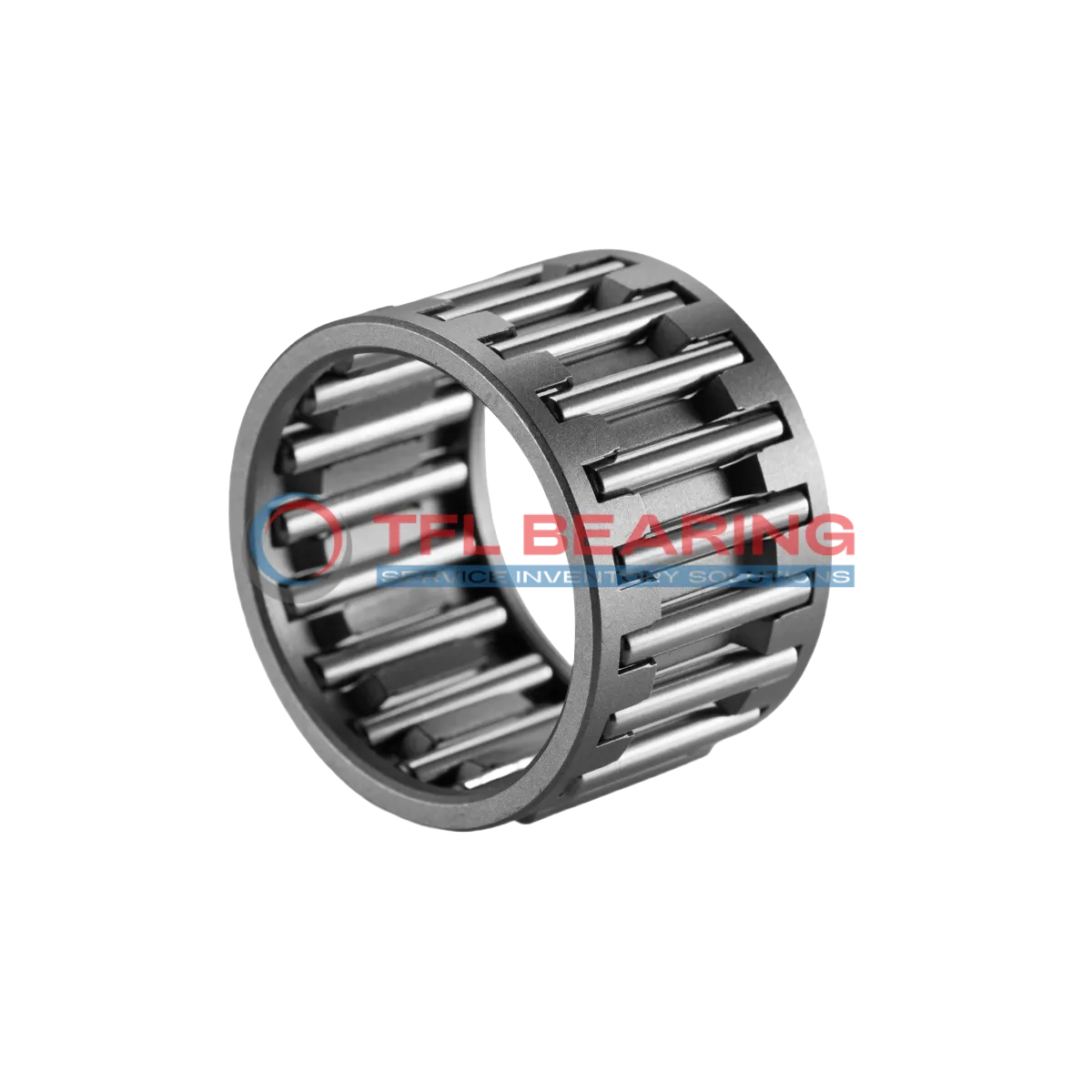

Needle Roller And Cage Assemblies K95X103X40-ZW

The K95X103X40-ZW is a double-row needle roller and cage assembly with a 95mm bore and 103mm outer diameter, crafted from sturdy steel. It supports radial loads up to 18675 lbf and operates smoothly at speeds up to 5000 RPM.
Its steel cage and needles ensure durability, while the compact 40mm width fits into tight spaces. The assembly performs reliably in temperatures ranging from -30°C to 110°C.
This model is interchangeable with INA bearings, offering a practical replacement option. It’s well-suited for applications like gearboxes or automotive components where high radial loads are present.
Weighing just 266g, it’s lightweight yet robust for heavy-duty use. Compliant with RoHS standards for safe and eco-friendly operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K95X103X40-ZW
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 95 mm
  • Outer Dia 103 mm
  • Width 40 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Double Row
  • Series K-ZW Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 18675 lbf
  • Static Radial Load 51300 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 5000 rpm
  • Weight 266 g
Needle Roller And Cage Assemblies K95X103X40-ZW dimension drawing
Download DWG Download PDF

Features

How Does K95X103X40-ZW Bearing Handle Heavy Loads?
K95X103X40-ZW Bearing features a double-row needle roller design, offering high load capacity in compact spaces.
Its steel cage and needles ensure durability under dynamic radial loads up to 18,675 lbf.
The construction allows for smooth operation even at speeds reaching 5,000 rpm.
With a static radial load capacity of 51,300 lbf, it suits demanding industrial applications.
K95X103X40-ZW Bearing performs reliably in temperatures ranging from -30° to 110°C.
Its lightweight design at 266 grams ensures easy handling without compromising strength.

Application

Industrial Uses of K95X103X40-ZW Bearing
K95X103X40-ZW Bearing is commonly used in heavy machinery, such as construction equipment and hydraulic pumps, where its double-row design handles high radial loads efficiently. The steel cage and needles ensure durability even in demanding conditions.
What Makes K95X103X40-ZW Bearing a Preferred Choice?
In automotive applications, K95X103X40-ZW Bearing fits well in gearboxes and drivetrains, offering smooth performance under high-speed rotations. Its metric sizing makes it a versatile option for various vehicle designs.
Built for Heavy-Duty Use: K95X103X40-ZW Bearing
For automation systems, K95X103X40-ZW Bearing works reliably in robotic arms and conveyor belts, thanks to its robust construction. The high dynamic load capacity ensures long service life in continuous operations.
Medical vs Industrial: Where K95X103X40-ZW Bearing Excels
While K95X103X40-ZW Bearing isn’t typically used in medical devices, it shines in industrial settings like printing presses and packaging machines. Its precision and load-bearing capacity make it ideal for repetitive tasks.
Where to Use K95X103X40-ZW Bearing
In consumer electronics, K95X103X40-ZW Bearing can be found in high-performance appliances like industrial fans, where its low maintenance and high-speed capability are valued. The compact design fits well in space-constrained applications.
