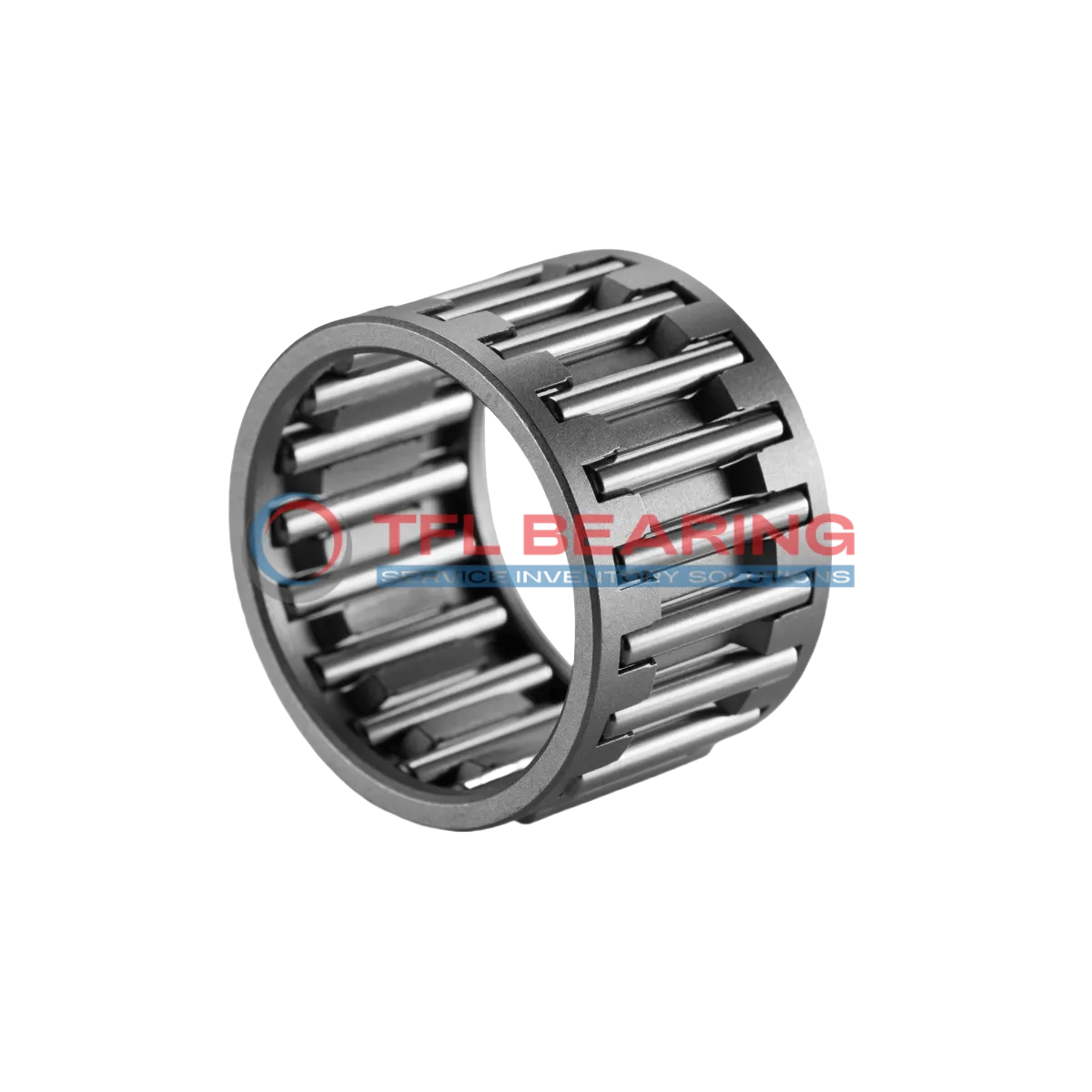

Needle Roller And Cage Assemblies K90X98X27

Needle Roller And Cage Assemblies K90X98X27

The K90X98X27 is a needle roller and cage assembly with a 90mm bore and 98mm outer diameter, crafted from sturdy steel. It handles radial loads up to 13725 lbf and operates smoothly at speeds up to 5200 RPM.
Its single-row design with a steel cage ensures durability and efficient performance. The assembly works well in temperatures ranging from -30°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for applications like gearboxes or automotive systems where space is limited but high load capacity is needed.
Weighing just 150g, it’s lightweight yet robust for its size. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K90X98X27
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 90 mm
  • Outer Dia 98 mm
  • Width 27 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 13725 lbf
  • Static Radial Load 33750 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 5200 rpm
  • Weight 150 g
Needle Roller And Cage Assemblies K90X98X27 dimension drawing
Download DWG Download PDF

Features

How Does K90X98X27 Bearing Handle Heavy Loads?
K90X98X27 Bearing is built with steel needles and a steel cage, offering robust resistance to high radial loads.
Its dynamic radial load capacity reaches 13725 lbf, making it suitable for demanding industrial applications.
The single-row construction ensures stability and efficient load distribution.
With a maximum speed of 5200 rpm, it delivers reliable performance in various operating conditions.
K90X98X27 Bearing operates within a temperature range of -30° to 110°C, ensuring versatility in different environments.
Its compact design and lightweight construction (150 g) make it easy to integrate into machinery.

Application

Common Applications of K90X98X27 Bearing
K90X98X27 Bearing is widely used in industrial gearboxes, where its compact design and high load capacity make it ideal for space-constrained applications. The steel construction ensures durability even in demanding environments.
In automotive transmissions, K90X98X27 Bearing handles high radial loads smoothly, contributing to efficient power transfer. Its metric sizing makes it a versatile choice for various vehicle models.
For automation systems, K90X98X27 Bearing provides reliable performance in robotic arms and conveyor mechanisms. The single-row design simplifies installation and maintenance.
In household appliances like washing machines, K90X98X27 Bearing offers quiet operation and long service life. Its temperature resistance ensures stability under varying conditions.
