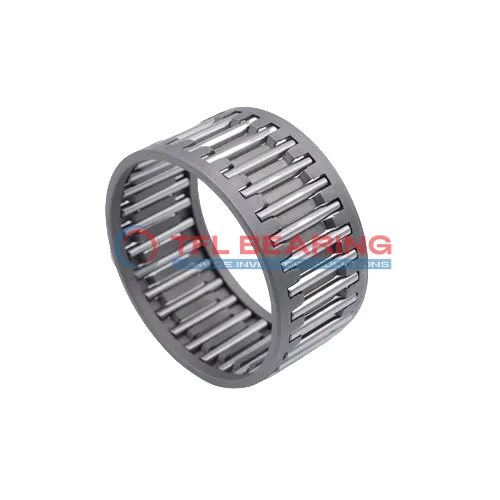

Needle Roller And Cage Assemblies K8X11X10-TV

Needle Roller And Cage Assemblies K8X11X10-TV

The K8X11X10-TV is a compact needle roller and cage assembly with an 8mm bore and 11mm outer diameter, made from sturdy steel and PA66 cage material. It handles radial loads up to 889 lbf and spins at speeds up to 32,500 RPM.
Its single-row design ensures smooth operation, while the lightweight PA66 cage reduces friction for better efficiency. The assembly works reliably in temperatures from -30°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for applications like small engines or gearboxes where space is limited but performance is key.
Weighing just 1.2g, it’s a lightweight yet durable solution for high-speed machinery. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K8X11X10-TV
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 8 mm
  • Outer Dia 11 mm
  • Width 10 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material PA66
  • Needle Material Steel
  • Dynamic Radial Load 889 lbf
  • Static Radial Load 922 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 32500 rpm
  • Weight 1.2 g
Needle Roller And Cage Assemblies K8X11X10-TV dimension drawing
Download DWG Download PDF

Features

How Does K8X11X10-TV Bearing Achieve High-Speed Performance?
K8X11X10-TV Bearing features a lightweight PA66 cage, reducing inertia for smoother high-speed operation.
Its steel needles provide excellent load distribution, handling dynamic radial loads up to 889 lbf.
The compact design ensures stability even at maximum speeds of 32,500 rpm.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.
K8X11X10-TV Bearing’s single-row construction simplifies installation and maintenance.
Its compliance with RoHS standards makes it an environmentally friendly choice.

Application

Key Fields for K8X11X10-TV Bearing
K8X11X10-TV Bearing is commonly used in compact industrial gearboxes, where its small size and high load capacity make it ideal for tight spaces. The PA66 cage ensures smooth operation even at high speeds, reducing friction and wear.
In automotive applications, K8X11X10-TV Bearing fits well in transmission systems and steering mechanisms, thanks to its durability and precision. Its metric dimensions make it a versatile choice for various vehicle designs.
For automation equipment, K8X11X10-TV Bearing works efficiently in robotic joints and linear guides, providing reliable performance. The steel needles offer excellent strength, ensuring long service life in repetitive motion scenarios.
Where Is K8X11X10-TV Bearing Used?
You’ll often find K8X11X10-TV Bearing in electric tools like drills and grinders, where its lightweight design and high-speed capability are key. The steel needle rollers handle radial loads effortlessly, even in demanding conditions.
In medical devices, K8X11X10-TV Bearing is suitable for precision instruments like dental handpieces, thanks to its consistent performance. The PA66 cage also resists corrosion, making it easy to sterilise for medical use.
Built for Heavy-Duty Use: K8X11X10-TV Bearing
K8X11X10-TV Bearing excels in conveyor systems, where its ability to handle radial loads keeps operations running smoothly. The steel construction ensures it can withstand continuous use without compromising performance.
For consumer electronics, K8X11X10-TV Bearing is a great fit in small motors, such as those in printers or fans. Its compact size and high-speed tolerance make it a reliable component in everyday devices.
