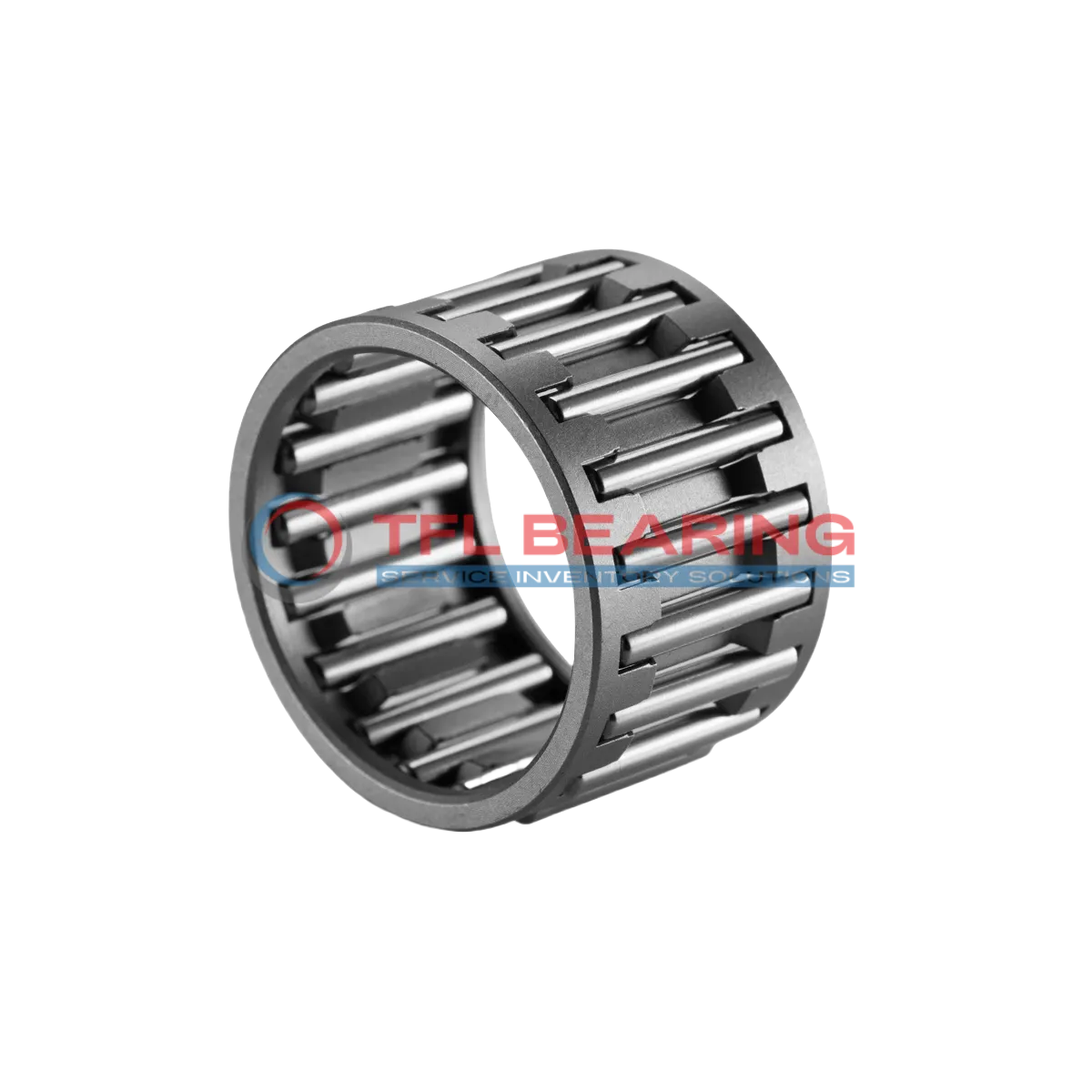

Needle Roller And Cage Assemblies K75X83X35-ZW

Needle Roller And Cage Assemblies K75X83X35-ZW

The K75X83X35-ZW is a double-row needle roller and cage assembly with a 75mm bore and 83mm outer diameter, crafted from sturdy steel. It handles radial loads up to 14175 lbf and operates smoothly at speeds up to 6200 RPM.
Its steel cage ensures durability, while the double-row design provides stable performance under heavy loads. The assembly works reliably in temperatures ranging from -30°C to 110°C.
This model is interchangeable with INA bearings, offering a practical replacement option. Ideal for applications like gear pumps or automotive transmissions where space is limited but high load capacity is needed.
Weighing just 182g, it’s lightweight yet robust. Compliant with RoHS standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K75X83X35-ZW
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 75 mm
  • Outer Dia 83 mm
  • Width 35 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Double Row
  • Series K-ZW Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 14175 lbf
  • Static Radial Load 33075 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 6200 rpm
  • Weight 182 g
Needle Roller And Cage Assemblies K75X83X35-ZW dimension drawing
Download DWG Download PDF

Features

How Does K75X83X35-ZW Bearing Handle Heavy Radial Loads?
K75X83X35-ZW Bearing features a double-row needle roller design, enhancing its capacity to handle heavy radial loads.
Its dynamic radial load rating of 14,175 lbf ensures reliable performance in demanding industrial applications.
The steel cage and needle rollers provide durability, reducing wear even under continuous operation.
With a maximum speed of 6,200 rpm, it balances high-speed performance and load-bearing efficiency.
K75X83X35-ZW Bearing operates effectively in temperatures ranging from -30° to 110°C, making it versatile for various environments.
Its compact design and lightweight construction at 182 g ensure easy integration into different machinery setups.

Application

Industrial Uses of K75X83X35-ZW Bearing
K75X83X35-ZW Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its double-row design handles high radial loads efficiently. The steel cage and needles ensure durability in demanding environments.
Where Is K75X83X35-ZW Bearing Used?
You’ll often find K75X83X35-ZW Bearing in automotive transmissions, where its compact size and high load capacity make it ideal for tight spaces. It’s also a reliable choice for industrial gearboxes, thanks to its smooth operation at high speeds.
Built for Heavy-Duty Use: K75X83X35-ZW Bearing
K75X83X35-ZW Bearing excels in applications like conveyor systems and printing presses, where consistent performance under heavy loads is key. Its metric sizing ensures easy integration with a variety of machinery.
Automotive vs Industrial: Applications of K75X83X35-ZW Bearing
In automotive settings, K75X83X35-ZW Bearing supports components like differential systems, while in industrial uses, it’s favoured for its reliability in pumps and compressors. The steel construction ensures long-lasting performance in both scenarios.
Perfect Fit for Automation: K75X83X35-ZW Bearing
K75X83X35-ZW Bearing is a great match for robotic arms and automated assembly lines, where precision and load capacity matter. Its high-speed capability and steel components make it a dependable choice for repetitive tasks.
