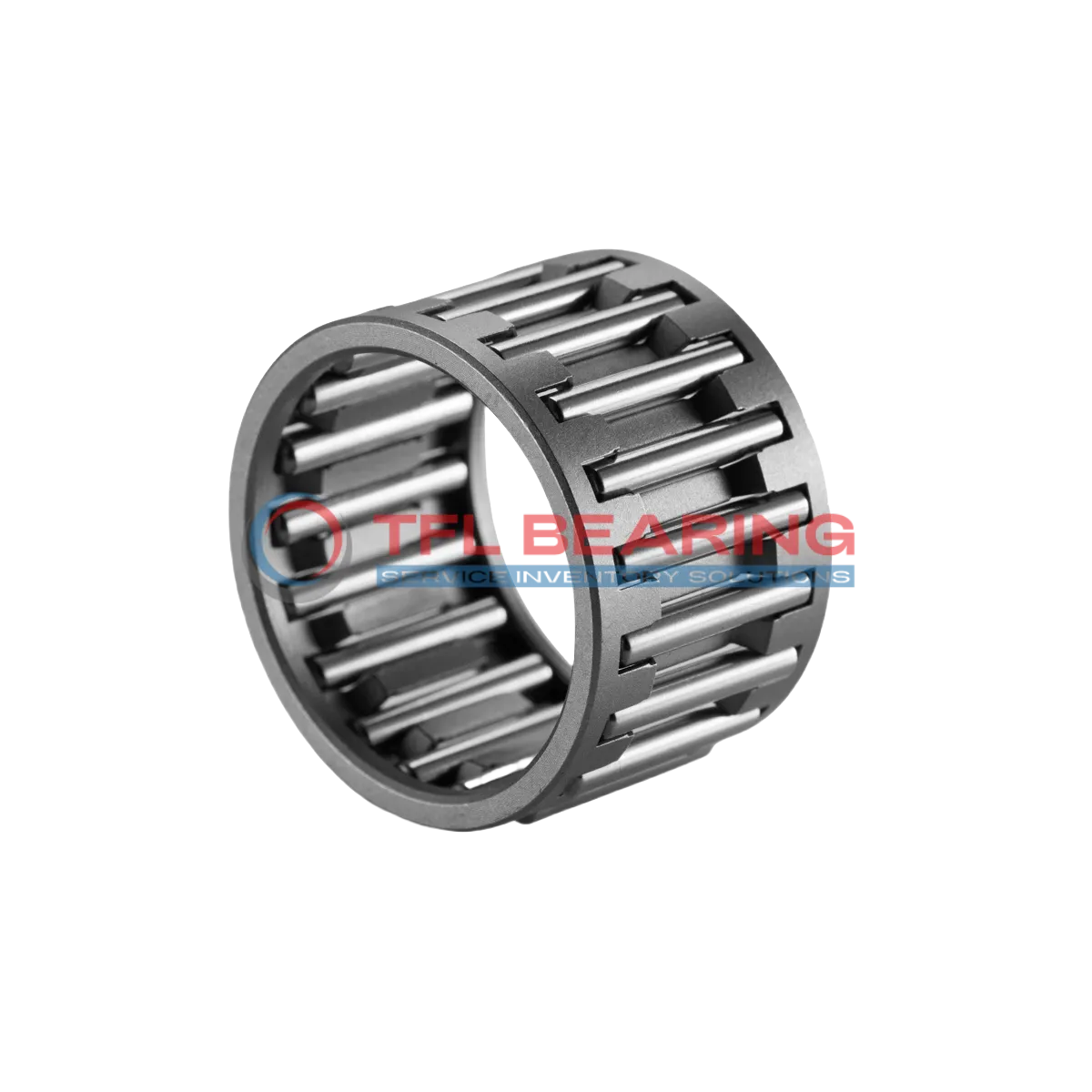

Needle Roller And Cage Assemblies K75X83X23

Needle Roller And Cage Assemblies K75X83X23

The K75X83X23 is a needle roller and cage assembly with a 75mm bore and 83mm outer diameter, crafted from sturdy steel. It handles radial loads up to 11250 lbf and operates smoothly at speeds up to 6200 RPM.
Its single-row design with a steel cage ensures durability and efficient load distribution. The assembly performs reliably in temperatures ranging from -30°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Suitable for applications like gearboxes or automotive components where space is limited but high load capacity is needed.
Weighing just 124g, it’s lightweight yet robust for its size. Compliant with RoHS standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K75X83X23
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 75 mm
  • Outer Dia 83 mm
  • Width 23 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 11250 lbf
  • Static Radial Load 24525 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 6200 rpm
  • Weight 124 g
Needle Roller And Cage Assemblies K75X83X23 dimension drawing
Download DWG Download PDF

Features

How Does K75X83X23 Bearing Handle Heavy Loads?
K75X83X23 Bearing features a robust steel cage and needle rollers, designed to manage high radial loads efficiently.
Its dynamic radial load capacity reaches 11,250 lbf, making it suitable for demanding industrial applications.
The single-row construction ensures compactness while maintaining performance in limited spaces.
With a maximum speed of 6,200 rpm, it offers a balance of durability and operational efficiency.
K75X83X23 Bearing operates reliably within a temperature range of -30° to 110°C.
Its steel components provide strength and resistance to wear, extending service life.

Application

Industrial Uses of K75X83X23 Bearing
K75X83X23 Bearing is commonly used in industrial gearboxes, where its needle roller design handles high radial loads efficiently. The steel cage ensures durability even in demanding environments.
In automotive applications, K75X83X23 Bearing fits well in transmission systems, providing smooth rotation under heavy loads. Its compact size makes it ideal for space-constrained designs.
For automation equipment, K75X83X23 Bearing supports precise movements in robotic arms and conveyor systems. The high-speed capability of up to 6200 rpm ensures reliable performance in continuous operations.
Medical devices benefit from K75X83X23 Bearing’s consistent performance in imaging equipment. The steel construction offers long-lasting reliability in critical healthcare settings.
Household appliances like washing machines often use K75X83X23 Bearing for its quiet operation. The metric dimensions make it easy to integrate into various consumer products.
