Heavy Duty Needle Roller Bearings (Machined) RNAO35X45X26-ZW-ASR1-XL

Heavy Duty Needle Roller Bearings (Machined) RNAO35X45X26-ZW-ASR1-XL

The RNAO35X45X26-ZW-ASR1-XL is a heavy-duty needle roller bearing with a 35mm bore and 45mm outer diameter, crafted from sturdy steel. It handles radial loads up to 7088 lbf and spins smoothly at speeds up to 13100 RPM.
Its double-row design provides extra stability, while the open seal allows for easy lubrication. The bearing operates well in temperatures from -20°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for applications like gearboxes or industrial machinery where high radial loads are common.
Weighing just 91g, it’s lightweight yet robust for its size. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RNAO35X45X26-ZW-ASR1-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Inner Ring No
  • Series Without Inner Ring
  • Bore Dia 35 mm
  • Bore Dia Tolerance 0.025mm to 0.041mm
  • Outer Dia 45 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 26 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Steel
  • Cage Material Steel
  • Roller Material Steel
  • Dynamic Radial Load 7088 lbf
  • Static Radial Load 12600 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 13100 rpm
  • Weight 91 g

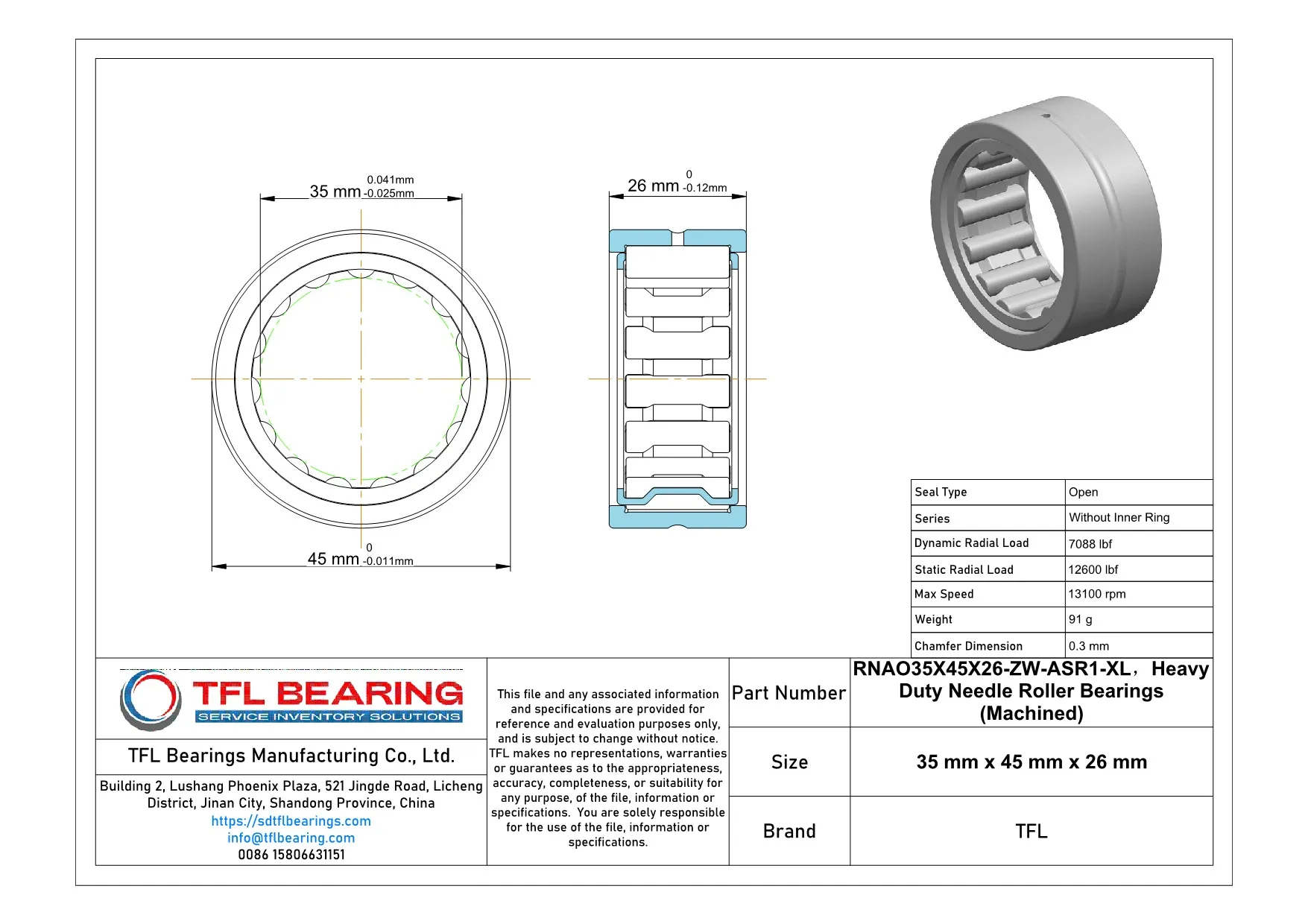

Heavy Duty Needle Roller Bearings (Machined) RNAO35X45X26-ZW-ASR1-XL dimension drawing
Download DWG Download PDF

Features

Performance Features of RNAO35X45X26-ZW-ASR1-XL Bearing
RNAO35X45X26-ZW-ASR1-XL Bearing is built with steel rings and rollers, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 7088 lbf, making it suitable for heavy-duty applications.
The double-row design enhances load distribution, improving stability and longevity.
With a maximum speed of 13,100 rpm, it delivers reliable performance in demanding conditions.
How Does RNAO35X45X26-ZW-ASR1-XL Bearing Reduce Friction?
RNAO35X45X26-ZW-ASR1-XL Bearing’s steel cage ensures smooth roller movement, minimising friction during operation.
The press-fit shaft mount type provides a secure fit, reducing vibrations and wear.
Its open design allows for easy lubrication, maintaining optimal performance.
The bearing operates efficiently within a temperature range of -20 to 110 °C.
Built for Reliability: RNAO35X45X26-ZW-ASR1-XL Bearing
RNAO35X45X26-ZW-ASR1-XL Bearing’s steel construction ensures durability in high-load environments.
The double-row needle rollers enhance load capacity, making it ideal for industrial use.
Its static radial load capacity of 12,600 lbf guarantees long-term reliability.
The bearing’s compact design saves space while maintaining high performance.
Steel vs Ceramic Bearings: Strengths of RNAO35X45X26-ZW-ASR1-XL Bearing
RNAO35X45X26-ZW-ASR1-XL Bearing uses steel rollers and rings for superior strength and cost-effectiveness.
Its dynamic radial load capacity of 7088 lbf outperforms many ceramic alternatives.
The steel cage ensures smooth operation and easy maintenance.
With a weight of just 91 g, it offers a lightweight yet robust solution.

Application

Industrial Uses of RNAO35X45X26-ZW-ASR1-XL Bearing
RNAO35X45X26-ZW-ASR1-XL Bearing is commonly used in heavy machinery like construction equipment and agricultural tools, where its double-row design handles high radial loads efficiently. The open seal type simplifies lubrication, ensuring long service life in dusty environments.
In automotive applications, RNAO35X45X26-ZW-ASR1-XL Bearing fits well in gearboxes and drivetrains, thanks to its press-fit mounting and steel construction. Its high-speed capability makes it suitable for performance vehicles and commercial transport alike.
For automation systems, RNAO35X45X26-ZW-ASR1-XL Bearing provides reliable support in robotic arms and conveyor belts, where precision and durability are key. The metric dimensions ensure compatibility with a wide range of industrial components.
What Makes RNAO35X45X26-ZW-ASR1-XL Bearing a Preferred Choice?
RNAO35X45X26-ZW-ASR1-XL Bearing stands out in applications like printing presses and packaging machines due to its compact design and high load capacity. The steel rollers and cage offer excellent wear resistance, even under continuous operation.
In household appliances, RNAO35X45X26-ZW-ASR1-XL Bearing can be found in washing machines and power tools, where its quiet performance and reliability are appreciated. The wide temperature range ensures consistent performance in various climates.
