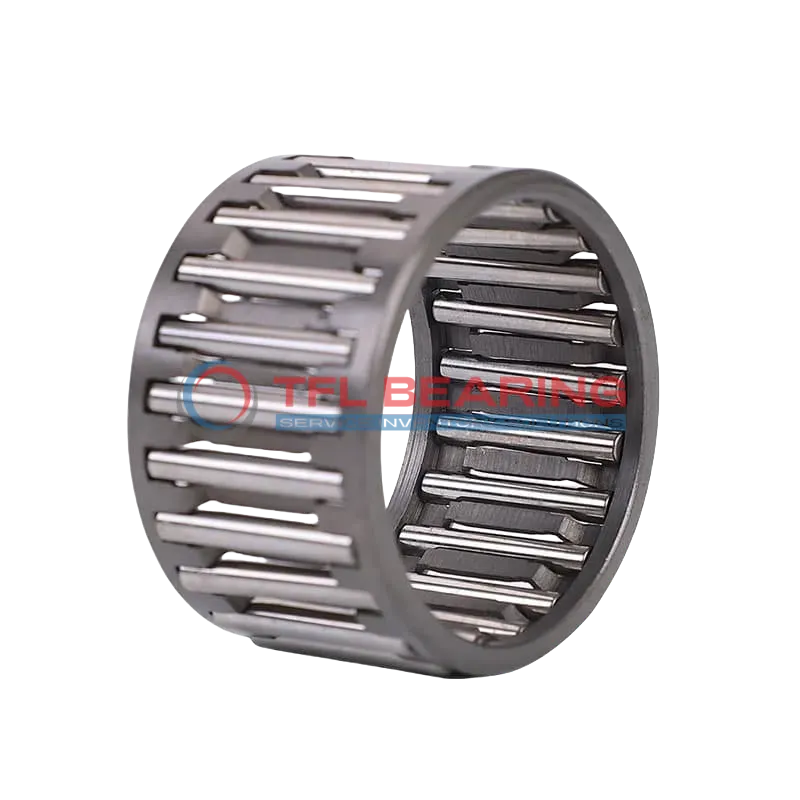

Needle Roller And Cage Assemblies K60X68X20

Needle Roller And Cage Assemblies K60X68X20

The K60X68X20 is a needle roller and cage assembly with a 60mm bore and 68mm outer diameter, crafted from sturdy steel. It handles radial loads up to 9788 lbf and operates smoothly at speeds up to 7700 RPM.
Its single-row design and steel cage provide reliable performance, even in demanding conditions. The assembly works well in temperatures ranging from -30°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Suitable for applications like gearboxes or automotive components where space is limited but high load capacity is needed.
Weighing just 71g, it’s lightweight yet durable. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K60X68X20
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 60 mm
  • Outer Dia 68 mm
  • Width 20 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 9788 lbf
  • Static Radial Load 19125 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 7700 rpm
  • Weight 71 g
Needle Roller And Cage Assemblies K60X68X20 dimension drawing
Download DWG Download PDF

Features

How Does K60X68X20 Bearing Handle Heavy Loads?
K60X68X20 Bearing features a robust steel cage and needle rollers, designed to withstand high radial loads.
Its dynamic radial load capacity of 9788 lbf ensures reliable performance in demanding industrial applications.
The single-row construction of K60X68X20 Bearing provides stability and reduces friction during operation.
With a maximum speed of 7700 rpm, it offers a balance of durability and efficiency.
K60X68X20 Bearing operates smoothly within a temperature range of -30° to 110 °C.
Its compact design and lightweight construction make it suitable for space-constrained applications.

Application

Industrial Uses of K60X68X20 Bearing
K60X68X20 Bearing is commonly used in industrial gearboxes, where its compact design and high load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding environments.
In automotive applications, K60X68X20 Bearing fits well in transmission systems, providing smooth rotation under heavy radial loads. Its metric sizing makes it a versatile choice for various vehicle models.
For automation equipment, K60X68X20 Bearing offers reliable performance in robotic arms and conveyor systems. The single-row design simplifies installation while maintaining precision.
K60X68X20 Bearing also works well in household appliances like washing machines, where its high-speed capability ensures quiet operation. The lightweight design adds to its practicality for everyday use.
