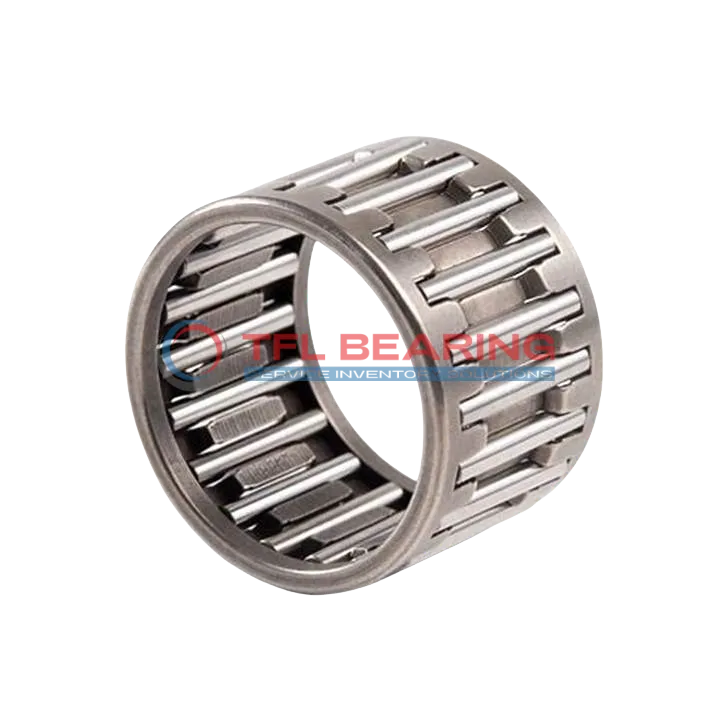

Needle Roller And Cage Assemblies K45X50X17

Needle Roller And Cage Assemblies K45X50X17

The K45X50X17 is a needle roller and cage assembly with a 45mm bore and 50mm outer diameter, crafted from sturdy steel. It handles radial loads up to 5062 lbf and spins smoothly at speeds up to 10300 RPM.
Its single-row design and steel cage provide reliable performance, even in demanding conditions. The assembly operates well in temperatures ranging from -30°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for applications like transmissions or small machinery where space is limited.
Weighing just 34g, it’s lightweight yet durable. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K45X50X17
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 45 mm
  • Outer Dia 50 mm
  • Width 17 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 5062 lbf
  • Static Radial Load 10350 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 10300 rpm
  • Weight 34 g
Needle Roller And Cage Assemblies K45X50X17 dimension drawing
Download DWG Download PDF

Features

How Does K45X50X17 Bearing Handle Heavy Loads?
K45X50X17 Bearing features a steel cage and needles, offering strong resistance to high radial loads.
Its dynamic radial load capacity reaches 5062 lbf, making it suitable for demanding industrial applications.
The compact design of K45X50X17 Bearing ensures efficient performance even in limited spaces.
With a maximum speed of 10,300 rpm, it delivers reliable operation in high-speed environments.
K45X50X17 Bearing operates smoothly within a temperature range of -30° to 110°C.
Its durable construction reduces maintenance needs, lowering long-term operational costs.

Application

Key Fields for K45X50X17 Bearing
K45X50X17 Bearing is widely used in industrial gearboxes, where its compact design and high load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding conditions.
In automotive applications, K45X50X17 Bearing fits well in transmission systems, providing smooth rotation under high radial loads. Its metric sizing makes it a versatile choice for various vehicle models.
For automation equipment, K45X50X17 Bearing offers reliable performance in robotic arms and conveyor systems. The high-speed capability ensures efficiency in continuous operation.
Medical devices like imaging equipment benefit from K45X50X17 Bearing’s precision and low maintenance needs. The steel needles and cage provide long-lasting performance in critical applications.
Household appliances such as washing machines often use K45X50X17 Bearing for its quiet operation and reliability. Its lightweight design helps reduce overall machine weight without sacrificing performance.
