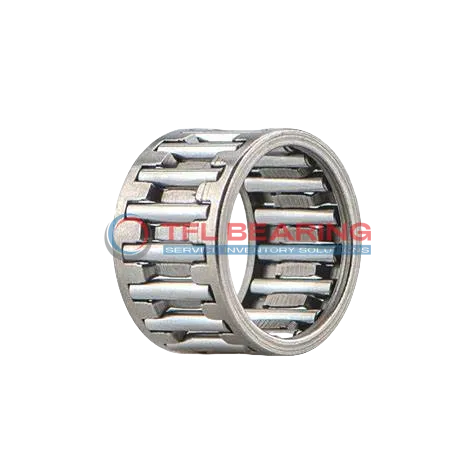

Needle Roller And Cage Assemblies K35X42X18

Needle Roller And Cage Assemblies K35X42X18

The K35X42X18 is a needle roller and cage assembly with a 35mm bore and 42mm outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 6188 lbf and spins smoothly at speeds up to 12700 RPM.
Its single-row design and steel cage ensure durability, while the compact 18mm width fits neatly into tight spaces. The assembly operates well in temperatures ranging from -30°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for applications like gear pumps or small machinery where space and load capacity are key factors.
Weighing just 34g, it’s lightweight yet robust for its size. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K35X42X18
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 35 mm
  • Outer Dia 42 mm
  • Width 18 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 6188 lbf
  • Static Radial Load 9675 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 12700 rpm
  • Weight 34 g
Needle Roller And Cage Assemblies K35X42X18 dimension drawing
Download DWG Download PDF

Features

How Does K35X42X18 Bearing Handle High-Speed Applications?
K35X42X18 Bearing is built with steel needles and a steel cage, ensuring durability and smooth operation at high speeds.
Its dynamic radial load capacity of 6188 lbf makes it suitable for demanding industrial uses.
The compact design with an 18 mm width allows for easy integration into tight spaces.
With a maximum speed of 12,700 rpm, it delivers reliable performance in high-speed environments.

Application

Key Fields for K35X42X18 Bearing
K35X42X18 Bearing is commonly used in industrial gearboxes, where its compact design and high load capacity make it ideal for space-constrained applications. The steel construction ensures durability even in demanding environments.
In automotive transmissions, K35X42X18 Bearing provides smooth operation under high radial loads, enhancing performance and longevity. Its compatibility with INA models makes it a versatile choice for various vehicle brands.
For automation systems, K35X42X18 Bearing’s high-speed capability suits robotic arms and conveyor mechanisms. The lightweight design reduces overall system weight without compromising strength.
In medical devices like dental drills, K35X42X18 Bearing offers precise movement and reliability. Its temperature tolerance ensures consistent performance during prolonged use.
Household appliances such as washing machines benefit from K35X42X18 Bearing’s quiet operation and low maintenance needs. The metric sizing fits seamlessly into European and Asian appliance designs.
