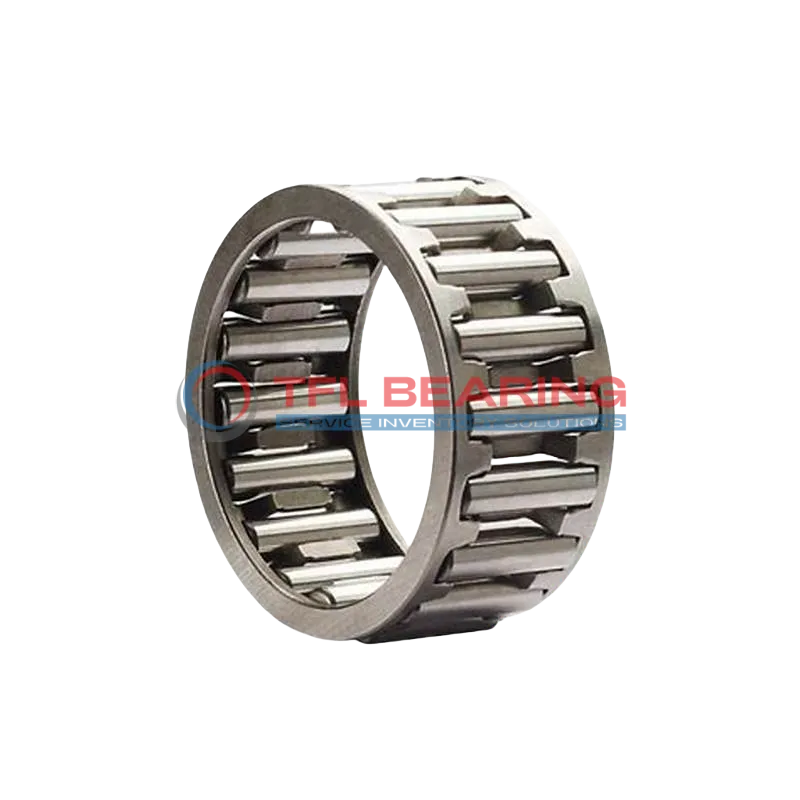

Needle Roller And Cage Assemblies K32X39X16

The K32X39X16 is a compact needle roller and cage assembly with a 32mm bore and 39mm outer diameter, crafted from sturdy steel. It handles radial loads up to 5355 lbf and spins smoothly at speeds up to 13800 RPM.
Its single-row design with a steel cage ensures durability and efficient load distribution. The assembly operates reliably in temperatures ranging from -30°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Suitable for applications like gearboxes or automotive components where space is limited but performance is key.
Weighing just 37g, it’s lightweight yet robust for its size. Compliant with RoHS standards for safe use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number K32X39X16
Brand TFL
Interchangeable INA
Bore Dia 32 mm
Outer Dia 39 mm
Width 16 mm
System of Measurement Metric
Roller Bearing Type Needle
Construction Single Row
Series K Series
Cage Material Steel
Needle Material Steel
Dynamic Radial Load 5355 lbf
Static Radial Load 7988 lbf
Temperature Range -30° to 110 °C
RoHS Compliant
Max Speed 13800 rpm
Weight 37 g

Needle Roller And Cage Assemblies K32X39X16 dimension drawing

Download DWG Download PDF

Features

How Does K32X39X16 Bearing Handle High-Speed Applications?
K32X39X16 Bearing is built with steel needles and a steel cage, ensuring durability and smooth operation at high speeds.
Its dynamic radial load capacity of 5355 lbf makes it suitable for demanding industrial environments.
The compact design with a width of 16 mm allows for easy integration into tight spaces.
With a maximum speed of 13,800 rpm, it delivers reliable performance in high-speed applications.

Application

Key Fields for K32X39X16 Bearing
K32X39X16 Bearing is widely used in industrial gearboxes, where its compact design and high load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding conditions.
In automotive applications, K32X39X16 Bearing excels in transmission systems, providing smooth rotation under heavy radial loads. Its metric sizing makes it a versatile choice for various vehicle models.
For automation equipment, K32X39X16 Bearing offers reliable performance in robotic arms and conveyor systems. The high-speed capability ensures efficient operation in continuous-use scenarios.
In household appliances like washing machines, K32X39X16 Bearing reduces friction and noise, enhancing user comfort. Its lightweight design also contributes to energy efficiency.
