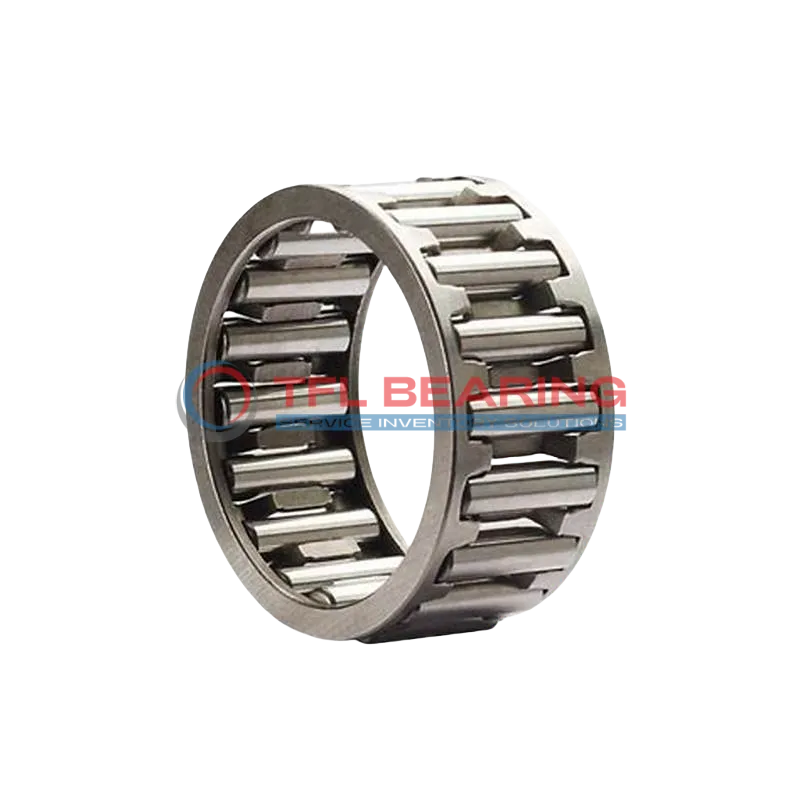

Needle Roller And Cage Assemblies K32X37X13

The K32X37X13 is a needle roller and cage assembly with a 32mm bore and 37mm outer diameter, crafted from sturdy steel. It handles radial loads up to 3488 lbf and spins smoothly at speeds up to 14200 RPM.
Its single-row design with a steel cage ensures durability and efficient performance. The compact width of 13mm makes it suitable for tight spaces.
This assembly is interchangeable with INA bearings, offering a reliable replacement option. Ideal for applications like gearboxes or automotive systems where high-speed radial loads are common.
Weighing just 18g, it’s lightweight yet robust. Compliant with RoHS standards and operates in temperatures from -30°C to 110°C.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number K32X37X13
Brand TFL
Interchangeable INA
Bore Dia 32 mm
Outer Dia 37 mm
Width 13 mm
System of Measurement Metric
Roller Bearing Type Needle
Construction Single Row
Series K Series
Cage Material Steel
Needle Material Steel
Dynamic Radial Load 3488 lbf
Static Radial Load 5738 lbf
Temperature Range -30° to 110 °C
RoHS Compliant
Max Speed 14200 rpm
Weight 18 g

Needle Roller And Cage Assemblies K32X37X13 dimension drawing

Download DWG Download PDF

Features

How Does K32X37X13 Bearing Achieve High-Speed Performance?
K32X37X13 Bearing is built with a steel cage and needles, ensuring durability and smooth operation at high speeds.
Its dynamic radial load capacity of 3488 lbf makes it suitable for demanding applications.
The compact design of K32X37X13 Bearing allows it to handle speeds up to 14,200 rpm without compromising performance.
Its steel construction provides reliable strength while maintaining a lightweight profile at just 18 grams.
K32X37X13 Bearing operates efficiently within a temperature range of -30° to 110°C, adapting to various environments.
The single-row needle roller design ensures precise alignment and reduced friction during operation.

Application

Industrial Uses of K32X37X13 Bearing
K32X37X13 Bearing is commonly used in industrial gearboxes, where its compact design and high load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding environments.
Where Is K32X37X13 Bearing Used?
You’ll often find K32X37X13 Bearing in automotive transmissions, where its needle roller design handles high radial loads efficiently. Its metric sizing makes it a versatile choice for various vehicle models.
Built for Heavy-Duty Use: K32X37X13 Bearing
K32X37X13 Bearing excels in construction equipment, such as compactors and excavators, thanks to its robust steel cage and rollers. The high-speed capability also makes it suitable for rotating machinery.
Medical vs Industrial: Where K32X37X13 Bearing Excels
In medical devices, K32X37X13 Bearing provides smooth operation for precision instruments like surgical tools. For industrial applications, it’s a reliable choice for conveyor systems and pumps.
Automotive vs Aerospace: Applications of K32X37X13 Bearing
K32X37X13 Bearing is widely used in car steering systems due to its compact size and load capacity. In aerospace, it’s valued for its reliability in auxiliary aircraft mechanisms.
