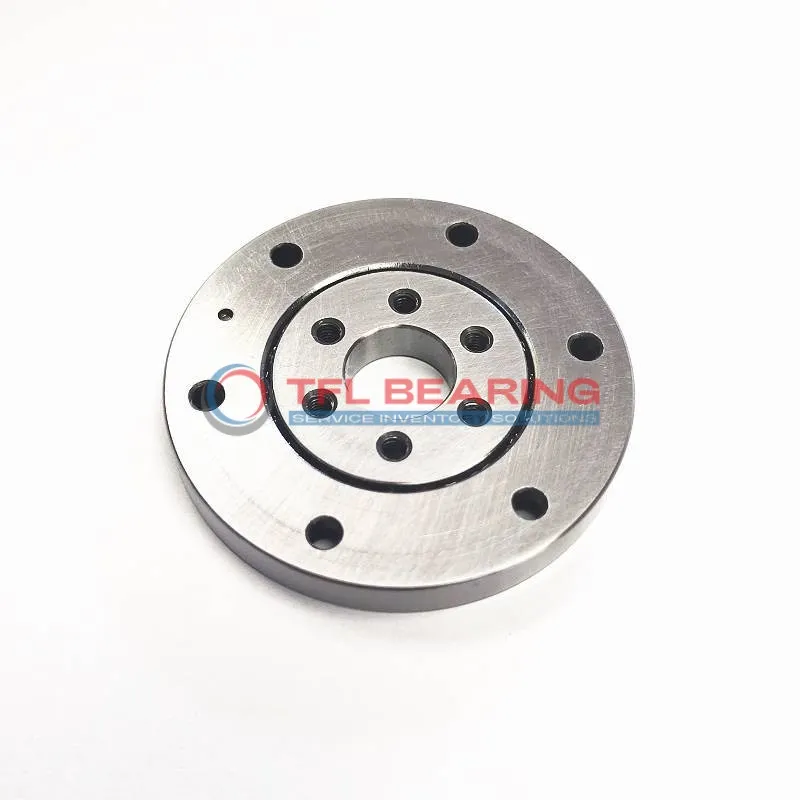

CRBF Crossed Roller Bearings CRBFV9025AT

CRBF Crossed Roller Bearings CRBFV9025AT

The CRBFV9025AT is a crossed roller bearing measuring 90mm in bore diameter and 210mm in outer diameter, with a compact width of 25mm. Made from sturdy steel, it handles combined loads up to 49.1 kN, making it a reliable choice for heavy-duty applications.

Its open design allows for easy lubrication, while the press-fit shaft mount ensures a secure installation. The bearing operates smoothly in temperatures ranging from 0°C to 110°C, suitable for various industrial environments.

Featuring mounting holes (12-M8 through on the inner ring and 12-φ9 on the outer ring), it simplifies assembly in machinery. Compliant with RoHS and REACH standards, it’s a safe and durable option.

Ideal for precision equipment like robotics or machine tools, where high load capacity and stability are essential. Weighing 4.9kg, it balances strength and practicality.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number CRBFV9025AT
  • Brand TFL
  • Interchangeable brand IKO
  • Size 90 mm x 210 mm x 25 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 90 mm
  • Outer Dia 210 mm
  • Width 25 mm
  • Inner Ring PCD1 112 mm
  • Outer Ring PCD2 187 mm
  • Holes With Holes
  • Inner Ring Mounting Hole 12-M8 through
  • Outer Ring Mounting Hole 12-φ9 through φ14 counter bore depth 12
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 49.1 kN
  • Basic Load Rating Co 76.8 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.9 Kg

Features

Performance Features of CRBFV9025AT Bearing

CRBFV9025AT Bearing is designed for combined load applications, offering reliable performance in various conditions.
Its crossed roller design provides high rigidity and precision, making it suitable for demanding tasks.

The steel construction of CRBFV9025AT Bearing ensures durability and resistance to wear under heavy loads.
With a basic load rating of 49.1 kN, it handles significant forces while maintaining smooth operation.

CRBFV9025AT Bearing operates in temperatures from 0 to 230°F, adapting to different working environments.
Its ABEC5 rating (available in ABEC7/9) guarantees precision for high-performance applications.

The mounting holes in CRBFV9025AT Bearing simplify installation, saving time and effort.
Weighing 4.9 kg, it balances strength and practicality for industrial use.

Application

Industrial Uses of CRBFV9025AT Bearing
CRBFV9025AT Bearing is commonly used in machine tools, where its crossed roller design provides excellent rigidity and precision for rotary tables. The steel construction ensures durability in high-load industrial environments.

What Makes CRBFV9025AT Bearing a Preferred Choice?
In robotics, CRBFV9025AT Bearing offers smooth motion control for robotic arms, thanks to its combined load capacity. The open design allows for easy lubrication, extending service life in automated systems.

Built for Heavy-Duty Use: CRBFV9025AT Bearing
CRBFV9025AT Bearing handles heavy loads in construction equipment, such as crane slewing rings. Its press-fit mounting ensures secure installation in demanding applications.

Medical vs Industrial: Where CRBFV9025AT Bearing Excels
CRBFV9025AT Bearing is suitable for medical imaging devices, providing stable rotation with minimal vibration. In industrial settings, it supports high-precision machinery like CNC lathes.

Automotive vs Aerospace: Applications of CRBFV9025AT Bearing
CRBFV9025AT Bearing is found in automotive steering systems, offering reliable performance under combined loads. Aerospace applications benefit from its ABEC5 precision in flight control mechanisms.
