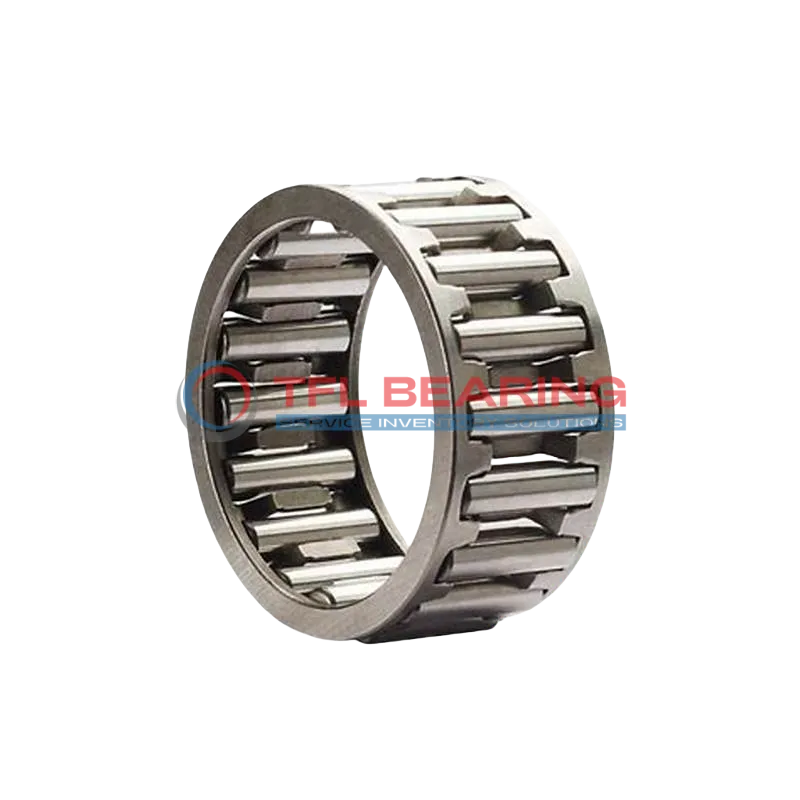

Needle Roller And Cage Assemblies K30X35X17

Needle Roller And Cage Assemblies K30X35X17

The K30X35X17 is a needle roller and cage assembly with a 30mm bore and 35mm outer diameter, crafted from sturdy steel. It handles radial loads up to 4410 lbf and spins smoothly at speeds up to 15100 RPM.
Its single-row design with a steel cage ensures durability and efficient performance. The compact width of 17mm makes it suitable for tight spaces.
This assembly is interchangeable with INA bearings, offering a reliable replacement option. Ideal for applications like gearboxes or automotive components where high-speed rotation is needed.
Weighing just 19g, it’s lightweight yet robust. Compliant with RoHS standards, it operates well in temperatures from -30°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K30X35X17
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 30 mm
  • Outer Dia 35 mm
  • Width 17 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 4410 lbf
  • Static Radial Load 7650 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 15100 rpm
  • Weight 19 g
Needle Roller And Cage Assemblies K30X35X17 dimension drawing
Download DWG Download PDF

Features

How Does K30X35X17 Bearing Achieve High-Speed Performance?
K30X35X17 Bearing features a steel cage and needles, ensuring durability and smooth operation at high speeds.
With a maximum speed of 15,100 rpm, it is well-suited for demanding applications requiring rapid rotation.
The dynamic radial load capacity of 4,410 lbf allows K30X35X17 Bearing to handle significant stress without compromising performance.
Its compact design, with a width of just 17 mm, makes it ideal for space-constrained installations.
K30X35X17 Bearing operates efficiently within a temperature range of -30° to 110 °C, ensuring reliability in various environments.
The steel construction provides excellent resistance to wear, extending the bearing’s service life.

Application

Industrial Uses of K30X35X17 Bearing
K30X35X17 Bearing is commonly used in industrial gearboxes, where its compact design and high load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding environments.
In automotive applications, K30X35X17 Bearing fits well in transmission systems, providing smooth operation under high radial loads. Its metric sizing makes it a versatile choice for various vehicle models.
For automation equipment, K30X35X17 Bearing’s high-speed capability suits robotic arms and conveyor systems. The single-row design simplifies installation while maintaining reliable performance.
Where Is K30X35X17 Bearing Used?
You’ll often find K30X35X17 Bearing in printing machinery, where its needle rollers handle high speeds with precision. The steel cage keeps everything aligned for consistent operation.
In household appliances like washing machines, K30X35X17 Bearing supports rotating parts quietly and efficiently. Its lightweight design doesn’t compromise on strength or longevity.
Built for Heavy-Duty Use: K30X35X17 Bearing
K30X35X17 Bearing excels in construction equipment, handling heavy radial loads without faltering. The wide temperature range means it performs well in both hot and cold conditions.
For medical devices, K30X35X17 Bearing offers reliable motion control in equipment like MRI machines. Its compliance with RoHS standards ensures safety in sensitive environments.
Light-Duty vs Heavy-Duty: Best Uses for K30X35X17 Bearing
In light-duty applications like office printers, K30X35X17 Bearing provides smooth paper feed mechanisms. The steel needles reduce friction for quieter operation.
For heavy-duty industrial presses, K30X35X17 Bearing withstands intense radial forces. Its high dynamic load rating makes it a dependable choice for continuous use.
