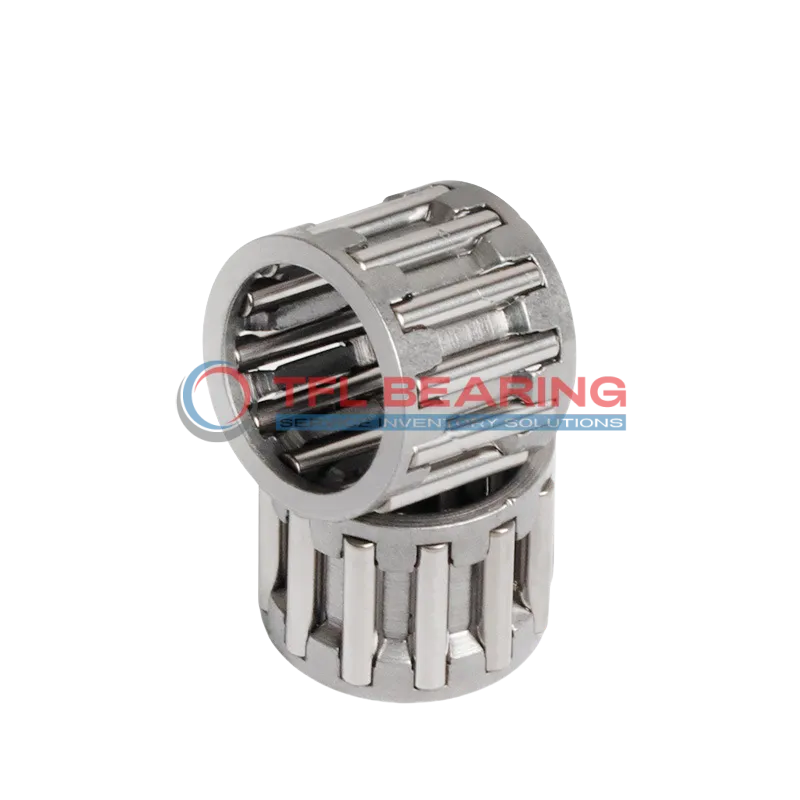

Needle Roller And Cage Assemblies K25X32X16

Needle Roller And Cage Assemblies K25X32X16

The K25X32X16 is a compact needle roller and cage assembly with a 25mm bore and 32mm outer diameter, built from sturdy steel. It handles radial loads up to 4680 lbf and spins smoothly at speeds up to 17200 RPM.
Its single-row design with a steel cage ensures reliable performance in tight spaces. The assembly works well in temperatures from -30°C to 110°C, making it versatile for various conditions.
This model is interchangeable with INA bearings, offering a practical replacement option. Ideal for applications like gearboxes, pumps, or small machinery where space is limited but high load capacity is needed.
Weighing just 21g, it’s lightweight yet durable. Compliant with RoHS standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K25X32X16
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 25 mm
  • Outer Dia 32 mm
  • Width 16 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 4680 lbf
  • Static Radial Load 6188 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 17200 rpm
  • Weight 21 g
Needle Roller And Cage Assemblies K25X32X16 dimension drawing
Download DWG Download PDF

Features

How Does K25X32X16 Bearing Achieve High-Speed Performance?
K25X32X16 Bearing features a steel cage and needles, providing excellent durability under high radial loads.
Its dynamic radial load capacity of 4680 lbf ensures reliable operation in demanding conditions.
The compact design allows for high-speed performance, reaching up to 17,200 rpm.
With a temperature range of -30° to 110°C, it performs well in various environments.

Application

Common Applications of K25X32X16 Bearing
K25X32X16 Bearing is widely used in industrial gearboxes, where its compact design and high load capacity make it ideal for space-constrained applications. The steel construction ensures durability even in demanding environments.
In automotive transmissions, K25X32X16 Bearing provides smooth operation under high radial loads, enhancing performance and longevity. Its metric sizing allows for easy integration with various vehicle models.
For automation systems, K25X32X16 Bearing’s high-speed capability suits robotic arms and conveyor belts, ensuring reliable movement. The single-row design simplifies installation and maintenance.
In household appliances like washing machines, K25X32X16 Bearing’s lightweight and efficiency contribute to quieter operation. Its compliance with RoHS standards makes it a safe choice for consumer products.
