Needle Roller And Cage Assemblies K210X220X42

Needle Roller And Cage Assemblies K210X220X42

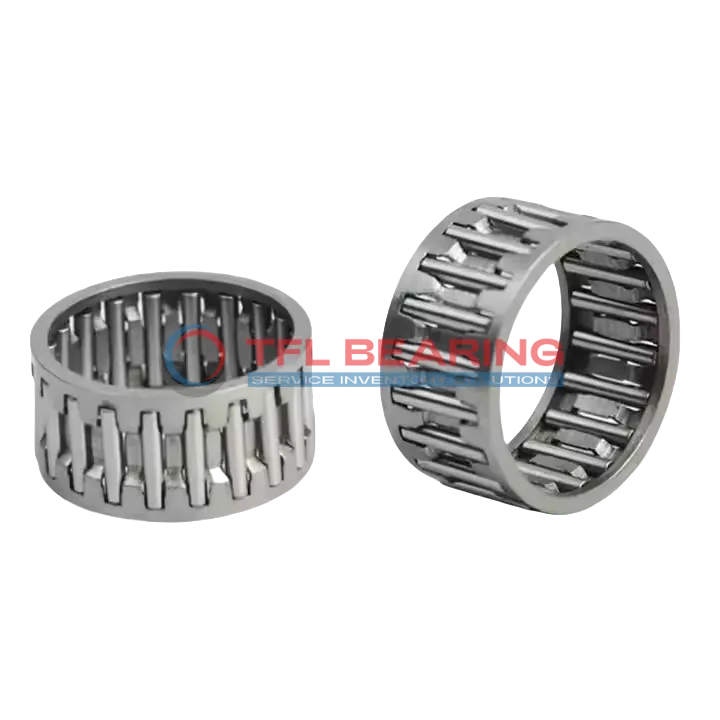

The K210X220X42 is a needle roller and cage assembly with a 210mm bore and 220mm outer diameter, built from sturdy steel. It handles radial loads up to 34650 lbf and operates smoothly at speeds up to 2300 RPM.
Its single-row design with a steel cage ensures reliable performance under heavy loads. The assembly works well in temperatures ranging from -30°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for applications like gearboxes or heavy machinery where high radial loads are common.
Weighing 740g, it offers a balance of strength and manageability. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K210X220X42
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 210 mm
  • Outer Dia 220 mm
  • Width 42 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 34650 lbf
  • Static Radial Load 126000 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 2300 rpm
  • Weight 740 g
Needle Roller And Cage Assemblies K210X220X42 dimension drawing
Download DWG Download PDF

Features

How Does K210X220X42 Bearing Handle Heavy Loads?
K210X220X42 Bearing is built with steel needles and cage, offering robust resistance to high radial loads.
Its dynamic radial load capacity reaches 34,650 lbf, making it suitable for heavy-duty applications.
The single-row design ensures stability and efficient load distribution.
With a maximum speed of 2,300 rpm, it delivers reliable performance in demanding conditions.
K210X220X42 Bearing operates within a temperature range of -30° to 110°C, ensuring versatility.
Its steel construction provides durability, reducing the need for frequent replacements.

Application

Industrial Uses of K210X220X42 Bearing
K210X220X42 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its high radial load capacity is essential. The steel construction ensures durability even in demanding environments.
Where Is K210X220X42 Bearing Used?
You’ll often find K210X220X42 Bearing in automotive transmissions, where its compact design and high-speed capability improve performance. It’s also a reliable choice for industrial gearboxes, thanks to its robust needle roller design.
Built for Heavy-Duty Use: K210X220X42 Bearing
K210X220X42 Bearing excels in applications like conveyor systems and printing presses, where consistent performance under heavy loads is key. The steel cage and needles provide long-lasting reliability.
Automotive vs Industrial: Applications of K210X220X42 Bearing
In automotive settings, K210X220X42 Bearing supports components like differential systems, while in industrial machinery, it handles high radial loads in pumps and compressors. Its versatility makes it a popular choice across sectors.
Perfect Fit for Automation: K210X220X42 Bearing
K210X220X42 Bearing is ideal for robotic arms and automated assembly lines, where precision and smooth operation are critical. The metric sizing ensures compatibility with a wide range of equipment.
