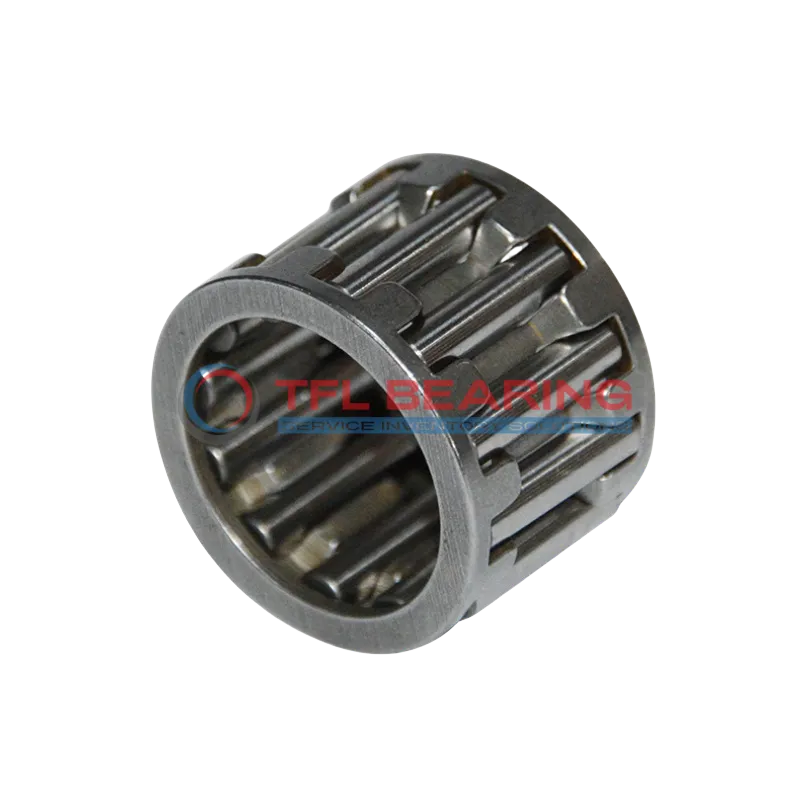

Needle Roller And Cage Assemblies K20X24X13

Needle Roller And Cage Assemblies K20X24X13

The K20X24X13 is a compact needle roller and cage assembly with a 20mm bore and 24mm outer diameter, crafted from sturdy steel. It handles radial loads up to 2205 lbf and spins efficiently at speeds up to 21300 RPM.
Its single-row design and steel cage provide reliable performance, while the lightweight construction (just 9g) makes it easy to handle. The assembly operates smoothly in temperatures from -30°C to 110°C.
This model is interchangeable with INA bearings, offering a practical replacement option. Perfect for applications like gear pumps or small engines where space is limited but high load capacity is needed.
Compliant with RoHS standards, it’s a safe and durable choice for various industrial uses. Its slim profile (13mm width) fits neatly into tight spaces without compromising strength.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K20X24X13
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 20 mm
  • Outer Dia 24 mm
  • Width 13 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 2205 lbf
  • Static Radial Load 3218 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 21300 rpm
  • Weight 9 g

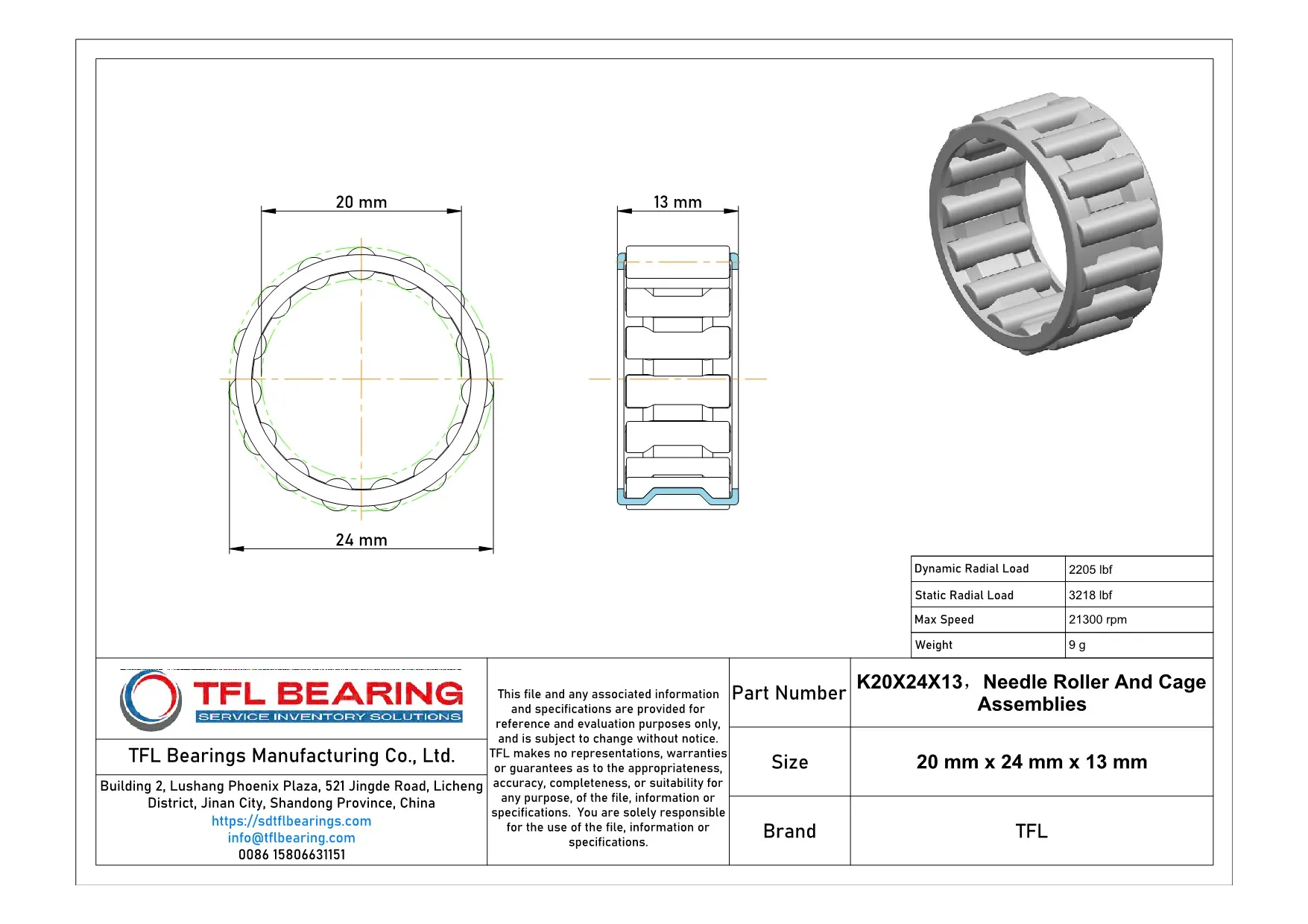

Needle Roller And Cage Assemblies K20X24X13 dimension drawing
Download DWG Download PDF

Features

How Does K20X24X13 Bearing Achieve High-Speed Performance?
K20X24X13 Bearing features a steel cage and needles, ensuring durability and smooth operation at high speeds.
With a maximum speed of 21,300 rpm, it is suitable for demanding applications requiring rapid rotation.
The single-row construction of K20X24X13 Bearing provides excellent radial load capacity, handling up to 2205 lbf dynamically.
Its compact design, with a width of just 13 mm, makes it ideal for space-constrained installations.
K20X24X13 Bearing operates efficiently within a temperature range of -30° to 110 °C, ensuring reliability in varied conditions.
The steel materials used enhance its resistance to wear, prolonging its service life.

Application

Key Fields for K20X24X13 Bearing
K20X24X13 Bearing is widely used in industrial gearboxes, where its compact design and high load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding environments.
In automotive applications, K20X24X13 Bearing fits perfectly in transmission systems, providing smooth rotation under high radial loads. Its metric sizing makes it a versatile choice for various vehicle models.
For automation equipment, K20X24X13 Bearing’s high-speed capability supports precise movements in robotic arms and conveyor systems. The single-row design simplifies installation and maintenance.
In consumer electronics, K20X24X13 Bearing can be found in small appliances like printers, where its lightweight and reliability are key advantages. The steel cage enhances longevity even with frequent use.
