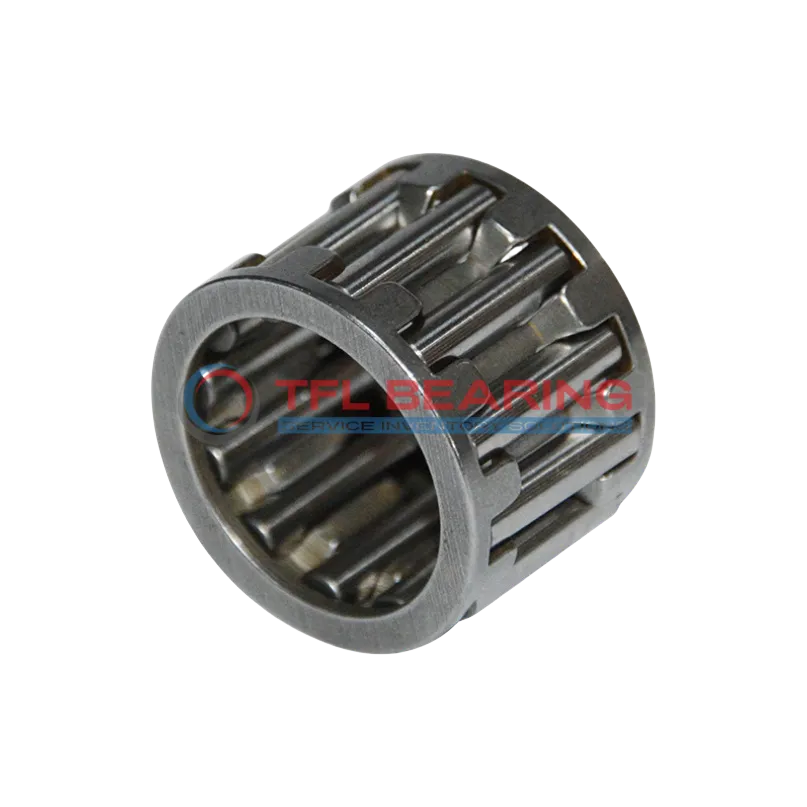

Needle Roller And Cage Assemblies K20X24X10

Needle Roller And Cage Assemblies K20X24X10

The K20X24X10 is a compact needle roller and cage assembly with a 20mm bore and 24mm outer diameter, crafted from sturdy steel. It handles radial loads up to 2002 lbf and spins smoothly at speeds up to 21300 RPM.
Its single-row design with a steel cage ensures durability and efficient load distribution. The assembly operates well in temperatures ranging from -30°C to 110°C.
This model is interchangeable with INA bearings, offering a reliable replacement option. Ideal for applications like gear pumps or small machinery where space is limited but performance is key.
Weighing just 6.5g, it’s lightweight yet robust for its size, and complies with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K20X24X10
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 20 mm
  • Outer Dia 24 mm
  • Width 10 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 2002 lbf
  • Static Radial Load 2835 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 21300 rpm
  • Weight 6.5 g
Needle Roller And Cage Assemblies K20X24X10 dimension drawing
Download DWG Download PDF

Features

How Does K20X24X10 Bearing Achieve High-Speed Performance?
K20X24X10 Bearing features a steel cage and needles, ensuring durability and smooth operation at high speeds.
Its dynamic radial load capacity of 2002 lbf makes it suitable for demanding applications.
The compact design with a 20 mm bore and 24 mm outer diameter offers space-saving benefits.
With a maximum speed of 21,300 rpm, it delivers reliable performance in high-speed environments.
K20X24X10 Bearing operates efficiently within a temperature range of -30° to 110 °C.
Its lightweight construction at just 6.5 g reduces overall system weight.

Application

Industrial Uses of K20X24X10 Bearing
K20X24X10 Bearing is commonly used in industrial gearboxes, where its compact design and high load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding environments.
Where Is K20X24X10 Bearing Used?
In automotive applications, K20X24X10 Bearing fits well in transmission systems, providing smooth rotation under radial loads. Its metric dimensions make it a versatile choice for various vehicle models.
Built for Heavy-Duty Use: K20X24X10 Bearing
For automation equipment, K20X24X10 Bearing offers reliable performance in robotic arms and conveyor systems. The high-speed capability ensures efficient operation in continuous-use scenarios.
Medical vs Industrial: Where K20X24X10 Bearing Excels
In medical devices, K20X24X10 Bearing’s precision and low weight are beneficial for portable equipment. However, it truly shines in industrial settings where heavy loads are common.
Key Fields for K20X24X10 Bearing
K20X24X10 Bearing is a go-to solution for small electric motors, thanks to its lightweight design and high-speed tolerance. The steel needles provide excellent wear resistance over time.
