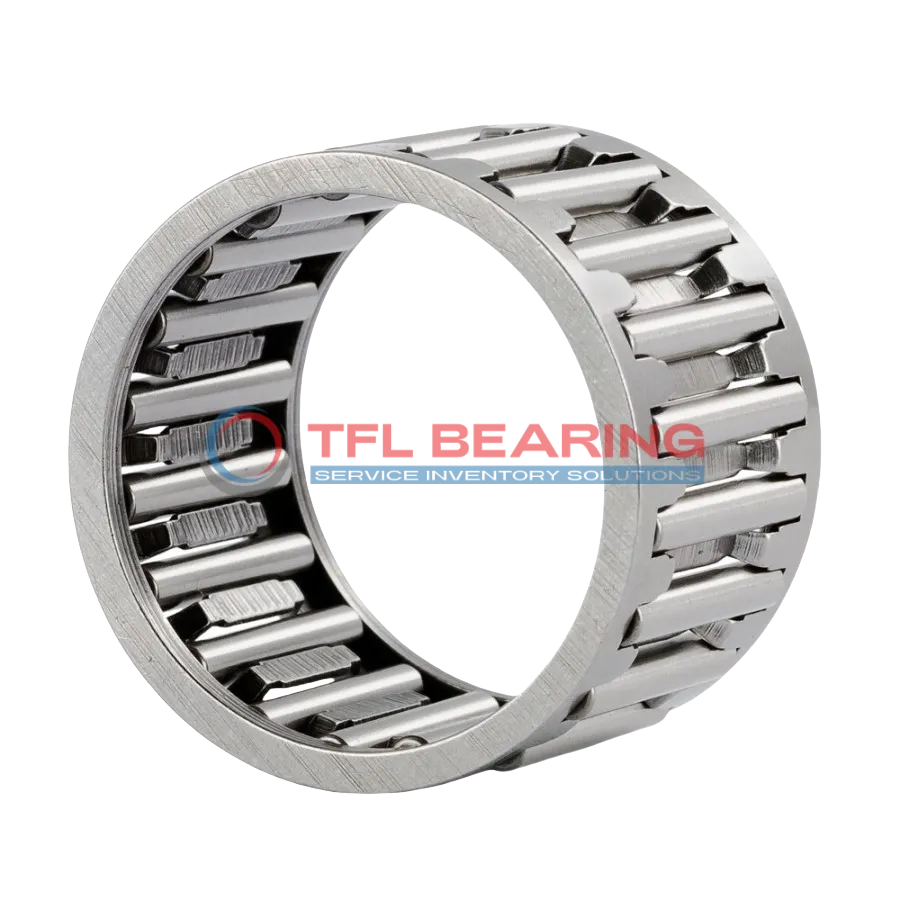

Needle Roller And Cage Assemblies K19x23x17

Needle Roller And Cage Assemblies K19x23x17

The K19x23x17 is a compact needle roller and cage assembly, measuring 19mm in bore diameter and 23mm outside, with a width of just 17mm. Made from sturdy steel, it’s built to handle radial loads up to 2812 lbf.
Its single-row design and steel cage ensure smooth operation even at high speeds, reaching up to 21800 RPM. The lightweight construction, at only 11g, makes it easy to handle during installation.
This assembly is interchangeable with INA bearings, offering a reliable alternative for replacements. It performs well in temperatures ranging from -30°C to 110°C, suitable for various industrial environments.
Ideal for applications like gear pumps or small machinery where space is limited but performance is key. RoHS compliant for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K19x23x17
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 19 mm
  • Outer Dia 23 mm
  • Width 17 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 2812 lbf
  • Static Radial Load 4320 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 21800 rpm
  • Weight 11 g
Needle Roller And Cage Assemblies K19x23x17 dimension drawing
Download DWG Download PDF

Features

Why Choose K19x23x17 Bearing for Precision Tasks?
K19x23x17 Bearing features a steel cage and needles, ensuring precise alignment and smooth operation.
Its dynamic radial load capacity of 2812 lbf makes it suitable for high-performance applications.
The compact design with a width of 17 mm allows for easy integration into tight spaces.
With a maximum speed of 21,800 rpm, it delivers reliable performance in high-speed environments.
K19x23x17 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its lightweight construction at just 11 g reduces overall system weight without compromising durability.

Application

Key Fields for K19x23x17 Bearing
K19x23x17 Bearing is commonly used in industrial gearboxes, where its compact design and high load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding conditions.
In automotive applications, K19x23x17 Bearing fits well in transmission systems, providing smooth rotation under high radial loads. Its metric sizing makes it a versatile choice for various vehicle models.
For automation equipment, K19x23x17 Bearing supports precise movements in robotic arms and conveyor systems. The high-speed capability allows it to handle rapid operations without compromising performance.
In household appliances like washing machines, K19x23x17 Bearing offers reliable performance with minimal maintenance. Its lightweight design helps reduce overall machine weight while maintaining efficiency.
