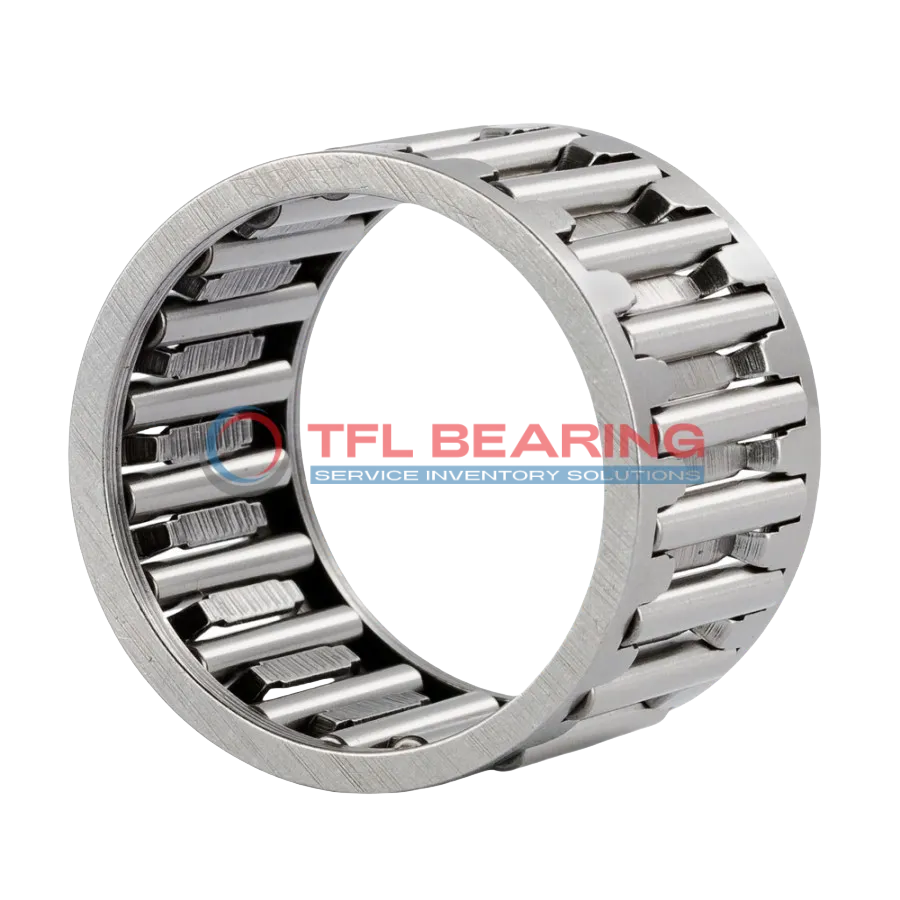

Needle Roller And Cage Assemblies K18X24X13

Needle Roller And Cage Assemblies K18X24X13

The K18X24X13 is a compact needle roller and cage assembly with an 18mm bore and 24mm outer diameter, crafted from sturdy steel. It handles radial loads up to 2948 lbf and spins smoothly at speeds up to 21800 RPM.
Its single-row design with a steel cage ensures reliable performance in tight spaces. The assembly operates well in temperatures ranging from -30°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for applications like gearboxes or small machinery where space is limited.
Weighing just 13g, it’s lightweight yet durable. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K18X24X13
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 18 mm
  • Outer Dia 24 mm
  • Width 13 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 2948 lbf
  • Static Radial Load 3442 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 21800 rpm
  • Weight 13 g
Needle Roller And Cage Assemblies K18X24X13 dimension drawing
Download DWG Download PDF

Features

Why Choose K18X24X13 Bearing for Precision Tasks?
K18X24X13 Bearing features a steel cage and needles, ensuring precise alignment and smooth operation.
Its dynamic radial load capacity of 2948 lbf makes it suitable for high-performance applications.
The compact design with a width of 13 mm allows for easy integration into tight spaces.
With a maximum speed of 21,800 rpm, it delivers reliable performance in high-speed conditions.
K18X24X13 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its lightweight construction at just 13 g reduces overall system weight without compromising durability.

Application

Key Fields for K18X24X13 Bearing
K18X24X13 Bearing is commonly used in industrial gearboxes, where its compact design and high load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding environments.
In automotive applications, K18X24X13 Bearing fits well in transmission systems, providing smooth rotation under high radial loads. Its metric sizing makes it a versatile choice for various vehicle models.
For automation equipment, K18X24X13 Bearing supports precise movements in robotic arms and conveyor systems. The high-speed capability allows for efficient operation in fast-paced production lines.
In medical devices, K18X24X13 Bearing’s reliability is valued in imaging equipment and lab instruments. The steel needles and cage offer long-lasting performance with minimal maintenance.
Household appliances like printers and power tools benefit from K18X24X13 Bearing’s compact size and efficient operation. Its lightweight design doesn’t compromise on strength or durability.
