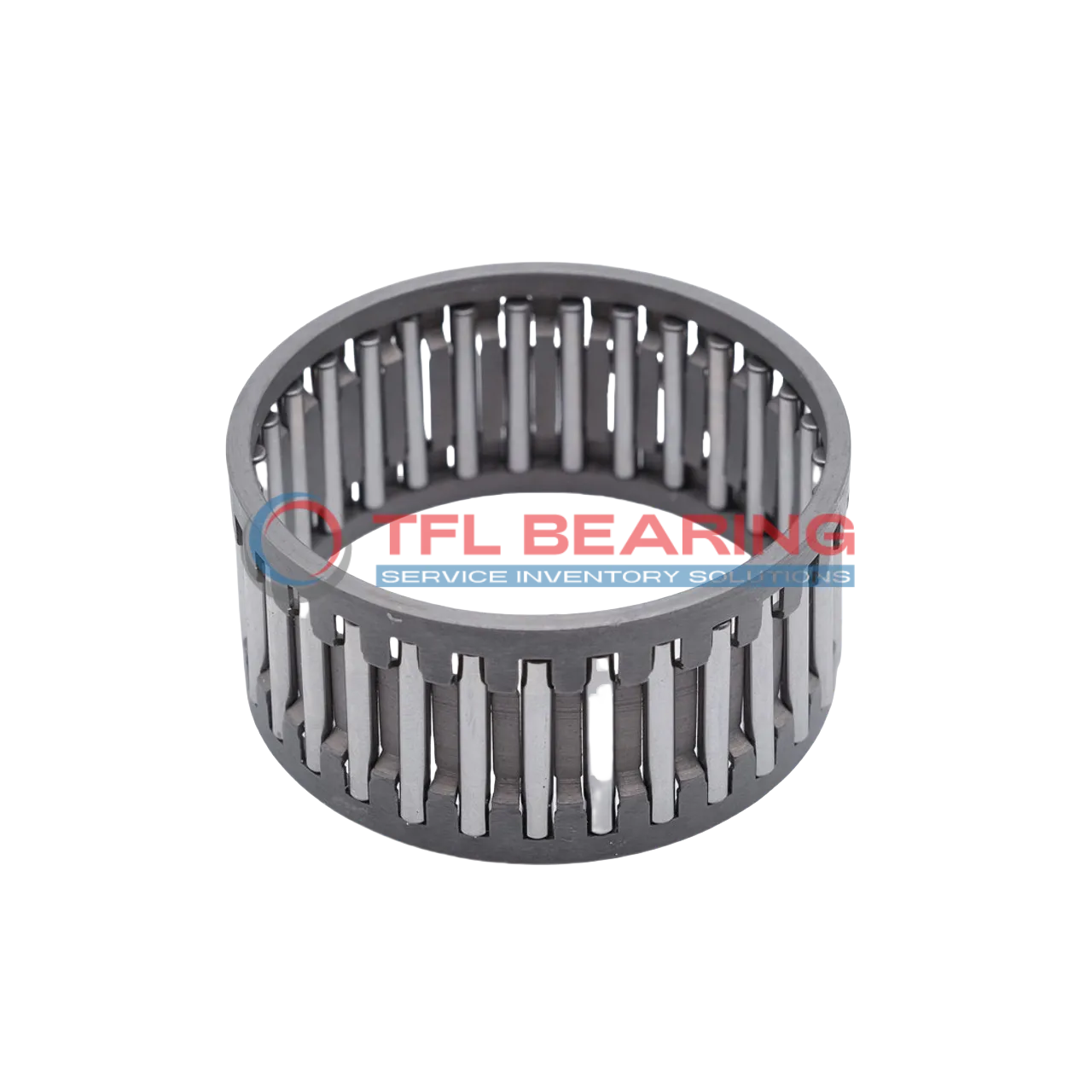

Needle Roller And Cage Assemblies C404616

Needle Roller And Cage Assemblies C404616

The C404616 is a needle roller and cage assembly with a 2.5″ bore and 2.875″ outer diameter, designed for inch-based systems. Made from sturdy steel, it handles radial loads up to 13950 lbf and spins smoothly at speeds up to 7200 RPM.
Its single-row construction with a steel cage ensures reliable performance under heavy loads. The compact 1″ width makes it suitable for tight spaces where durability is key.
This assembly works well in temperatures from -30°C to 110°C and is interchangeable with INA bearings. Ideal for applications like gearboxes, pumps, or industrial machinery requiring high radial load capacity.
Weighing just 121.4g, it’s lightweight yet robust. Compliant with RoHS standards for safe use in various environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number C404616
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 2.5"
  • Outer Dia 2.875"
  • Width 1"
  • System of Measurement Inch
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series C Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 13950 lbf
  • Static Radial Load 27225 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 7200 rpm
  • Weight 121.4 g
Needle Roller And Cage Assemblies C404616 dimension drawing
Download DWG Download PDF

Features

Performance Features of C404616 Bearing
C404616 Bearing is built with a sturdy steel cage and needles, ensuring reliable performance under heavy loads.
Its dynamic radial load capacity of 13,950 lbf makes it suitable for demanding industrial applications.
The single-row construction of C404616 Bearing provides stability and precision in high-speed operations.
With a maximum speed of 7,200 rpm, it delivers consistent performance in various conditions.
C404616 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its steel components offer durability and resistance to wear, extending the bearing’s service life.
The inch-sized dimensions of C404616 Bearing make it compatible with a wide range of machinery.
Its lightweight design at 121.4 g ensures easy handling without compromising strength.

Application

Common Applications of C404616 Bearing
C404616 Bearing is widely used in industrial gearboxes, where its needle roller design efficiently handles high radial loads in compact spaces. The steel construction ensures durability even in demanding environments.
In automotive transmissions, C404616 Bearing provides smooth operation for components like differential gears and drive shafts. Its inch sizing makes it a convenient choice for many North American vehicle models.
For automation systems, C404616 Bearing’s high-speed capability suits robotic arms and conveyor mechanisms. The single-row design offers reliable performance without adding unnecessary bulk.
Medical imaging devices benefit from C404616 Bearing’s precision, particularly in rotating components that require consistent movement. The steel cage maintains stability during prolonged use.
Household appliances like washing machines often use C404616 Bearing in their drum assemblies. Its balanced performance ensures quiet operation and long service life.
