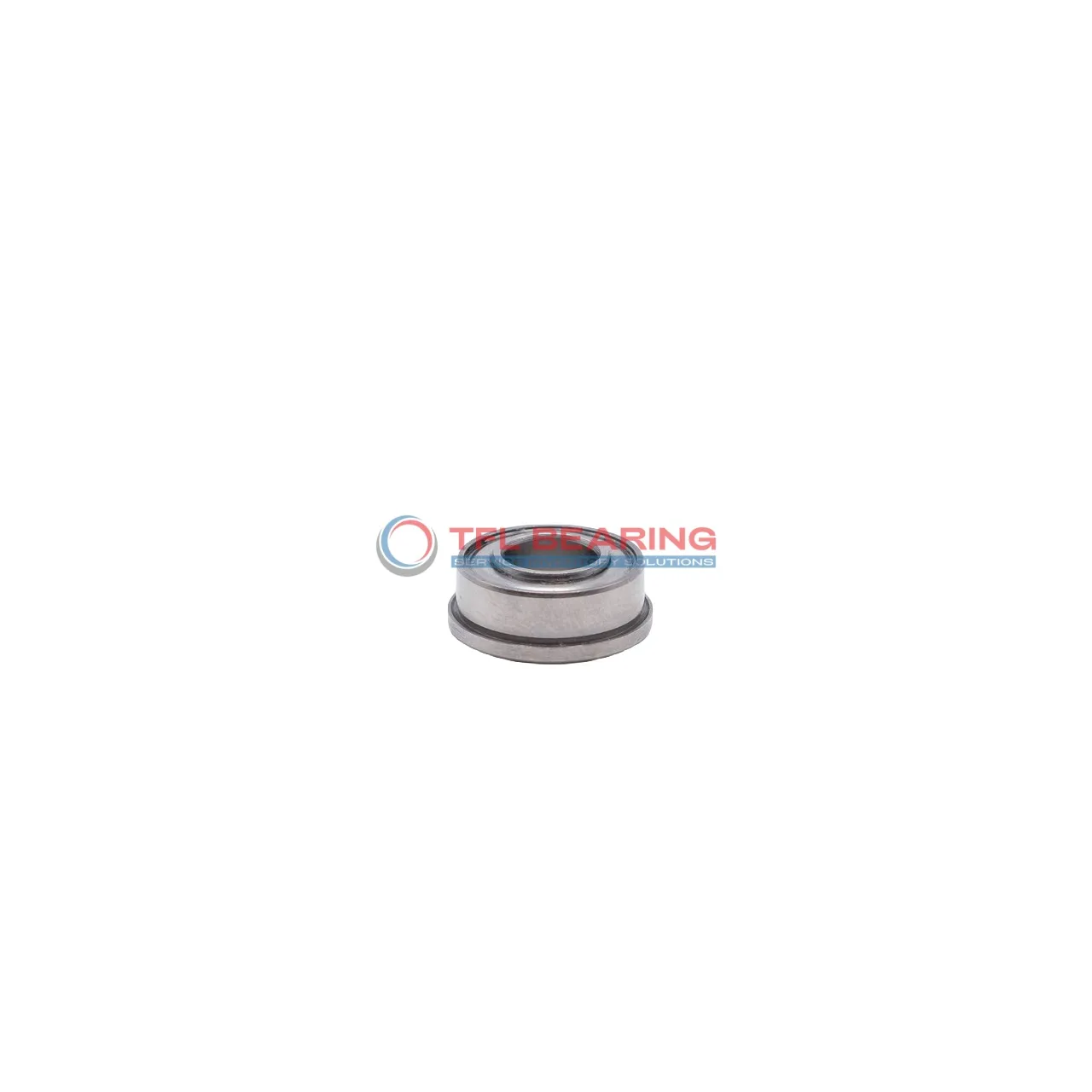

Miniature Flanged Ball Bearings With Extended Inner Ring SFRW0zz

Miniature Flanged Ball Bearings With Extended Inner Ring SFRW0zz

The SFRW0zz is a miniature flanged ball bearing with a tiny 0.04688″ bore and 0.15625″ outer diameter, crafted entirely from stainless steel for durability. It handles radial loads up to 19 lbf and spins remarkably fast at 99,000 RPM.

Its shielded design keeps out dust while the extended inner ring simplifies mounting in tight spaces. The flange adds stability, making it less likely to shift during operation.

This bearing is ideal for small, high-speed devices like dental tools or precision instruments. It operates smoothly in temperatures from -86°F to 230°F.

Weighing just 0.20g, it’s incredibly lightweight yet robust. Pre-lubrication is required for optimal performance. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SFRW0zz
  • Brand TFL
  • Interchangeable EZO
  • System of Measurement Inch
  • Bore Dia 0.04688"
  • Bore Dia Tolerance -0.0003" to 0"
  • Outer Dia 0.15625"
  • Outer Dia Tolerance -0.0003" to 0"
  • Width 0.0937"
  • Width Tolerance -0.005" to 0"
  • Flange Outer Dia 0.203"
  • Flange Thickness 0.031"
  • External Diameter On Inner Ring 0.081"
  • Inner Ring Width 0.1249"
  • Ball Qty 7
  • Ball Dia 0.0236"
  • Radial Clearance 0.00008" to 0.0005"
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Extended
  • Seal Type Shielded
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Shield Material 300 Series Stainless Steel
  • Dynamic Radial Load 19 lbf
  • Static Radial Load 5 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 99000 rpm
  • Weight 0.20 g
  • Price（$） 19.224

Features

How Does SFRW0zz Bearing Achieve High-Speed Performance?

SFRW0zz Bearing is crafted with stainless steel rings and balls, ensuring smooth operation at speeds up to 99,000 rpm.

Its shielded design protects against contaminants while maintaining low friction for efficient performance.

The extended inner ring provides better mounting stability, making it ideal for precision applications.

With a dynamic radial load capacity of 19 lbf, it handles demanding tasks with ease.

Application

Key Fields for SFRW0zz Bearing
SFRW0zz Bearing is commonly used in small precision devices like dental drills and optical instruments, where its miniature size and shielded design prevent contamination. The stainless steel construction ensures it can handle frequent sterilisation in medical settings.

How Does SFRW0zz Bearing Support High-Speed Operations?
With a max speed of 99,000 rpm, SFRW0zz Bearing is ideal for high-speed applications such as miniature motors in drones or small fans. Its extended inner ring also simplifies installation in compact assemblies.

Perfect Fit for Automation: SFRW0zz Bearing
In robotic arms and 3D printers, SFRW0zz Bearing offers smooth motion thanks to its low radial clearance. The flange design provides extra stability, reducing misalignment in dynamic systems.

Medical vs Industrial: Where SFRW0zz Bearing Excels
While SFRW0zz Bearing works well in industrial sensors, its corrosion resistance makes it particularly suited for medical devices like lab equipment. The ABEC1 tolerance ensures reliable performance in both fields.
