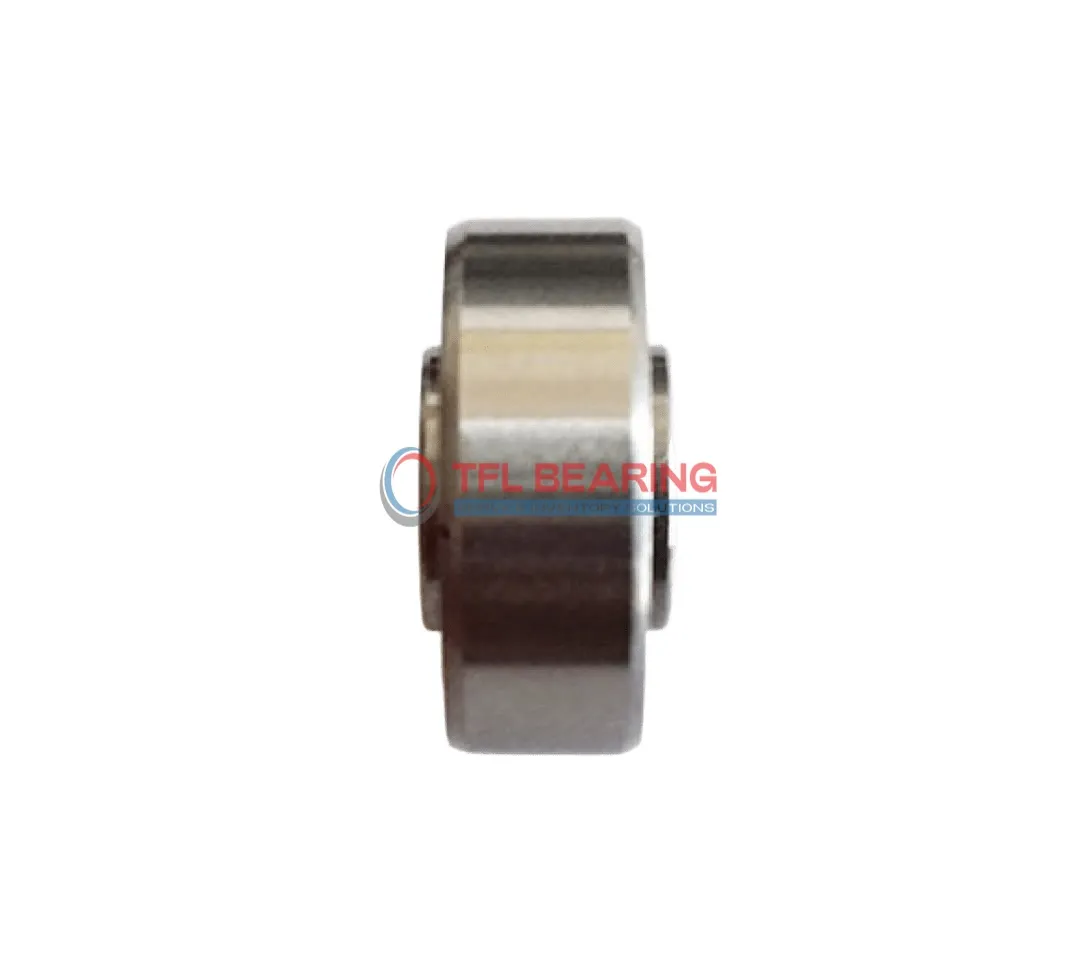

Miniature Ball Bearings with Extended Inner Ring SRW2-5

Miniature Ball Bearings with Extended Inner Ring SRW2-5

The SRW2-5 is a miniature ball bearing with an extended inner ring, measuring 0.125″ in bore diameter and 0.3125″ in outer diameter. Made entirely from stainless steel, it offers good corrosion resistance and durability.

This single-row bearing handles radial loads up to 96 lbf and can spin at speeds up to 54,000 RPM. Its open design requires regular lubrication but allows for easy maintenance.

The extended inner ring provides better mounting stability, while the ABEC1 tolerance ensures reliable performance. With a temperature range of -86°F to 230°F, it suits various environments.

Ideal for small mechanisms like dental tools or precision instruments where space is limited. Weighing just 0.74g, it’s lightweight yet sturdy for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SRW2-5
  • Brand TFL
  • Interchangeable EZO
  • Bore Dia 0.125"
  • Bore Dia Tolerance -0.0003" to 0"
  • Outer Dia 0.3125"
  • Outer Dia Tolerance -0.0003" to 0"
  • Width 0.1094"
  • Width Tolerance -0.005" to 0"
  • External Diameter On Inner Ring 0.173"
  • Inner Ring Width 0.1406"
  • Ball Qty 6
  • Ball Dia 0.0625"
  • Radial Clearance 0.00008" to 0.0005"
  • System of Measurement Inch
  • Seal Type Open
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Extended
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 96 lbf
  • Static Radial Load 29 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 54000 rpm
  • Weight 0.74 g
  • Price（$） 3.186
Miniature Ball Bearings with Extended Inner Ring SRW2-5 dimension drawing
Download DWG Download PDF

Features

Performance Features of SRW2-5 Bearing

SRW2-5 Bearing is crafted with stainless steel rings and balls, offering excellent corrosion resistance.
Its extended inner ring design provides easier mounting and better alignment in compact spaces.

The dynamic radial load capacity of 96 lbf ensures reliable performance in high-speed applications.
With a maximum speed of 54,000 rpm, it is ideal for precision instruments requiring smooth operation.

SRW2-5 Bearing operates efficiently in temperatures ranging from -86 to 230 °F.
Its open design allows for easy lubrication, enhancing longevity and reducing maintenance needs.

Application

Where Is SRW2-5 Bearing Used?
SRW2-5 Bearing is commonly used in small electric motors, where its compact size and extended inner ring help with easy installation and alignment. The stainless steel construction ensures it can handle light to moderate radial loads without corrosion issues.

In automation systems, SRW2-5 Bearing fits well in miniature robotic arms or small conveyor guides, thanks to its precise ABEC1 tolerance. The open design allows for straightforward lubrication, keeping maintenance simple in continuous operation.

For hobbyist projects like model trains or drones, SRW2-5 Bearing offers smooth rotation and durability. Its lightweight design and inch measurements make it a handy choice for DIY enthusiasts working with small-scale machinery.

Medical devices such as dental tools or lab equipment often rely on SRW2-5 Bearing for its consistent performance. The stainless steel materials meet hygiene standards while providing reliable operation in sensitive environments.
