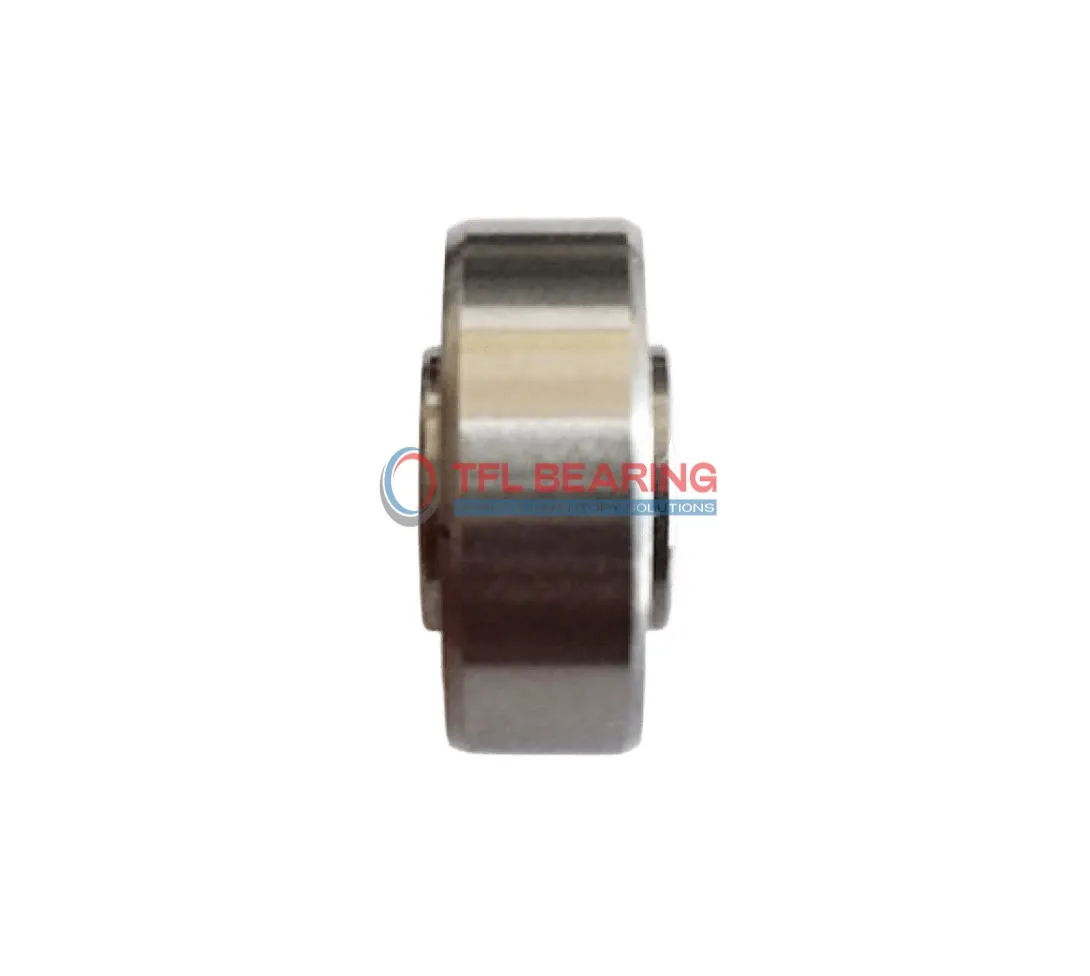

Miniature Ball Bearings with Extended Inner Ring RW2

Miniature Ball Bearings with Extended Inner Ring RW2

The RW2 is a compact miniature ball bearing with a 0.125″ bore and 0.375″ outer diameter, crafted from sturdy chrome steel. Its extended inner ring design offers easier handling and mounting in tight spaces.

This single-row bearing supports radial loads up to 121 lbf and spins smoothly at speeds up to 56,000 RPM. The open seal type allows for straightforward lubrication when needed.

With a lightweight build at just 1.37g, it’s ideal for small mechanisms like precision instruments or miniature motors. The bearing operates reliably in temperatures from -86°F to 230°F.

Compliant with RoHS and REACH standards, it’s a practical choice for both industrial and hobbyist applications where space is limited but performance matters.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RW2
  • Brand TFL
  • Interchangeable EZO
  • Bore Dia 0.125"
  • Bore Dia Tolerance -0.0003" to 0"
  • Outer Dia 0.375"
  • Outer Dia Tolerance -0.0003" to 0"
  • Width 0.1562"
  • Width Tolerance -0.005" to 0"
  • External Diameter On Inner Ring 0.2"
  • Inner Ring Width 0.1875"
  • Ball Qty 7
  • Ball Dia 0.0625"
  • Radial Clearance 0.00008" to 0.0005"
  • System of Measurement Inch
  • Seal Type Open
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Extended
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 121 lbf
  • Static Radial Load 39 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 56000 rpm
  • Weight 1.37 g
  • Price（$） 2.655
Miniature Ball Bearings with Extended Inner Ring RW2 dimension drawing
Download DWG Download PDF

Features

Performance Features of RW2 Bearing

RW2 Bearing features a chrome steel construction, ensuring durability and resistance to wear.
Its extended inner ring design provides better stability and ease of installation in compact spaces.

With a dynamic radial load capacity of 121 lbf, RW2 Bearing handles demanding radial loads efficiently.
The stainless steel cage maintains ball alignment, reducing friction and extending operational life.

RW2 Bearing operates smoothly at speeds up to 56,000 rpm, making it suitable for high-speed applications.
Its temperature range of -86 to 230 °F ensures reliable performance in varied environments.

The open seal design allows for easy lubrication, enhancing maintenance convenience.
Precision-engineered to ABEC1 standards, RW2 Bearing delivers consistent performance in miniature applications.

Application

Common Applications of RW2 Bearing
RW2 Bearing is widely used in small-scale machinery, such as precision instruments and miniature motors, where its compact size and radial load capacity are beneficial. The extended inner ring design simplifies installation in tight spaces.

What Makes RW2 Bearing a Preferred Choice?
In automation systems, RW2 Bearing ensures smooth operation in components like robotic arms and 3D printers. Its chrome steel construction offers durability, while the open seal allows for easy lubrication.

Ideal for Precision: RW2 Bearing
Medical devices, such as dental tools and lab equipment, often rely on RW2 Bearing for its consistent performance. The ABEC1 tolerance ensures reliable accuracy in sensitive applications.

Automotive vs Aerospace: Applications of RW2 Bearing
In automotive applications, RW2 Bearing supports small actuators and sensors, while in aerospace, it’s used in instrumentation panels. Its lightweight design and high-speed capability make it versatile.

Practical Applications of RW2 Bearing
For consumer electronics like printers and small fans, RW2 Bearing provides quiet and efficient operation. The stainless steel cage enhances longevity, even with frequent use.
