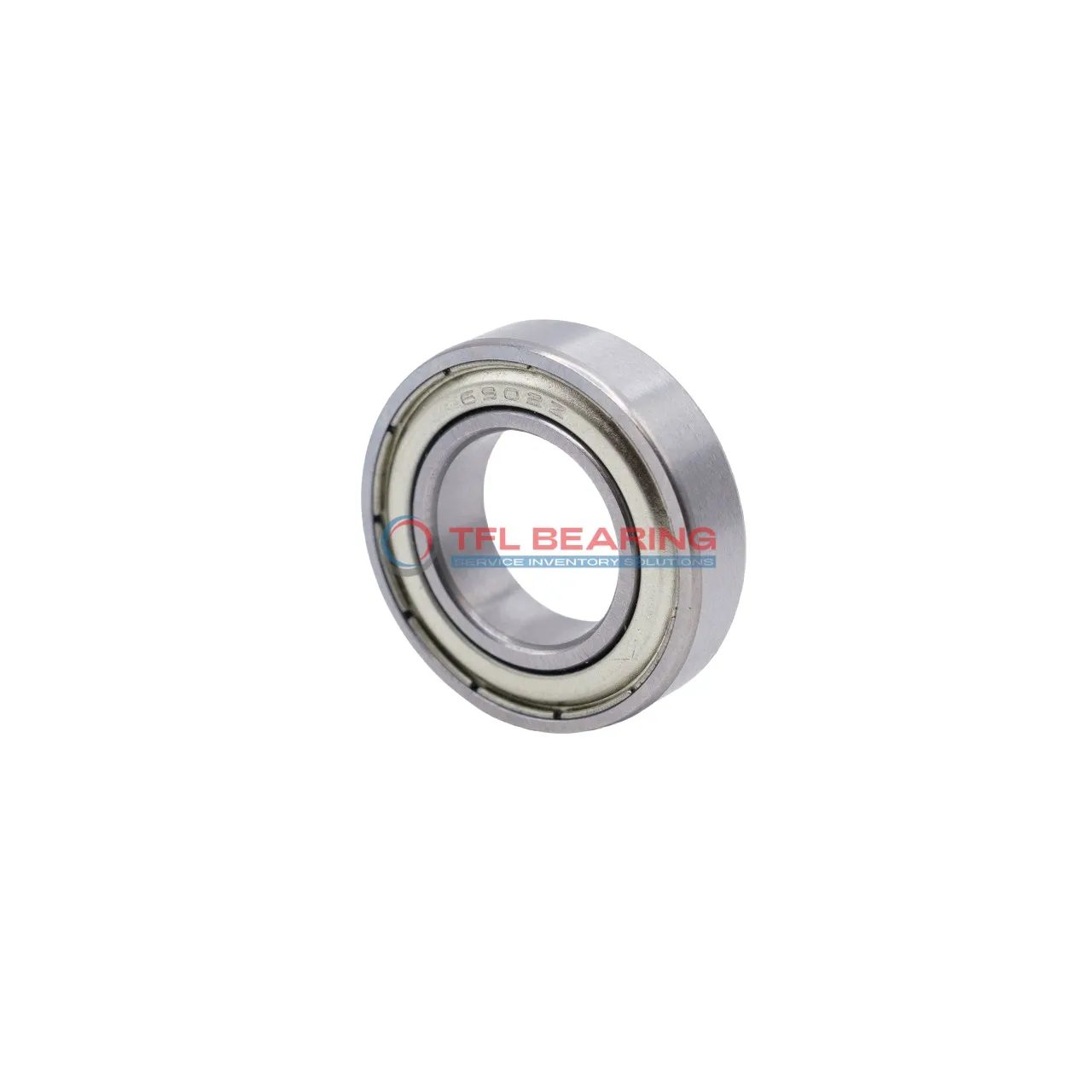

Metric Size Standard Miniature Ball Bearings S696zz

Metric Size Standard Miniature Ball Bearings S696zz

The S696zz is a compact stainless steel ball bearing with a 6mm bore and 15mm outer diameter, measuring just 5mm wide. It handles radial loads up to 231 lbf and spins smoothly at speeds up to 36,000 RPM.

Its shielded design keeps dust out while maintaining easy access for lubrication. The all-stainless construction ensures good corrosion resistance and durability.

This bearing suits small devices like drones, model cars, or miniature machinery where space is limited. It operates in temperatures from -30°C to 110°C.

Weighing only 3.65g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use in various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S696zz
  • Brand TFL
  • Interchangeable EZO
  • Bore Dia 6 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 15 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • Ball Qty 7
  • Ball Dia 2.3810 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Seal Type Shielded
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Shield Material 300 Series Stainless Steel
  • Dynamic Radial Load 231 lbf
  • Static Radial Load 85 lbf
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 36000 rpm
  • Weight 3.65 g
  • Price（$） 1.242

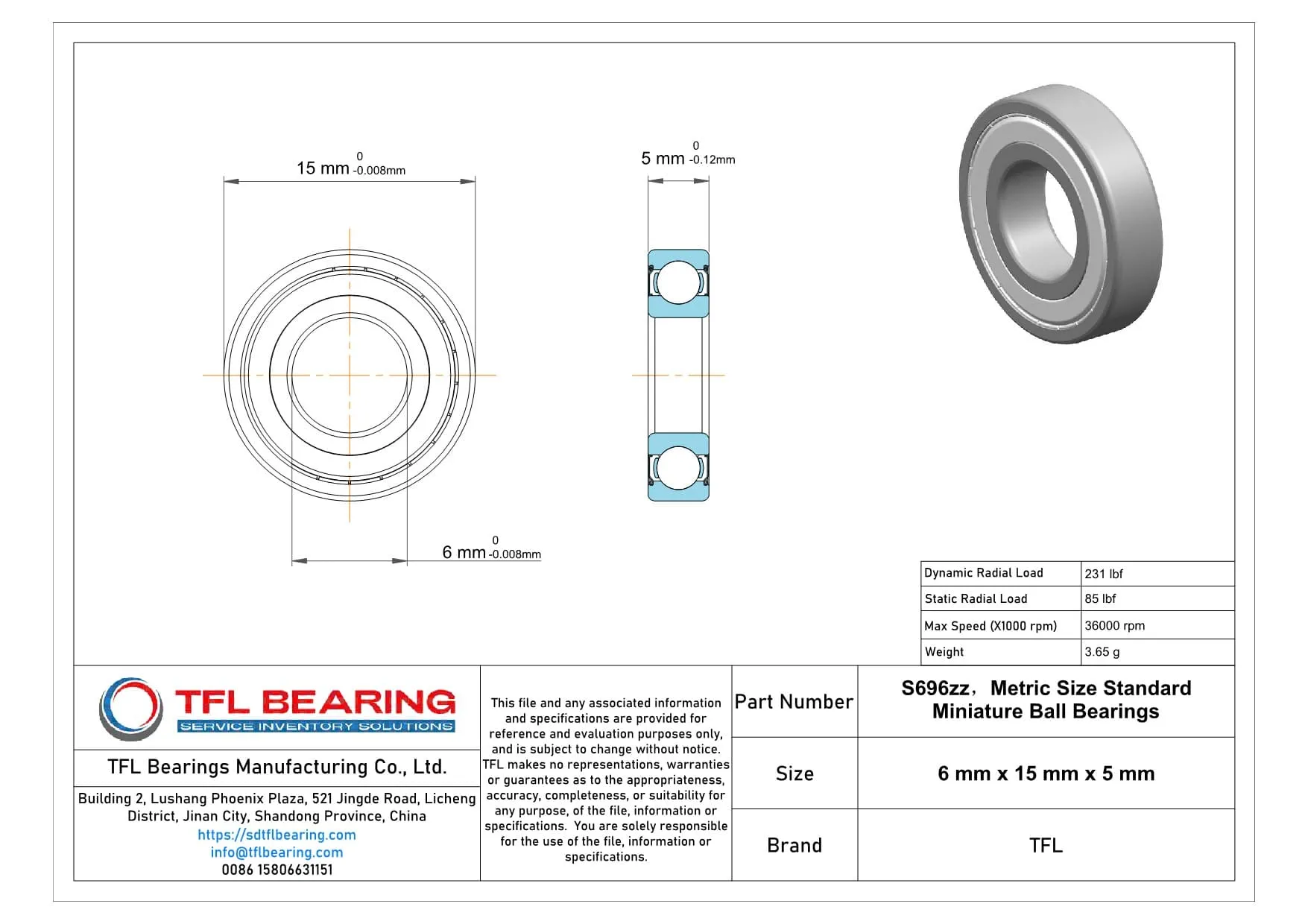

Metric Size Standard Miniature Ball Bearings S696zz dimension drawing
Download DWG Download PDF

Features

Why Choose S696zz Bearing for Precision Tasks?

S696zz Bearing features stainless steel rings and balls, ensuring smooth and precise rotation.
Its shielded design protects against dust while maintaining low friction for efficient operation.

With a dynamic radial load capacity of 231 lbf, it handles light to moderate loads reliably.
The ABEC1 tolerance class ensures consistent performance in precision applications.

S696zz Bearing operates at speeds up to 36,000 rpm, making it suitable for high-speed devices.
Its compact size (6 mm×15 mm×5 mm) fits seamlessly into miniature assemblies.

Application

Common Applications of S696zz Bearing
S696zz Bearing is widely used in small electric motors, such as those found in cooling fans or power tools, thanks to its compact size and shielded design. The stainless steel construction ensures it handles moderate radial loads while resisting corrosion.

In automation systems, S696zz Bearing fits neatly into robotic arms and 3D printer components, where smooth rotation is essential. Its ABEC1 tolerance offers reliable precision for repetitive movements.

For consumer electronics like printers or handheld devices, S696zz Bearing’s lightweight design and low noise operation make it a practical choice. The shielded seals help keep dust out, extending the bearing’s lifespan in everyday use.

Medical devices such as dental handpieces benefit from S696zz Bearing’s stainless steel materials, which meet hygiene standards. The small footprint allows integration into tight spaces without compromising performance.
