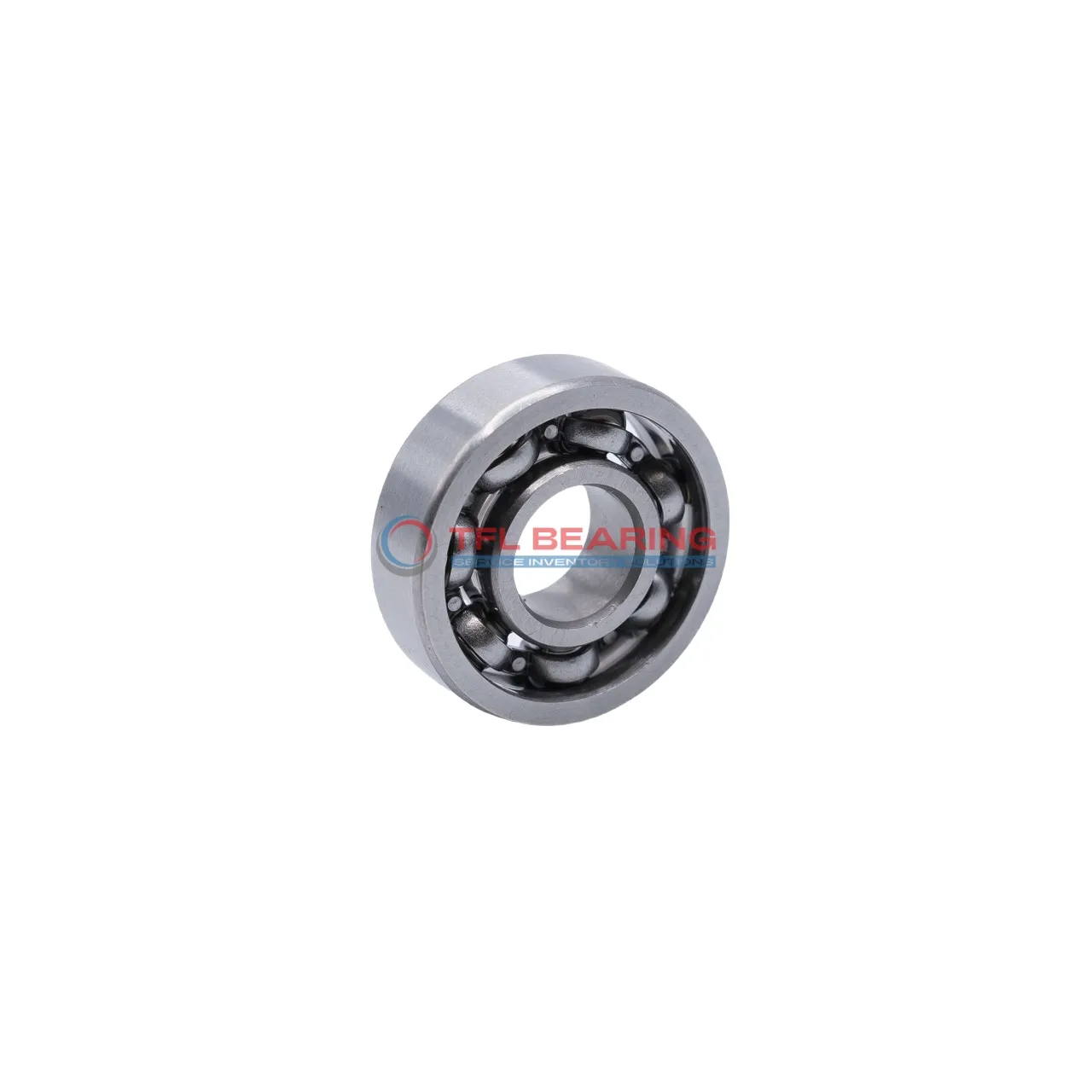

Metric Size Standard Miniature Ball Bearings S625

Metric Size Standard Miniature Ball Bearings S625

The S625 is a compact miniature ball bearing with a 5mm bore and 16mm outer diameter, crafted entirely from stainless steel for durability. It handles radial loads up to 298 lbf and spins smoothly at speeds up to 32,400 RPM.

Its open design allows for easy lubrication, while the stainless steel cage ensures reliable performance. With a radial clearance of 0.002mm to 0.013mm, it offers smooth operation.

This bearing is ideal for small applications like model-making or precision instruments where space is limited. Its lightweight design, at just 4.95g, makes it easy to integrate into compact assemblies.

Compliant with RoHS and REACH standards, it’s safe for use in various environments. Suitable for temperatures ranging from -30°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S625
  • Brand TFL
  • Interchangeable EZO
  • Bore Dia 5 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 16 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • Ball Qty 7
  • Ball Dia 2.7780 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Seal Type Open
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 298 lbf
  • Static Radial Load 109 lbf
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 32400 rpm
  • Weight 4.95 g
  • Price（$） 1.242
Metric Size Standard Miniature Ball Bearings S625 dimension drawing
Download DWG Download PDF

Features

How Does S625 Bearing Reduce Friction?

S625 Bearing features stainless steel construction, ensuring smooth operation with minimal friction.
Its single-row design and seven precision balls distribute loads evenly, enhancing efficiency.

The ABEC1 tolerance class guarantees consistent performance in radial applications.
With a maximum speed of 32,400 rpm, it balances speed and durability.

Open seal type allows for easy lubrication, maintaining optimal performance.
S625 Bearing’s compact size makes it ideal for miniature applications.

Application

Industrial Uses of S625 Bearing
S625 Bearing is commonly used in small industrial machinery, such as precision tools and measuring devices, where its compact size and radial load capacity are beneficial. The stainless steel construction ensures durability in various working conditions.

What Makes S625 Bearing a Preferred Choice?
In automotive applications, S625 Bearing fits well in small electric motors and gear mechanisms due to its lightweight design and high-speed capability. Its ABEC1 tolerance class provides reliable performance for everyday use.

Perfect Fit for Automation: S625 Bearing
For robotics and automation systems, S625 Bearing offers smooth operation in components like robotic arms and small actuators. The open seal design allows for easy lubrication, extending its service life.

Medical vs Industrial: Where S625 Bearing Excels
In medical devices, S625 Bearing is ideal for delicate instruments like dental tools or lab equipment, thanks to its precise movement and corrosion resistance. Industrial applications benefit from its robustness in conveyor systems and small pumps.

How Does S625 Bearing Support High-Speed Operations?
S625 Bearing performs well in consumer electronics, such as small fans and printers, where high-speed rotation is needed. The stainless steel balls and rings ensure quiet and efficient operation over time.
