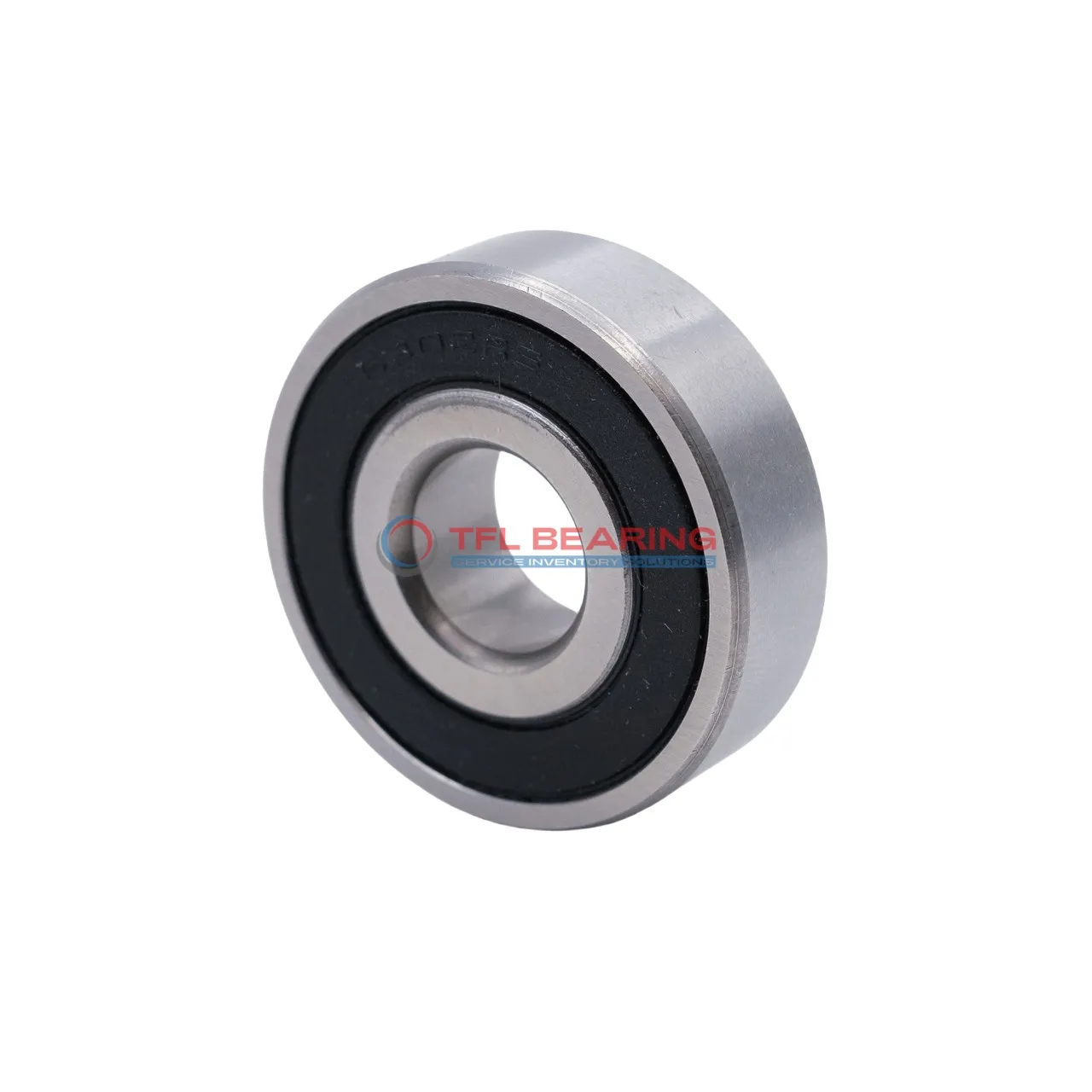

Metric Size Standard Miniature Ball Bearings S607 2rs

The S607 2RS is a compact, sealed miniature ball bearing measuring 7mm by 19mm by 6mm, crafted entirely from stainless steel for durability. It handles radial loads up to 402 lbf and spins smoothly at speeds up to 32,400 RPM.

Its double rubber seals keep out dust and moisture, making it low-maintenance, while the stainless steel cage ensures long service life. The bearing operates well in temperatures from -30°C to 110°C.

With an ABEC1 tolerance class, it offers reliable precision for small applications. Ideal for use in small motors, medical devices, or precision instruments where space is limited.

Weighing just 8.24 grams, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number S607 2rs
Brand TFL
Interchangeable EZO
Bore Dia 7 mm
Bore Dia Tolerance -0.008mm to 0
Outer Dia 19 mm
Outer Dia Tolerance -0.008mm to 0
Width 6 mm
Width Tolerance -0.12mm to 0
Ball Qty 6
Ball Dia 3.5000 mm
Radial Clearance 0.002mm to 0.013mm
Seal Type Sealed
System of Measurement Metric
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Inner Ring Type Standard
Tolerance Class ABEC1
Radial Clearance Trade No MC3
Ring Material Stainless Steel
Ball Material Stainless Steel
Cage Material Stainless Steel
Shield Material Nitrile Rubber
Dynamic Radial Load 402 lbf
Static Radial Load 145 lbf
Temperature Range -30° to 110 °C
Lubrication Required
RoHS Compliant
REACH Compliant
Max Speed 32400 rpm
Weight 8.24 g
Price（$） 1.242

Metric Size Standard Miniature Ball Bearings S607 2rs dimension drawing

Download DWG Download PDF

Features

Why Choose S607 2rs Bearing for Precision Tasks?

S607 2rs Bearing features a sealed design with stainless steel rings and balls, ensuring smooth operation in radial load applications.
Its ABEC1 tolerance class and MC3 radial clearance provide consistent performance for precision tasks.

The stainless steel cage maintains ball alignment, reducing friction and extending the bearing’s life.
With a maximum speed of 32,400 rpm, S607 2rs Bearing balances efficiency and durability.

S607 2rs Bearing works well in temperatures from -30° to 110°C, making it suitable for various environments.
Its nitrile rubber seals protect against dust and moisture, reducing maintenance needs.

Application

Where Is S607 2rs Bearing Used?
S607 2rs Bearing is commonly used in small electric motors, such as those found in household appliances like fans or blenders. Its sealed design helps keep out dust and moisture, ensuring longer service life.

In robotics, S607 2rs Bearing provides smooth rotation for joints and gears, thanks to its stainless steel construction. The compact size makes it ideal for tight spaces in automated systems.

For medical devices like dental tools, S607 2rs Bearing offers reliable performance with minimal maintenance. The ABEC1 tolerance ensures consistent operation in precision applications.

You’ll also find S607 2rs Bearing in consumer electronics, such as printers or small gadgets, where quiet operation is key. Its lightweight design doesn’t compromise on durability.
