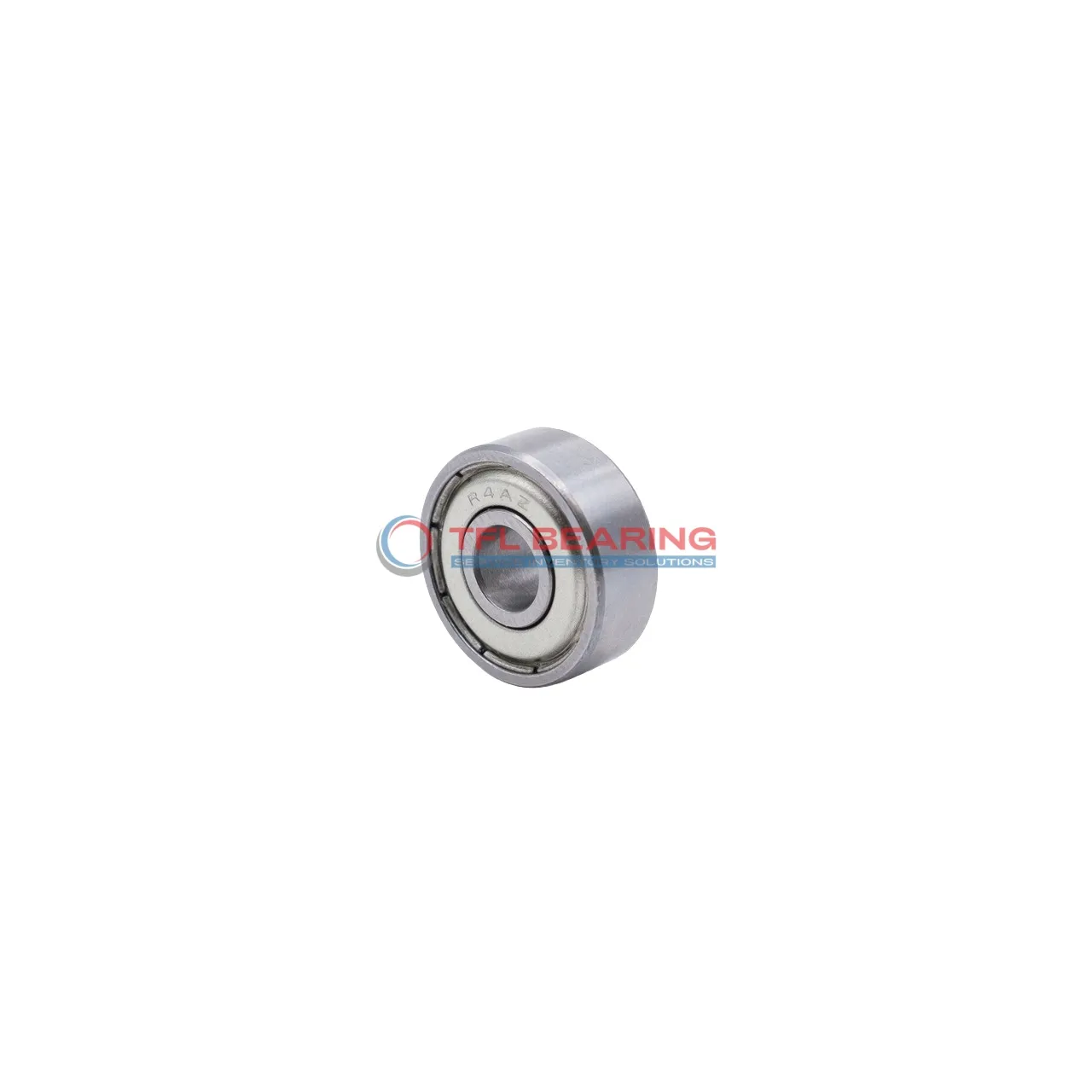

Metric Size Standard Miniature Ball Bearings S604zz

Metric Size Standard Miniature Ball Bearings S604zz

The S604zz is a compact miniature ball bearing with a 4mm bore and 12mm outer diameter, crafted entirely from stainless steel for durability. It handles radial loads up to 165 lbf and spins smoothly at speeds up to 43,200 RPM.

Its shielded design keeps out dust and debris while maintaining easy access for lubrication. The stainless steel cage and balls ensure long-lasting performance in various conditions.

This bearing operates well in temperatures from -30°C to 110°C, making it versatile for different environments. Ideal for small machinery, hobby projects, or precision instruments where space is limited.

Weighing just 2.34g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a reliable choice for eco-conscious applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S604zz
  • Brand TFL
  • Interchangeable EZO
  • Bore Dia 4 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 12 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 4 mm
  • Width Tolerance -0.12mm to 0
  • Ball Qty 7
  • Ball Dia 2.0000 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Seal Type Shielded
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Shield Material 300 Series Stainless Steel
  • Dynamic Radial Load 165 lbf
  • Static Radial Load 57 lbf
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 43200 rpm
  • Weight 2.34 g
  • Price（$） 1.242
Metric Size Standard Miniature Ball Bearings S604zz dimension drawing
Download DWG Download PDF

Features

Why Choose S604zz Bearing for Precision Tasks?

S604zz Bearing is crafted with stainless steel rings and balls, offering excellent corrosion resistance.
Its compact size of 4 mm×12 mm×4 mm makes it ideal for precision instruments and small machinery.

The shielded design protects against dust and debris, ensuring smooth operation.
With a dynamic radial load capacity of 165 lbf, it handles light to moderate loads efficiently.

S604zz Bearing achieves a maximum speed of 43,200 rpm, suitable for high-speed applications.
The stainless steel cage maintains ball alignment, reducing friction and wear.

Its ABEC1 tolerance class ensures reliable performance in various conditions.
The radial clearance range of 0.002mm to 0.013mm allows for precise movement.

Application

Key Fields for S604zz Bearing
S604zz Bearing is commonly used in small electric motors, like those found in cooling fans or power tools, where its compact size and shielded design keep dust out. The stainless steel construction ensures it handles everyday wear without rusting.

What Makes S604zz Bearing a Preferred Choice?
In automation systems, S604zz Bearing works well in robotic arms and 3D printers due to its smooth rotation and low friction. Its ABEC1 tolerance provides reliable performance for precise movements.

Designed for Versatility: S604zz Bearing
This bearing fits nicely into medical devices such as dental drills, where hygiene and durability matter. The stainless steel materials make it easy to clean and sterilise regularly.

Light-Duty vs Heavy-Duty: Best Uses for S604zz Bearing
For light-duty tasks like office printers, S604zz Bearing offers quiet operation and long life. In heavier applications, its dynamic load capacity keeps small machinery running smoothly.
