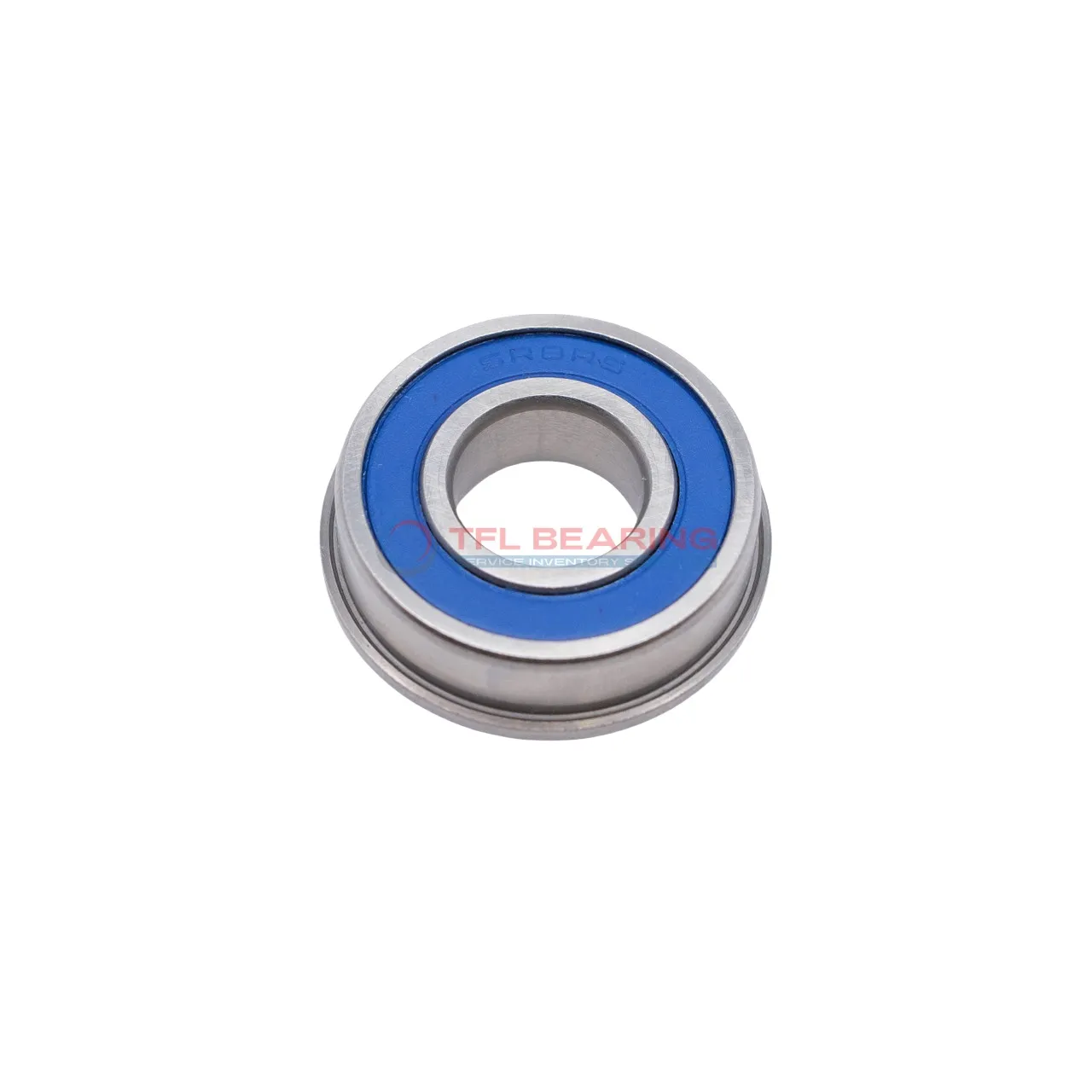

Metric Size Miniature Flanged Ball Bearings SMF95 2rs

Metric Size Miniature Flanged Ball Bearings SMF95 2rs

The SMF95 2RS is a compact, sealed ball bearing with a 5mm bore and 9mm outer diameter, crafted entirely from stainless steel for durability. It handles radial loads up to 74 lbf and spins smoothly at speeds up to 45,000 RPM.

Its nitrile rubber seals keep dirt out while retaining lubrication, making it low-maintenance. The flange design adds stability, with a 10.2mm outer diameter for secure fitting.

This bearing suits small, high-speed devices like dental tools or miniature motors, operating in temperatures from -30°C to 110°C. Weighing just 0.66g, it’s lightweight yet robust.

Compliant with RoHS and REACH standards, it’s a reliable choice for precision applications where space and speed matter. The ABEC1 tolerance ensures consistent performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SMF95 2rs
  • Brand TFL
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Dia 5 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 9 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 3 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 10.2 mm
  • Flange Thickness 0.6 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Ball Qty 8
  • Ball Dia 1.2000 mm
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Sealed
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 74 lbf
  • Static Radial Load 27 lbf
  • Max Speed 45000 rpm
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.66 g
  • Shield Material Nitrile Rubber
  • Price（$） 1.62
Metric Size Miniature Flanged Ball Bearings SMF95 2rs dimension drawing
Download DWG Download PDF

Features

How Does SMF95 2rs Bearing Reduce Friction?

SMF95 2rs Bearing features stainless steel rings and balls, ensuring smooth operation with minimal friction.
Its sealed design protects against contaminants, maintaining consistent performance over time.
With a dynamic radial load capacity of 74 lbf, it handles moderate loads efficiently.
The ABEC1 tolerance class ensures reliable precision for various applications.

Why Choose SMF95 2rs Bearing for Precision Tasks?

SMF95 2rs Bearing is designed with a single-row construction, offering precise radial load support.
The stainless steel cage and balls enhance durability while reducing wear.
Its compact size, with a bore diameter of 5 mm, makes it ideal for small, precision instruments.
The sealed design keeps lubrication intact, ensuring long-term performance.

Engineered for Precision: SMF95 2rs Bearing

SMF95 2rs Bearing’s stainless steel construction provides excellent corrosion resistance.
The nitrile rubber seal shields against dust and moisture, extending its lifespan.
With a maximum speed of 45,000 rpm, it delivers high-speed performance reliably.
Its lightweight design at 0.66 g ensures easy integration into compact systems.

Application

Key Fields for SMF95 2rs Bearing
SMF95 2rs Bearing is commonly used in small electric motors, such as those in cooling fans or miniature pumps, where its compact size and sealed design prevent dust ingress. The stainless steel construction ensures longevity even in humid environments.

In robotics, SMF95 2rs Bearing provides smooth rotation for joints and small actuators, thanks to its low friction and high-speed capability. Its lightweight design is ideal for precision movements in automated systems.

For consumer electronics like handheld devices, SMF95 2rs Bearing offers reliable performance in components requiring quiet operation. The nitrile rubber seal helps maintain lubrication, reducing maintenance needs over time.

Medical instruments benefit from SMF95 2rs Bearing’s hygienic stainless steel build, suitable for devices like dental tools or lab equipment. The sealed design also minimises contamination risks in sterile environments.
