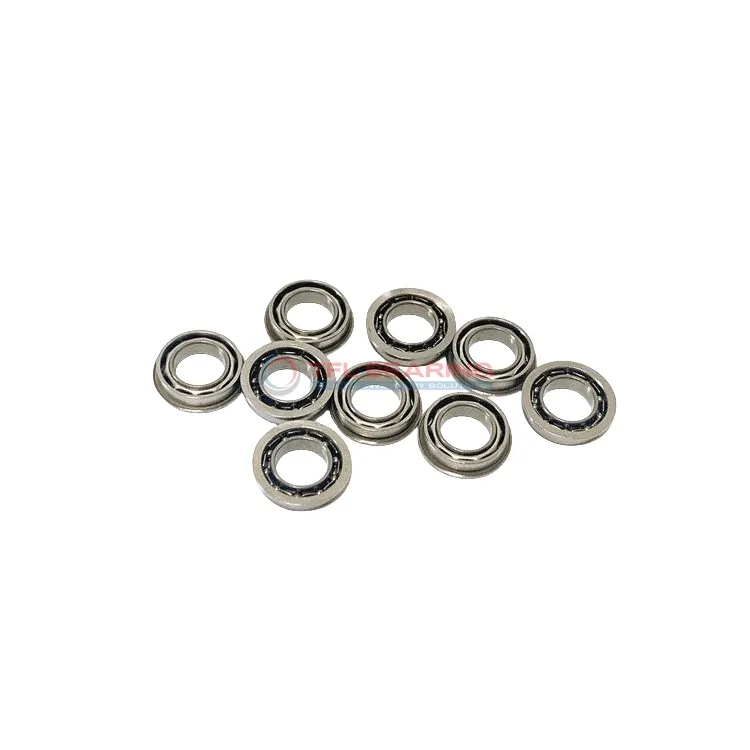

Metric Size Miniature Flanged Ball Bearings SMF52

Metric Size Miniature Flanged Ball Bearings SMF52

The SMF52 is a small radial ball bearing with a 2mm bore and 5mm outer diameter, crafted entirely from stainless steel for durability. It handles radial loads up to 29 lbf and spins at impressive speeds up to 76,500 RPM.

Its open design and ABEC1 tolerance ensure smooth operation, while the stainless steel cage adds strength. The bearing requires lubrication for optimal performance and works in temperatures from -30°C to 110°C.

With a compact width of just 2mm and a lightweight 0.19g build, it fits snugly in tight spaces. The flange design (6.2mm outer diameter) helps keep it securely in place during high-speed use.

Ideal for precision devices like small motors or dental tools where space and speed are key. Compliant with RoHS and REACH standards for safe use in various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SMF52
  • Brand TFL
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Dia 2 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 5 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 2 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 6.2 mm
  • Flange Thickness 0.6 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Ball Qty 6
  • Ball Dia 0.8000 mm
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Open
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 29 lbf
  • Static Radial Load 8 lbf
  • Max Speed 76500 rpm
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.19 g
  • Price（$） 3.06
Metric Size Miniature Flanged Ball Bearings SMF52 dimension drawing
Download DWG Download PDF

Features

How Does SMF52 Bearing Achieve High-Speed Performance?

SMF52 Bearing is crafted from stainless steel, ensuring durability and resistance to corrosion.
Its compact design with a 2 mm bore and 5 mm outer diameter makes it ideal for precision applications.

The bearing supports dynamic radial loads up to 29 lbf, maintaining stability even at high speeds.
With a maximum speed of 76,500 rpm, it is suited for demanding, high-speed operations.

SMF52 Bearing’s stainless steel cage keeps the balls aligned, reducing friction and wear.
Its ABEC1 tolerance class ensures reliable performance in various radial load conditions.

Application

Common Applications of SMF52 Bearing
SMF52 Bearing is widely used in small precision instruments, such as dental drills and optical devices, where its compact size and high-speed capability are beneficial. The stainless steel construction ensures durability in sterilised environments.

In consumer electronics, SMF52 Bearing can be found in devices like miniature fans and handheld gadgets, providing smooth rotation with minimal noise. Its lightweight design makes it ideal for portable applications.

For automation systems, SMF52 Bearing supports delicate mechanisms in robotics, such as miniature joints or sensor arms. The open seal design allows for easy lubrication, extending its service life in continuous operation.

Medical equipment often relies on SMF52 Bearing for precise movements in lab instruments or diagnostic tools. The ABEC1 tolerance ensures consistent performance in critical applications.
