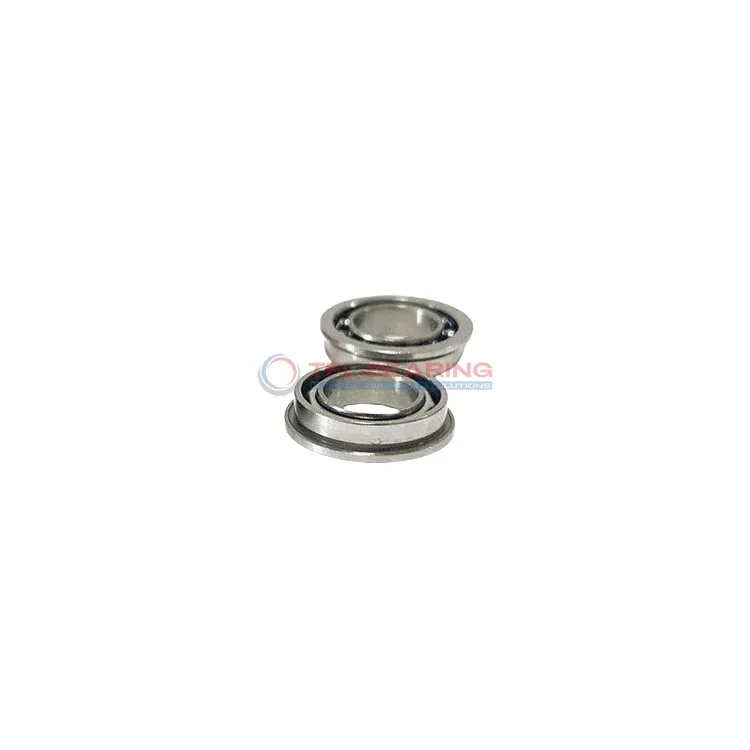

Metric Size Miniature Flanged Ball Bearings SMF115

Metric Size Miniature Flanged Ball Bearings SMF115

The SMF115 is a small radial ball bearing with a 5mm bore and 11mm outer diameter, crafted entirely from stainless steel for durability. It handles radial loads up to 123 lbf and spins at speeds up to 40,500 RPM, making it suitable for high-speed applications.

Its open design requires lubrication but allows for easy maintenance, while the stainless steel cage ensures smooth operation. The bearing works in temperatures from -30°C to 110°C, fitting various environments.

With a compact width of just 4mm and a lightweight 0.81g build, it’s ideal for small machinery or precision instruments. The flange adds stability, helping it stay securely in place during operation.

Compliant with RoHS and REACH standards, it’s a reliable choice for replacements or new designs. Perfect for uses like small motors or delicate devices where space and speed matter.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SMF115
  • Brand TFL
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Dia 5 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 11 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 4 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 12.6 mm
  • Flange Thickness 0.8 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Ball Qty 8
  • Ball Dia 1.5880 mm
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Open
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 123 lbf
  • Static Radial Load 46 lbf
  • Max Speed 40500 rpm
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.81 g
  • Price（$） 1.62
Metric Size Miniature Flanged Ball Bearings SMF115 dimension drawing
Download DWG Download PDF

Features

Performance Features of SMF115 Bearing

SMF115 Bearing is crafted from stainless steel, offering resistance to corrosion and wear.
Its open design allows for easy lubrication, ensuring smooth operation even at high speeds.

With a dynamic radial load capacity of 123 lbf, SMF115 Bearing handles moderate loads efficiently.
The precision ABEC1 tolerance ensures consistent performance in various applications.

SMF115 Bearing operates within a temperature range of -30° to 110°C, suitable for diverse environments.
Its compact size and lightweight design make it ideal for space-constrained applications.

Application

Where Is SMF115 Bearing Used?
SMF115 Bearing is commonly used in small electric motors, such as those found in drones or RC cars, thanks to its compact size and high-speed capabilities. The stainless steel construction ensures durability even in demanding conditions.

In consumer electronics, SMF115 Bearing fits well in devices like computer cooling fans, where smooth rotation and low noise are essential. Its open design allows for easy lubrication, extending the bearing’s lifespan.

For precision instruments, SMF115 Bearing’s tight radial clearance makes it suitable for applications like optical encoders or small measuring tools. The lightweight design also helps reduce overall device weight without compromising performance.
