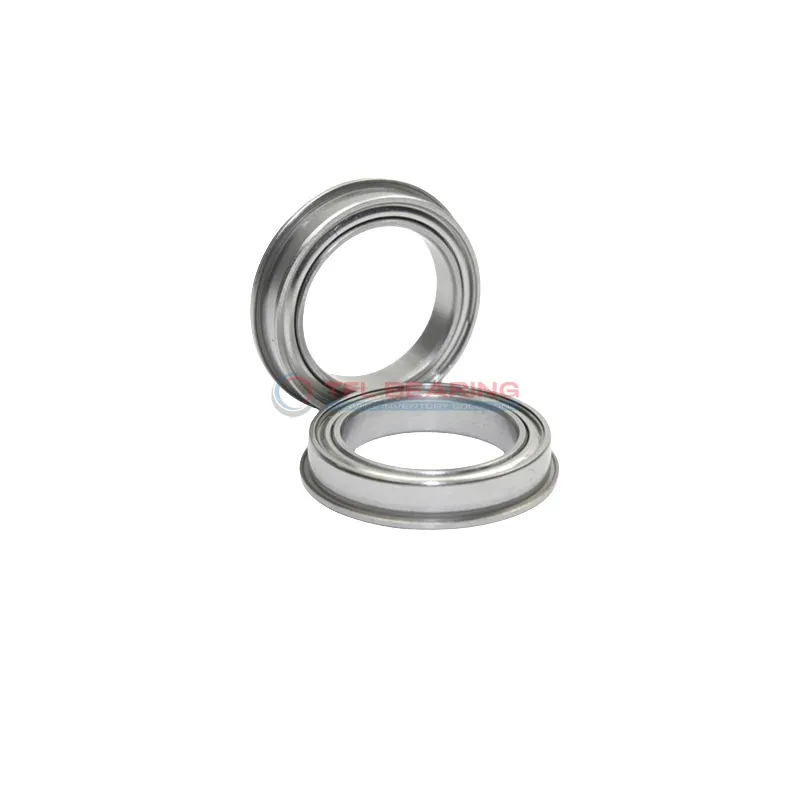

Metric Size Miniature Flanged Ball Bearings SF607zz

Metric Size Miniature Flanged Ball Bearings SF607zz

The SF607zz is a small, shielded ball bearing with a 7mm bore and 19mm outer diameter, crafted entirely from stainless steel for durability. It handles radial loads up to 402 lbf and spins smoothly at speeds up to 32,400 RPM.

Its shielded design keeps dust out while allowing easy lubrication, and the stainless steel cage ensures long-lasting performance. The bearing operates well in temperatures from -30°C to 110°C.

With a compact width of just 6mm and a lightweight 9.37g design, it fits neatly into tight spaces. Ideal for small motors, hobby projects, or precision instruments where reliability and speed matter.

Compliant with RoHS and REACH standards, it’s a safe choice for various applications. The flange adds extra stability during installation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SF607zz
  • Brand TFL
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Dia 7 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 22 mm
  • Flange Thickness 1.5 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Ball Qty 6
  • Ball Dia 3.5000 mm
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Shielded
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 402 lbf
  • Static Radial Load 145 lbf
  • Max Speed 32400 rpm
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Weight 9.37 g
  • Shield Material 300 Series Stainless Steel
  • Price（$） 1.62
Metric Size Miniature Flanged Ball Bearings SF607zz dimension drawing
Download DWG Download PDF

Features

Performance Features of SF607zz Bearing

SF607zz Bearing is crafted with stainless steel rings and balls, offering excellent resistance to corrosion.
Its shielded design helps keep contaminants out while retaining lubrication for smooth operation.

The bearing handles dynamic radial loads up to 402 lbf, making it suitable for various applications.
With a maximum speed of 32,400 rpm, it delivers reliable performance in high-speed scenarios.

SF607zz Bearing’s compact design, with a width of just 6 mm, fits well in space-constrained installations.
The stainless steel cage ensures durability and reduces wear, extending the bearing’s service life.

Application

Common Applications of SF607zz Bearing
SF607zz Bearing is widely used in small electric motors, such as those found in household appliances and cooling fans. Its shielded design helps keep dust out while maintaining smooth rotation.

In automation systems, SF607zz Bearing works well in compact robotic joints and precision gearboxes. The stainless steel construction ensures reliable performance even in humid environments.

For consumer electronics, SF607zz Bearing is a go-to choice for devices like printers and small power tools. Its lightweight design and high-speed capability make it ideal for space-constrained applications.

Medical devices like dental handpieces often rely on SF607zz Bearing for its quiet operation and consistent performance. The ABEC1 tolerance provides sufficient precision for most clinical equipment needs.
