Metric Size Miniature Flanged Ball Bearings SF606 2rs

Metric Size Miniature Flanged Ball Bearings SF606 2rs

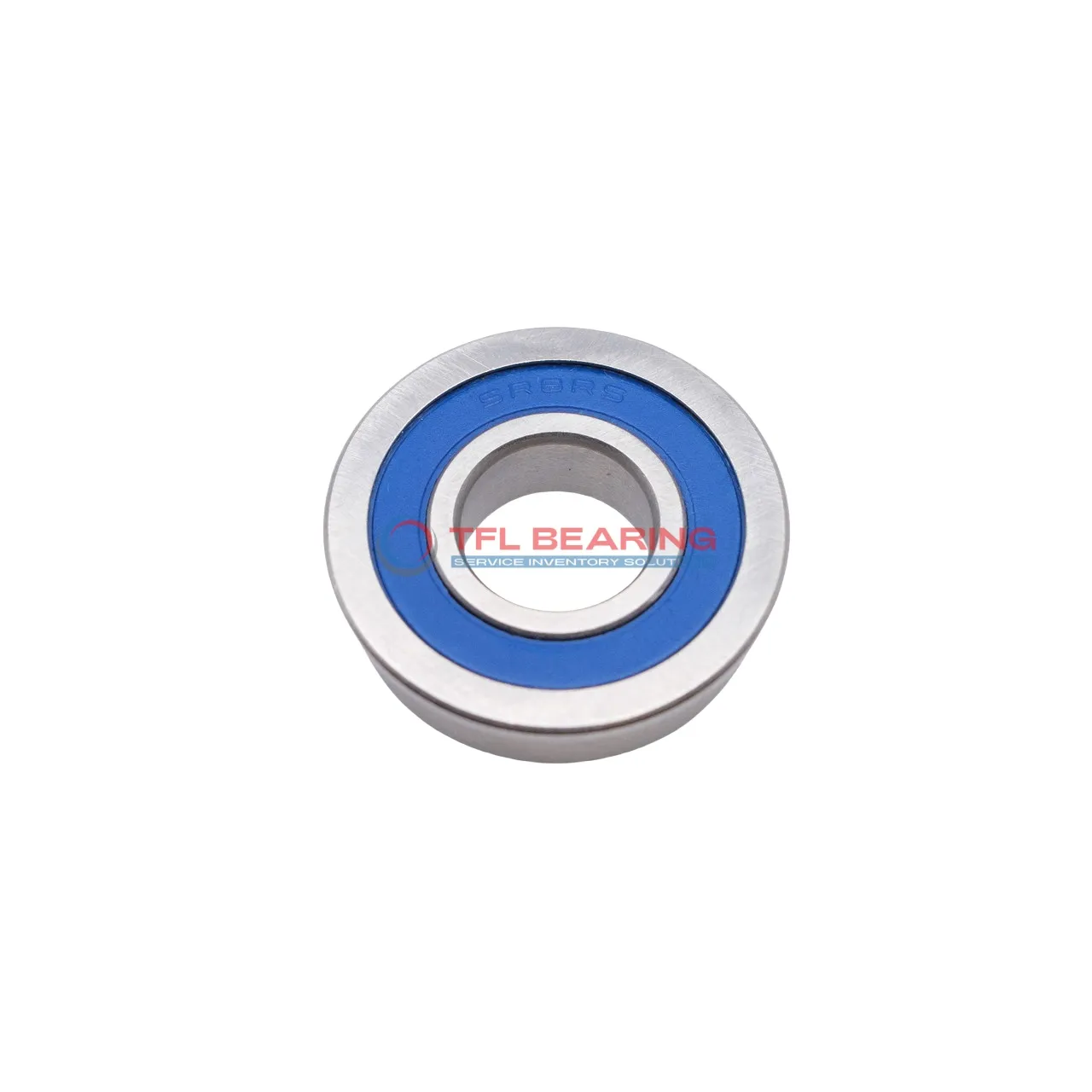

The SF606 2RS is a compact, sealed ball bearing with a 6mm bore and 17mm outer diameter, crafted entirely from stainless steel for durability. It handles radial loads up to 390 lbf and spins smoothly at speeds up to 34,200 RPM.

Its double rubber seals keep out dirt and moisture, while the stainless steel cage ensures quiet operation. The bearing comes pre-lubricated but can be easily maintained for long-term use.

With a lightweight design at just 7.42g, it’s ideal for small machinery or precision instruments. The flange adds extra stability, making it suitable for applications where space is limited.

Operating in temperatures from -30°C to 110°C, this bearing is compliant with RoHS and REACH standards. A reliable choice for hobbyist projects or light industrial equipment.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SF606 2rs
  • Brand TFL
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Dia 6 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 17 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 19 mm
  • Flange Thickness 1.2 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Ball Qty 6
  • Ball Dia 3.5000 mm
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Sealed
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 390 lbf
  • Static Radial Load 137 lbf
  • Max Speed 34200 rpm
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Weight 7.42 g
  • Shield Material Nitrile Rubber
  • Price（$） 1.62
Metric Size Miniature Flanged Ball Bearings SF606 2rs dimension drawing
Download DWG Download PDF

Features

How Does SF606 2rs Bearing Reduce Friction?

SF606 2rs Bearing features a sealed design with stainless steel rings and balls, ensuring smooth radial movement.
Its ABEC1 tolerance class and precise radial clearance of 0.002mm to 0.013mm contribute to low friction operation.

The stainless steel cage maintains ball alignment, reducing wear and enhancing efficiency.
With a maximum speed of 34,200 rpm, it is suitable for high-speed applications while maintaining reliability.

SF606 2rs Bearing’s nitrile rubber seals protect against contaminants, further improving performance.
Its compact size and lightweight design make it ideal for precision instruments and small machinery.

Application

Common Applications of SF606 2rs Bearing
SF606 2rs Bearing is widely used in small electric motors, such as those found in cooling fans or power tools, thanks to its compact size and sealed design. The stainless steel construction ensures it performs well in damp or dusty environments.

In automation systems, SF606 2rs Bearing is a reliable choice for lightweight robotic arms or 3D printers, where smooth rotation is essential. Its high-speed capability makes it suitable for precision movements.

For household appliances like blenders or printers, SF606 2rs Bearing offers quiet operation and long service life. The nitrile rubber seal helps keep contaminants out, reducing maintenance needs.

Medical devices, such as small pumps or lab equipment, benefit from SF606 2rs Bearing’s corrosion-resistant materials. The ABEC1 tolerance ensures consistent performance in sensitive applications.
