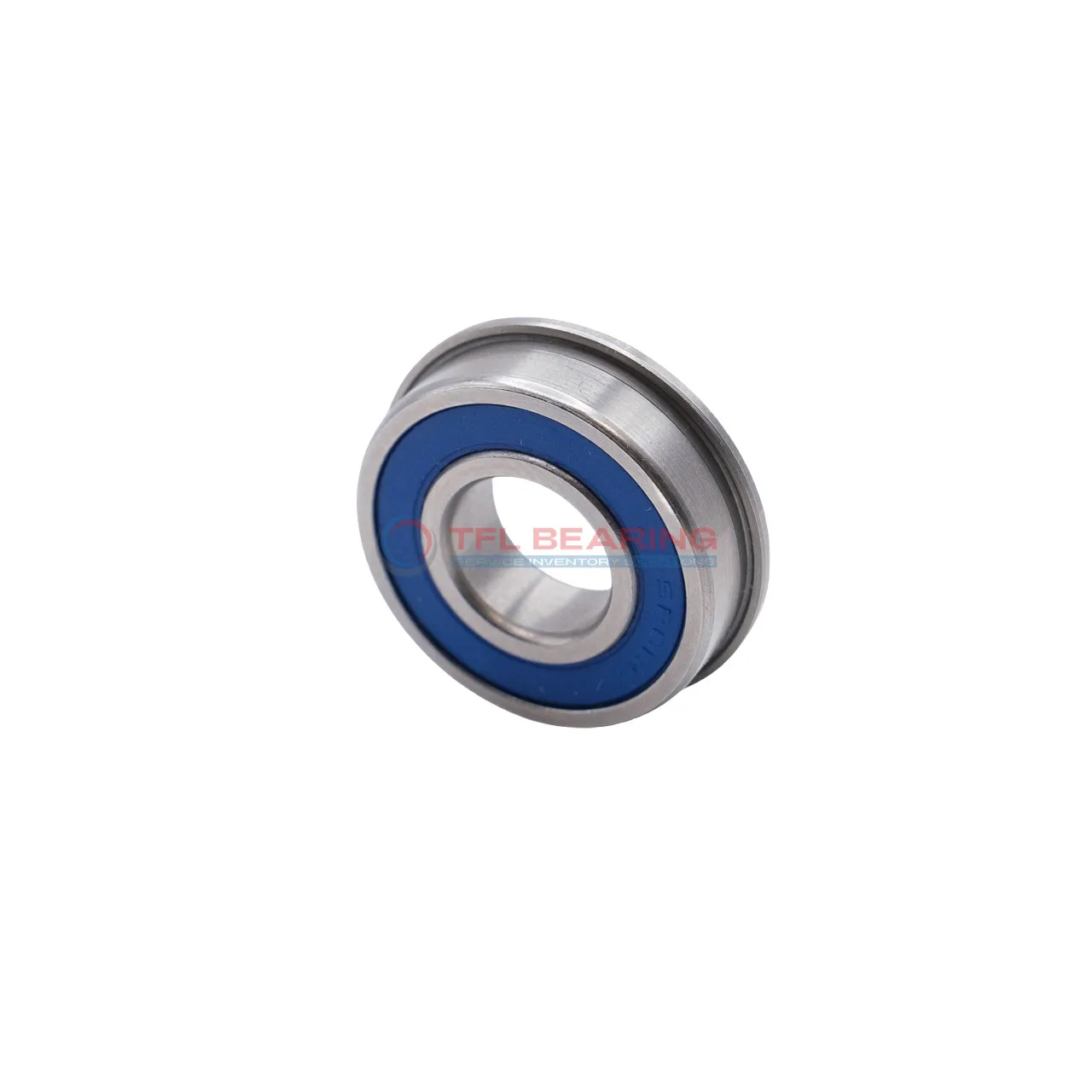

Metric Size Miniature Flanged Ball Bearings F699 2rs

The F699 2RS is a small, sealed ball bearing with a 9mm bore and 20mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 472 lbf and spins smoothly at speeds up to 34,000 RPM.

Its nitrile rubber seals keep dirt out and grease in, making it low-maintenance. The stainless steel cage ensures reliable performance, even under continuous use.

With a compact width of just 6mm and a lightweight design at 9.73g, it fits neatly into tight spaces. Ideal for small motors, power tools, or hobbyist projects where space and speed matter.

This bearing operates in temperatures from -30°C to 110°C and meets RoHS and REACH standards for safety. A practical choice for everyday applications needing smooth, long-lasting rotation.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number F699 2rs
Brand TFL
System of Measurement Metric
Bearing Type Ball
Bore Dia 9 mm
Bore Dia Tolerance -0.008mm to 0
Outer Dia 20 mm
Outer Dia Tolerance -0.008mm to 0
Width 6 mm
Width Tolerance -0.12mm to 0
Flange Outer Dia 23 mm
Flange Thickness 1.5 mm
Radial Clearance 0.002mm to 0.013mm
Ball Qty 8
Ball Dia 3.1750 mm
For Load Direction Radial
Construction Single Row
Inner Ring Type Standard
Seal Type Sealed
Tolerance Class ABEC1
Radial Clearance Trade No MC3
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Stainless Steel
Dynamic Radial Load 472 lbf
Static Radial Load 195 lbf
Max Speed 34000 rpm
Temperature Range -30° to 110 °C
Lubrication Required
RoHS Compliant
REACH Compliant
Weight 9.73 g
Shield Material Nitrile Rubber
Price（$） 1.35

Metric Size Miniature Flanged Ball Bearings F699 2rs dimension drawing

Download DWG Download PDF

Features

How Does F699 2rs Bearing Reduce Friction?

F699 2rs Bearing features a sealed design with nitrile rubber shields, preventing dust and moisture from entering.
Its chrome steel construction ensures smooth operation, reducing friction even at high speeds.
With a dynamic radial load capacity of 472 lbf, it handles demanding applications efficiently.
The stainless steel cage maintains ball alignment, enhancing durability and performance.

Application

Common Applications of F699 2rs Bearing
F699 2rs Bearing is a great fit for small electric motors, thanks to its compact size and sealed design. The chrome steel construction ensures it handles everyday wear without fuss.

In household appliances like blenders or mixers, F699 2rs Bearing keeps things running smoothly with minimal maintenance. Its sealed feature helps keep dust and grime out, extending its lifespan.

For hobbyist projects such as RC cars or drones, F699 2rs Bearing offers reliable performance at high speeds. The lightweight design and precision make it a popular choice among enthusiasts.

Where Is F699 2rs Bearing Used?
You’ll often find F699 2rs Bearing in office equipment like printers, where quiet operation is key. The sealed design also protects it from paper dust and debris.

In small machinery like conveyor belts, F699 2rs Bearing provides steady radial support. Its durability makes it a practical option for light industrial use.

Built for Versatility: F699 2rs Bearing
F699 2rs Bearing works well in fitness equipment, such as treadmills, where smooth rotation matters. The stainless steel cage adds extra resistance to wear over time.

For DIY tools like handheld drills, F699 2rs Bearing ensures consistent performance. Its compact size and sealed design make it a reliable pick for home workshops.
