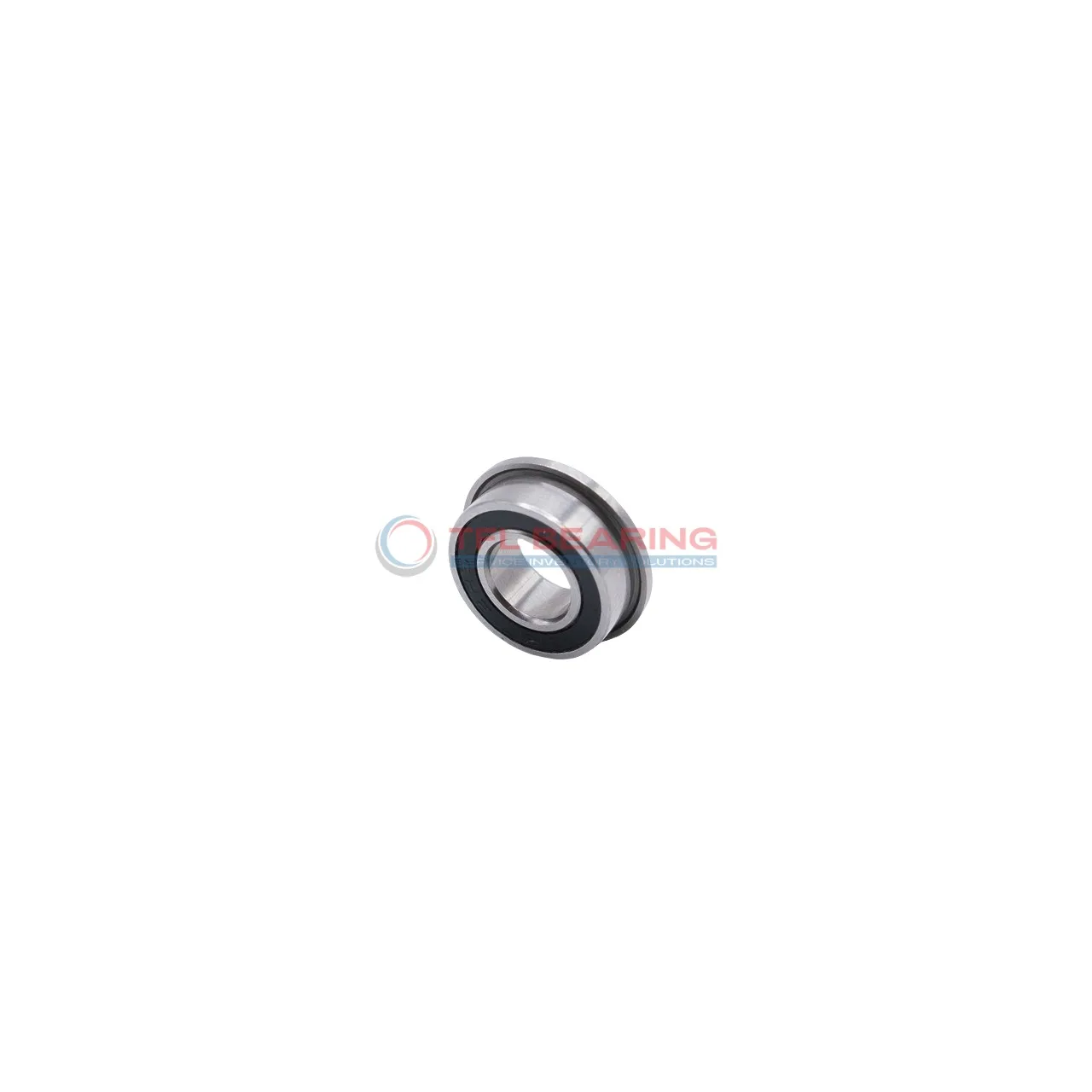

Metric Size Miniature Flanged Ball Bearings F694 2rs

Metric Size Miniature Flanged Ball Bearings F694 2rs

The F694 2rs is a small, sealed ball bearing with a 4mm bore and 11mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 183 lbf and spins at speeds up to 48,000 RPM, making it suitable for high-speed applications.

Its compact design, just 4mm wide, includes a flange for secure mounting and nitrile rubber seals to keep dirt out. The stainless steel cage ensures smooth operation and longevity.

This bearing is ideal for small devices like electric motors or precision instruments where space is limited. It requires lubrication and performs well in temperatures from -30°C to 110°C.

Weighing only 1.97g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a reliable choice for replacements or new builds.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number F694 2rs
  • Brand TFL
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Dia 4 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 11 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 4 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 12.5 mm
  • Flange Thickness 1 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Ball Qty 7
  • Ball Dia 2.0000 mm
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Sealed
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 183 lbf
  • Static Radial Load 63 lbf
  • Max Speed 48000 rpm
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.97 g
  • Shield Material Nitrile Rubber
  • Price（$） 1.35
Metric Size Miniature Flanged Ball Bearings F694 2rs dimension drawing
Download DWG Download PDF

Features

Why Choose F694 2rs Bearing for Precision Tasks?

F694 2rs Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and smooth operation in radial load applications.

With a dynamic radial load capacity of 183 lbf, F694 2rs Bearing handles demanding conditions effectively.
The stainless steel cage maintains ball alignment, reducing friction and extending bearing life.

F694 2rs Bearing operates at speeds up to 48,000 rpm, making it suitable for high-speed applications.
Its compact size and lightweight design allow for easy integration into precision instruments.

Application

Practical Applications of F694 2rs Bearing
F694 2rs Bearing is commonly used in small electric motors, such as those found in cooling fans or power tools, thanks to its compact size and sealed design. The chrome steel construction ensures durability even in high-speed operations.

Where Is F694 2rs Bearing Used?
In automation systems, F694 2rs Bearing fits well in robotic arms and 3D printers, where precision and low friction are key. Its sealed design helps keep out dust and debris, extending its lifespan.

Built for Versatility: F694 2rs Bearing
F694 2rs Bearing works smoothly in medical devices like dental drills, where reliability and hygiene are essential. The stainless steel cage adds extra resistance to wear and corrosion.

Light-Duty vs Heavy-Duty: Best Uses for F694 2rs Bearing
For light-duty applications, F694 2rs Bearing is ideal in small appliances like printers or handheld gadgets. Its high-speed capability makes it a reliable choice for consistent performance.
