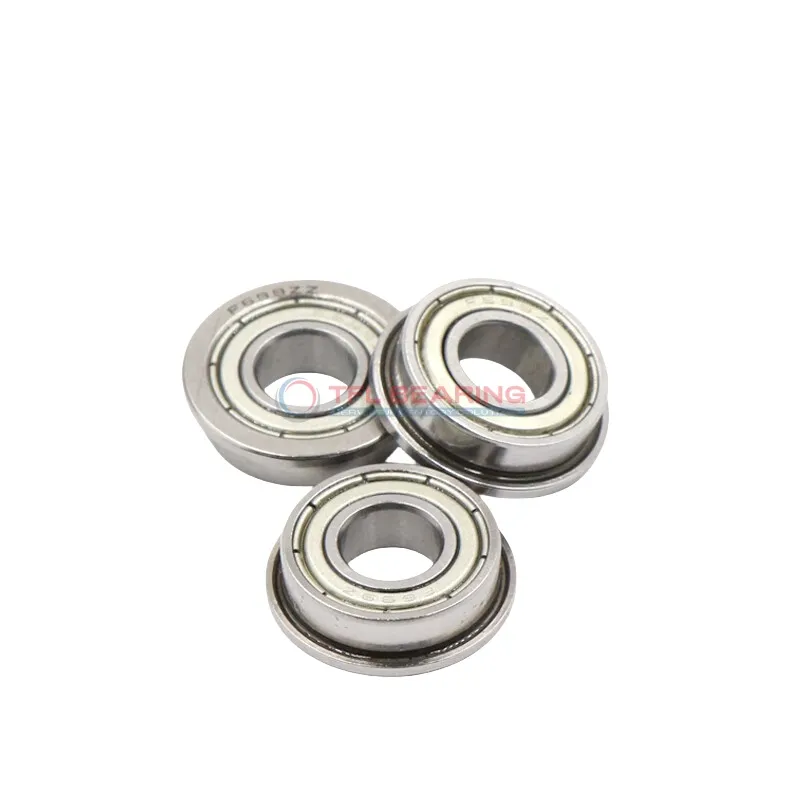

Metric Size Miniature Flanged Ball Bearings F635zz

Metric Size Miniature Flanged Ball Bearings F635zz

The F635zz is a shielded radial ball bearing with a 5mm bore and 19mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 447 lbf and spins smoothly at speeds up to 32000 RPM.

Its stainless steel shields keep out dust while allowing easy lubrication, and the stainless steel cage ensures durability. The bearing operates well in temperatures from -30°C to 110°C.

With a compact width of 6mm and a flange for secure mounting, it’s ideal for small motors or precision instruments. Compliant with RoHS and REACH standards, it’s a reliable choice for light-duty applications.

Weighing just 9.65g, it’s lightweight yet robust for its size, making it easy to handle and install.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number F635zz
  • Brand TFL
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Dia 5 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 22 mm
  • Flange Thickness 1.5 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Ball Qty 6
  • Ball Dia 3.5000 mm
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Shielded
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 447 lbf
  • Static Radial Load 161 lbf
  • Max Speed 32000 rpm
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Weight 9.65 g
  • Shield Material 300 Series Stainless Steel
  • Price（$） 1.35
Metric Size Miniature Flanged Ball Bearings F635zz dimension drawing
Download DWG Download PDF

Features

How Does F635zz Bearing Reduce Friction?

F635zz Bearing features a shielded design with stainless steel shields, protecting against dust and debris.
Its chrome steel construction ensures smooth operation, reducing friction even at high speeds.

The precision-engineered cage keeps the six balls aligned, minimising wear and improving efficiency.
With a maximum speed of 32,000 rpm, it is ideal for high-performance applications.

F635zz Bearing’s radial clearance of 0.002mm to 0.013mm allows for precise and quiet operation.
The chrome steel balls and rings provide durability, making it suitable for long-term use.

Application

Common Applications of F635zz Bearing
F635zz Bearing is widely used in small electric motors, such as those found in cooling fans and power tools. Its shielded design helps keep contaminants out while maintaining smooth rotation.

In automation systems, F635zz Bearing fits well in compact robotic arms and 3D printers, where its high-speed capability is beneficial. The small size and lightweight make it ideal for precision movements.

For consumer electronics like printers and small appliances, F635zz Bearing offers reliable performance with minimal maintenance. The chrome steel construction ensures durability even with frequent use.

Medical devices such as dental tools and lab equipment often use F635zz Bearing for its consistent operation. The stainless steel cage adds extra resistance to corrosion in sterile environments.
