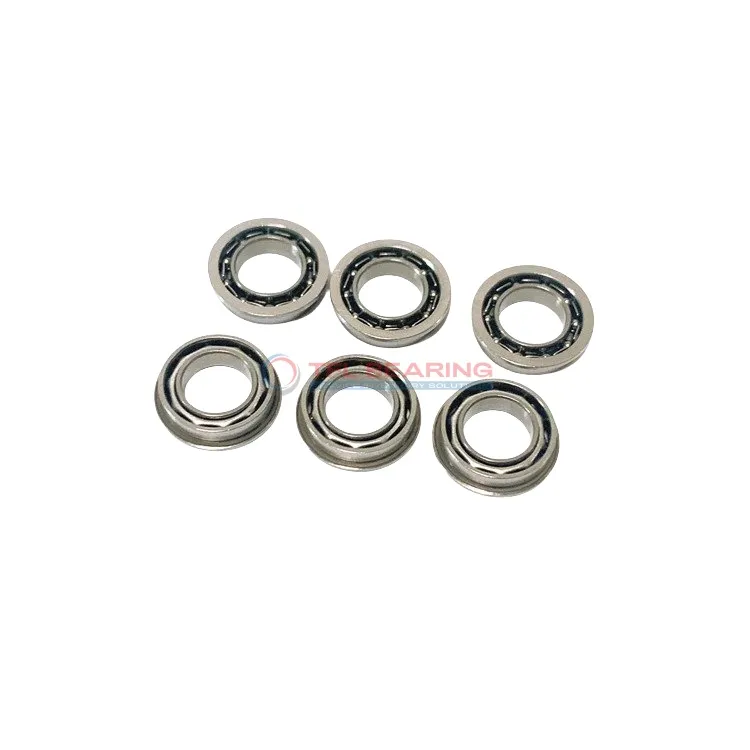

Metric Size Miniature Flanged Ball Bearings F602x

Metric Size Miniature Flanged Ball Bearings F602x

The F602x is a compact radial ball bearing with a 2.5mm bore and 8mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 106 lbf and can spin at speeds up to 60,000 RPM, making it suitable for high-speed applications.

Its open design allows for easy lubrication, while the stainless steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

With a lightweight build of just 0.72g, it’s ideal for small devices like precision instruments or miniature motors. Compliant with RoHS and REACH standards, it’s a safe and reliable choice for various uses.

The flange design helps keep the bearing securely in place, adding stability during operation. Perfect for applications where space is limited but performance is key.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number F602x
  • Brand TFL
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Dia 2.5 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 8 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 2.8 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 9.5 mm
  • Flange Thickness 0.7 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Ball Qty 6
  • Ball Dia 1.5880 mm
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Open
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 106 lbf
  • Static Radial Load 32 lbf
  • Max Speed 60000 rpm
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.72 g
  • Price（$） 2.35
Metric Size Miniature Flanged Ball Bearings F602x dimension drawing
Download DWG Download PDF

Features

Why Choose F602x Bearing for Precision Tasks?

F602x Bearing is crafted with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 106 lbf makes it suitable for high-speed applications.

The stainless steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 60,000 rpm, it delivers reliable performance in compact spaces.

F602x Bearing operates efficiently within a temperature range of -30° to 110°C.
Its open design simplifies lubrication, ensuring smooth operation over time.

Application

Common Applications of F602x Bearing
F602x Bearing is widely used in small electric motors, such as those found in cooling fans or handheld devices, thanks to its compact size and high-speed capability. The open design simplifies lubrication, ensuring smooth operation over time.

In robotics, F602x Bearing fits neatly into lightweight joints or miniature gearboxes, where precision and low friction are key. Its stainless steel cage helps maintain performance even with frequent directional changes.

For medical instruments like dental drills or lab equipment, F602x Bearing’s chrome steel construction offers reliable, contamination-free rotation. The ABEC1 tolerance ensures consistent accuracy in sensitive applications.

Consumer electronics, particularly miniature gadgets, benefit from F602x Bearing’s minimal weight and quiet operation. Its 60,000 rpm rating makes it suitable for high-speed components like micro fans or tiny drives.
