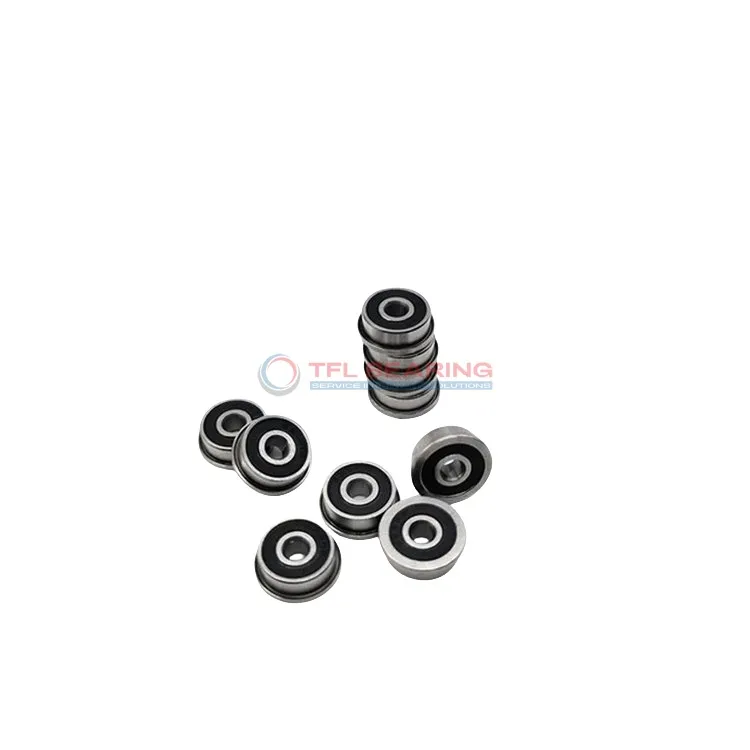

Metric Size Miniature Flanged Ball Bearings F602x 2rs

The F602x 2rs is a small, sealed radial ball bearing with a 2.5mm bore and 8mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 74 lbf and spins smoothly at speeds up to 60,000 RPM.

Its double rubber seals keep dirt out and grease in, making it low-maintenance for long-term use. The stainless steel cage ensures even load distribution, while the compact 4mm width fits tight spaces.

This bearing is ideal for small motors, precision instruments, or hobbyist projects where high speeds and reliability are needed. It operates in temperatures from -30°C to 110°C and meets RoHS and REACH standards.

Weighing just 0.72g, it’s lightweight yet robust for its size. The nitrile rubber seals add extra protection in dusty or damp environments.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number F602x 2rs
Brand TFL
System of Measurement Metric
Bearing Type Ball
Bore Dia 2.5 mm
Bore Dia Tolerance -0.008mm to 0
Outer Dia 8 mm
Outer Dia Tolerance -0.008mm to 0
Width 4 mm
Width Tolerance -0.12mm to 0
Flange Outer Dia 9.5 mm
Flange Thickness 0.9 mm
Radial Clearance 0.002mm to 0.013mm
Ball Qty 6
Ball Dia 1.5880 mm
For Load Direction Radial
Construction Single Row
Inner Ring Type Standard
Seal Type Sealed
Tolerance Class ABEC1
Radial Clearance Trade No MC3
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Stainless Steel
Dynamic Radial Load 74 lbf
Static Radial Load 23 lbf
Max Speed 60000 rpm
Temperature Range -30° to 110 °C
Lubrication Required
RoHS Compliant
REACH Compliant
Weight 0.72 g
Shield Material Nitrile Rubber
Price（$） 2.35

Metric Size Miniature Flanged Ball Bearings F602x 2rs dimension drawing

Download DWG Download PDF

Features

How Does F602x 2rs Bearing Reduce Friction?

F602x 2rs Bearing features a sealed design with nitrile rubber shields, keeping contaminants out and lubrication in.
Its chrome steel construction ensures smooth operation, even at high speeds up to 60,000 rpm.

The stainless steel cage maintains ball alignment, reducing friction and wear.
With a dynamic radial load capacity of 74 lbf, it delivers reliable performance in compact applications.

F602x 2rs Bearing operates efficiently within a temperature range of -30° to 110°C.
Its precision engineering makes it suitable for small, high-speed devices requiring minimal maintenance.

Application

Common Applications of F602x 2rs Bearing
F602x 2rs Bearing is widely used in small electric motors, such as those found in cooling fans or miniature appliances. Its compact size and sealed design make it ideal for environments where dust or moisture might be an issue.

In consumer electronics, F602x 2rs Bearing ensures smooth operation in devices like printers or handheld tools. The high-speed capability allows for reliable performance even with frequent use.

For hobbyist projects, F602x 2rs Bearing is a popular choice due to its affordability and ease of installation. The chrome steel construction provides durability without adding unnecessary weight.

Medical devices like small pumps or lab equipment often rely on F602x 2rs Bearing for precise movement. The nitrile rubber seal helps maintain cleanliness in sensitive applications.

Automotive accessories, such as dashboard components or small actuators, benefit from F602x 2rs Bearing’s consistent performance. Its metric sizing ensures compatibility with a variety of international designs.
