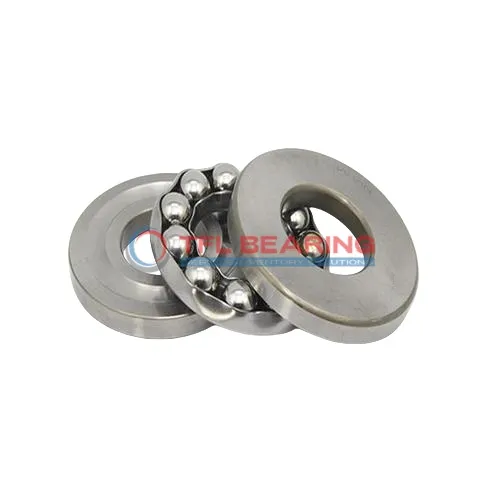

Metric Single Direction Thrust Ball Bearing 59176 F

The 59176 F is a large single-direction thrust ball bearing with a 380mm bore and 460mm outer diameter, crafted from sturdy 52100 chrome steel. It supports heavy thrust loads up to 57375 lbf and operates at speeds up to 1200 RPM.

Its open design simplifies lubrication, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial presses or large machinery where high thrust loads are present.

Weighing 15kg, it’s built for robust performance. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 59176 F
Brand TFL
Interchangeable SKF
System of Measurement Metric
Bearing Type Ball
For Load Direction Thrust
Seal Type Open
Bore Dia 380 mm
Bore Dia Tolerance -0.04mm to 0
Outer Dia 460 mm
Outer Dia Tolerance -0.045mm to 0
Outer Dia Shaft Washer 457 mm
Width 48 mm
Width Tolerance +0.04mm to -0.5mm
Inner Dia Housing Washer 383 mm
Chamfer Dimension 2 mm
Ring Material 52100 Chrome Steel
Ball Material 52100 Chrome Steel
Cage Material Stainless Steel
Dynamic Thrust Load 57375 lbf
Static Thrust Load 344250 lbf
Temperature Range -30° to 110 °C
RoHS Compliant
REACH Compliant
Max Speed 1200 rpm
Weight 15 kg

Metric Single Direction Thrust Ball Bearing 59176 F dimension drawing

Download DWG Download PDF

Features

How Does 59176 F Bearing Handle Heavy Loads?

59176 F Bearing is built with 52100 chrome steel rings and balls, offering robust resistance to high thrust loads.
Its dynamic thrust load capacity reaches 57375 lbf, making it suitable for heavy-duty applications.
The stainless steel cage ensures proper ball alignment, reducing friction and wear.
With a maximum speed of 1,200 rpm, it delivers reliable performance under demanding conditions.

Application

Industrial Uses of 59176 F Bearing
59176 F Bearing is commonly used in heavy machinery like hydraulic presses and large conveyor systems, where its high thrust load capacity handles demanding axial forces. The open seal design simplifies lubrication, ideal for environments with frequent maintenance needs.

In wind turbine applications, 59176 F Bearing supports the main shaft, ensuring stable rotation under varying wind loads. Its chrome steel construction offers long-term durability in outdoor conditions.

For industrial pumps, 59176 F Bearing’s precise tolerances help maintain alignment under continuous operation. The stainless steel cage reduces friction, extending service life in high-pressure systems.

Where Is 59176 F Bearing Used?
59176 F Bearing fits well in mining equipment, particularly in crushers and screens where shock loads are common. Its robust design copes well with abrasive dust and heavy vibrations.

In marine applications, 59176 F Bearing handles thrust loads in propeller shafts, resisting corrosion thanks to its chrome steel rings. The metric sizing ensures compatibility with international vessel designs.

Built for Heavy-Duty Use: 59176 F Bearing
59176 F Bearing excels in steel rolling mills, managing extreme axial forces during metal forming. The wide temperature range allows consistent performance in hot or cold working conditions.

For construction cranes, 59176 F Bearing provides reliable support in slewing rings, where smooth rotation is critical. Its high static load rating ensures safety under heavy lifting loads.

Automotive vs Aerospace: Applications of 59176 F Bearing
In automotive testing rigs, 59176 F Bearing endures repetitive thrust loads during component validation. Its precision tolerances help maintain accurate measurement results.

For aerospace ground equipment, 59176 F Bearing operates in landing gear simulators, where reliability is key. The lightweight stainless steel cage reduces overall system weight without sacrificing strength.
