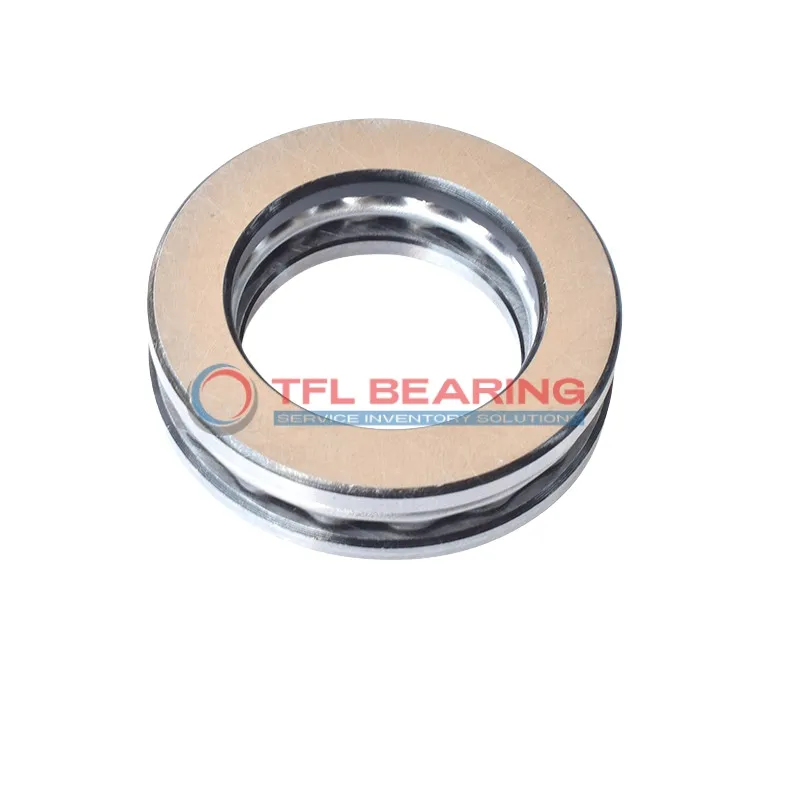

Metric Single Direction Thrust Ball Bearing 53228

Metric Single Direction Thrust Ball Bearing 53228

The 53228 is a single-direction thrust ball bearing with a 140mm bore and 200mm outer diameter, crafted from tough 52100 chrome steel. It manages thrust loads up to 42750 lbf and operates smoothly at speeds up to 1800 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty applications like industrial presses or large gear systems where high thrust loads are expected.

Weighing 5.45kg, it’s built to handle demanding conditions while meeting RoHS and REACH standards for safety.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 53228
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Thrust
  • Seal Type Open
  • Bore Dia 140 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Outer Dia Shaft Washer 197 mm
  • Width 48.6 mm
  • Width Tolerance +0.025mm to -0.4mm
  • Inner Dia Housing Washer 143 mm
  • Chamfer Dimension 1 mm
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Thrust Load 42750 lbf
  • Static Thrust Load 139500 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 1800 rpm
  • Weight 5.45 kg
Metric Single Direction Thrust Ball Bearing 53228 dimension drawing
Download DWG Download PDF

Features

Why Choose 53228 Bearing for Precision Tasks?

53228 Bearing is crafted from 52100 chrome steel, ensuring high precision and durability for thrust applications.
Its dynamic thrust load capacity of 42,750 lbf makes it suitable for demanding industrial environments.

The stainless steel cage maintains ball alignment, reducing friction and enhancing performance.
With a maximum speed of 1,800 rpm, it balances efficiency and reliability.

53228 Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design simplifies maintenance while ensuring consistent performance.

Application

Industrial Uses of 53228 Bearing
53228 Bearing is commonly used in heavy machinery, such as hydraulic presses and large gearboxes, where it handles significant axial loads. Its robust chrome steel construction ensures durability even in demanding industrial settings.

Where Is 53228 Bearing Used?
In automotive applications, 53228 Bearing supports components like heavy-duty transmissions and steering systems. The open design allows for easy lubrication, extending its service life in high-load scenarios.

Built for Heavy-Duty Use: 53228 Bearing
For wind turbines and other large-scale equipment, 53228 Bearing provides reliable performance under continuous thrust loads. The stainless steel cage adds extra resistance to wear and corrosion.

Automotive vs Aerospace: Applications of 53228 Bearing
In automotive systems, 53228 Bearing is ideal for transmissions, while in aerospace, it suits auxiliary power units. Its high static thrust load capacity makes it versatile across industries.

Key Fields for 53228 Bearing
53228 Bearing is a go-to choice for construction equipment, such as cranes and excavators. The metric sizing ensures compatibility with a wide range of machinery, simplifying replacements.
