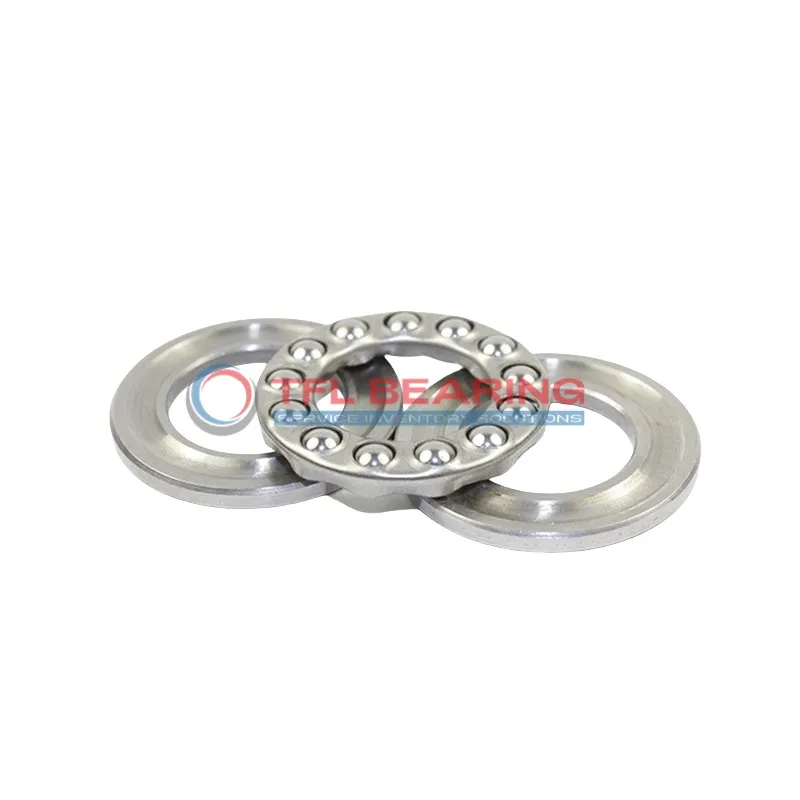

Metric Single Direction Thrust Ball Bearing 53226

Metric Single Direction Thrust Ball Bearing 53226

The 53226 is a metric single-direction thrust ball bearing with a 130mm bore and 190mm outer diameter, crafted from sturdy 52100 chrome steel. It manages thrust loads up to 41850 lbf and operates smoothly at speeds up to 1800 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty applications like industrial presses or large machinery where high thrust loads are present.

Weighing 4.85kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 53226
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Thrust
  • Seal Type Open
  • Bore Dia 130 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 190 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Outer Dia Shaft Washer 187 mm
  • Width 47.9 mm
  • Width Tolerance +0.025mm to -0.4mm
  • Inner Dia Housing Washer 133 mm
  • Chamfer Dimension 1.5 mm
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Thrust Load 41850 lbf
  • Static Thrust Load 131625 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 1800 rpm
  • Weight 4.85 kg
Metric Single Direction Thrust Ball Bearing 53226 dimension drawing
Download DWG Download PDF

Features

Why Choose 53226 Bearing for Precision Tasks?

53226 Bearing is crafted from 52100 chrome steel, offering high resistance to wear and precise operation.
Its dynamic thrust load capacity of 41850 lbf ensures reliable performance in heavy-duty applications.

The stainless steel cage maintains ball alignment, reducing friction and extending service life.
With a maximum speed of 1,800 rpm, it balances durability and efficiency in demanding conditions.

53226 Bearing operates smoothly within a temperature range of -30° to 110°C, adapting to various environments.
Its open design simplifies maintenance, making it a practical choice for industrial use.

Application

Industrial Uses of 53226 Bearing
53226 Bearing is commonly used in heavy machinery like hydraulic presses and large gearboxes, where its high thrust load capacity handles axial forces effectively. The open design simplifies lubrication, ideal for industrial settings with frequent maintenance needs.

In automotive applications, 53226 Bearing supports heavy-duty components such as truck transmissions and clutch systems. Its chrome steel construction ensures durability under constant stress, while the metric sizing fits standard European vehicle designs.

For wind turbine systems, 53226 Bearing’s robust build manages axial loads in yaw and pitch control mechanisms. The stainless steel cage adds corrosion resistance, crucial for outdoor installations exposed to harsh weather conditions.

Essential Roles of 53226 Bearing
53226 Bearing plays a key role in construction equipment like cranes, where its static thrust load capacity stabilises heavy lifting operations. The wide temperature range (-30° to 110°C) ensures reliability in varying site conditions.

In marine applications, 53226 Bearing withstands saltwater exposure in propeller shaft assemblies. Its 52100 chrome steel rings and balls resist wear, while the open seal allows easy flushing to remove debris.
